Sony cfd 567 l service manual

This is the 37 pages manual for sony cfd 567 l service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 37
sony cfd 567 l service manual

Extracted text from sony cfd 567 l service manual (Ocr-read)


Page 1

fisrnwcr MANUilL

-minv... mite... w";

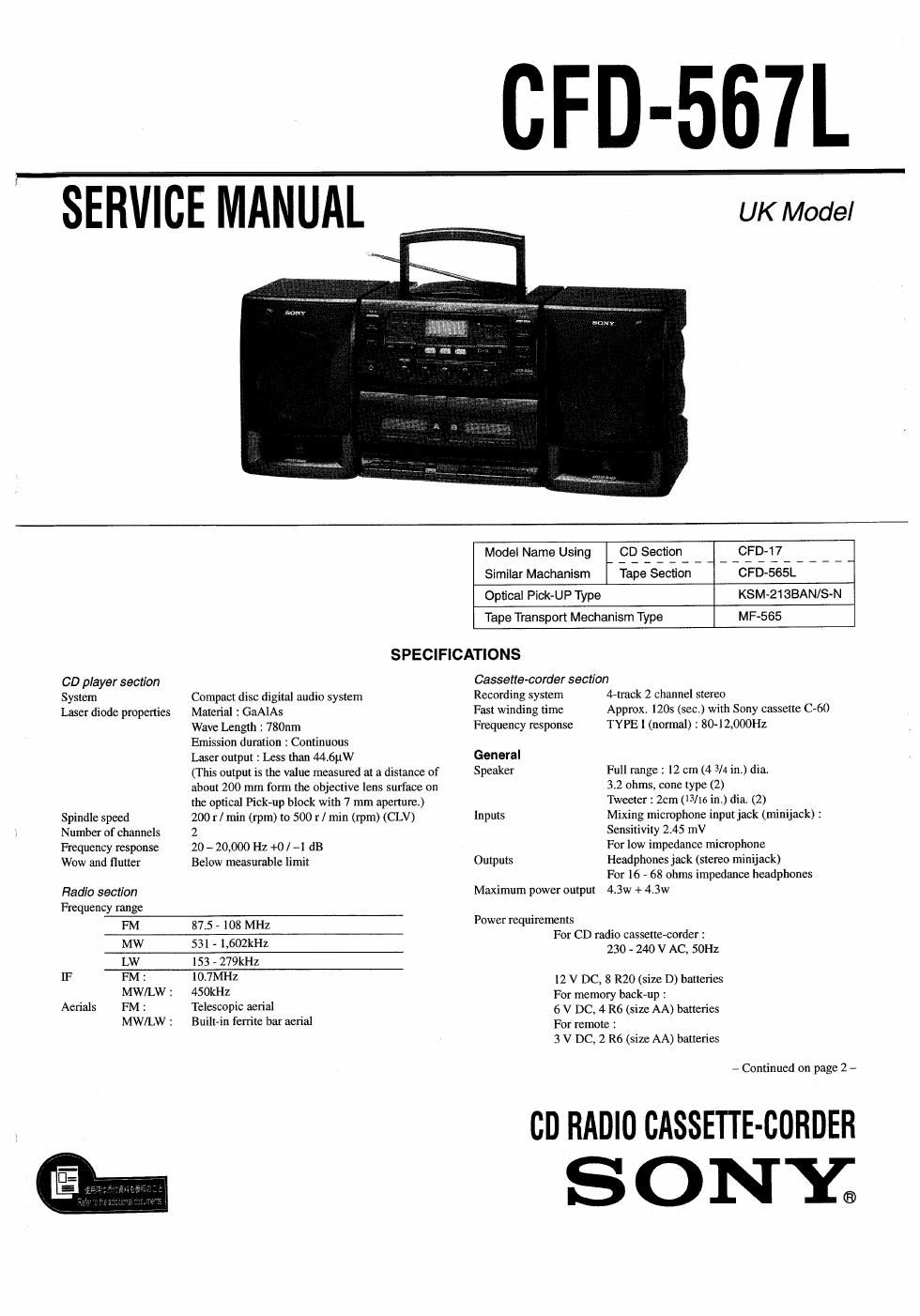

CFD-567L

UK Model

CD player section
System
Laser diode properties

Spindle speed
Number of channels
Frequency response
Wow and flutter

Model Name Using
Similar Mechanism

CD Section

Tape Section

Optical Pick-UP Type

KSM-21SBAN/S-N

Tape Transport Mechanism Type

M F-565

SPECIFICATIONS

Cassette-comer section

Compact disc digital audio system

Material : GaAlAs

Wave Length : 780nm

Emission duration : Continuous

Laser output : Less than 44.6ttW

(This output is the value measured at a dismnce of
about 200 mm form the objective lens surface on
the optical Pickup block with 7 mm aperture.)
200 r / min (rpm) to 500 r / min (rpm) (CLV)

2

20 - 20,000 Hz +0 / -1 dB

Below measurable limit

Radio section
Frequency range
FM 87.5 - 108 MHz
MW 531 - 1,602kHz
LW 153 - 279kHz
IF FM : 10.7MH2
MW/LW : 450kHz
Aerials FM : Telescopic aerial
MW/LW : Built-in ferrite bar aerial

Recording system
Fast winding time
Frequency response
General

Speaker

Inputs

Outputs
Maximum power output

Power requirements

4-track 2 channel stereo
Approx. 1205 (see) with Sony cassette C~60
TYPE I (normal) : 804 2,000Hz

Full range: 12 cm (4 3/4 in.) dia.

3.2 ohms, cone type (2)

Tweeter: 2cm (13/16 in.) dia. (2)

Mixing microphone input jack (minijaek) :
Sensitivity 2.45 mV

For low impedance microphone
Headphones jack (stereo minijack)

For 16 - 68 ohms impedance headphones
4.3w + 4.3w

For CD radio cassette-corder :

12VDC,

230 ~ 240 V AC, SOHZ

8 R20 (sine D) batteries

For memory back-up :

6 V DC, 4 R6 (size AA) batteries
For remote :

3 V DC, 2 R6 (size AA) batteries

7 Continued on page 2 -

CD RADIO CASSETTE-BORDER
