sony cfd 560 service manual

Extracted text from sony cfd 560 service manual (Ocr-read)

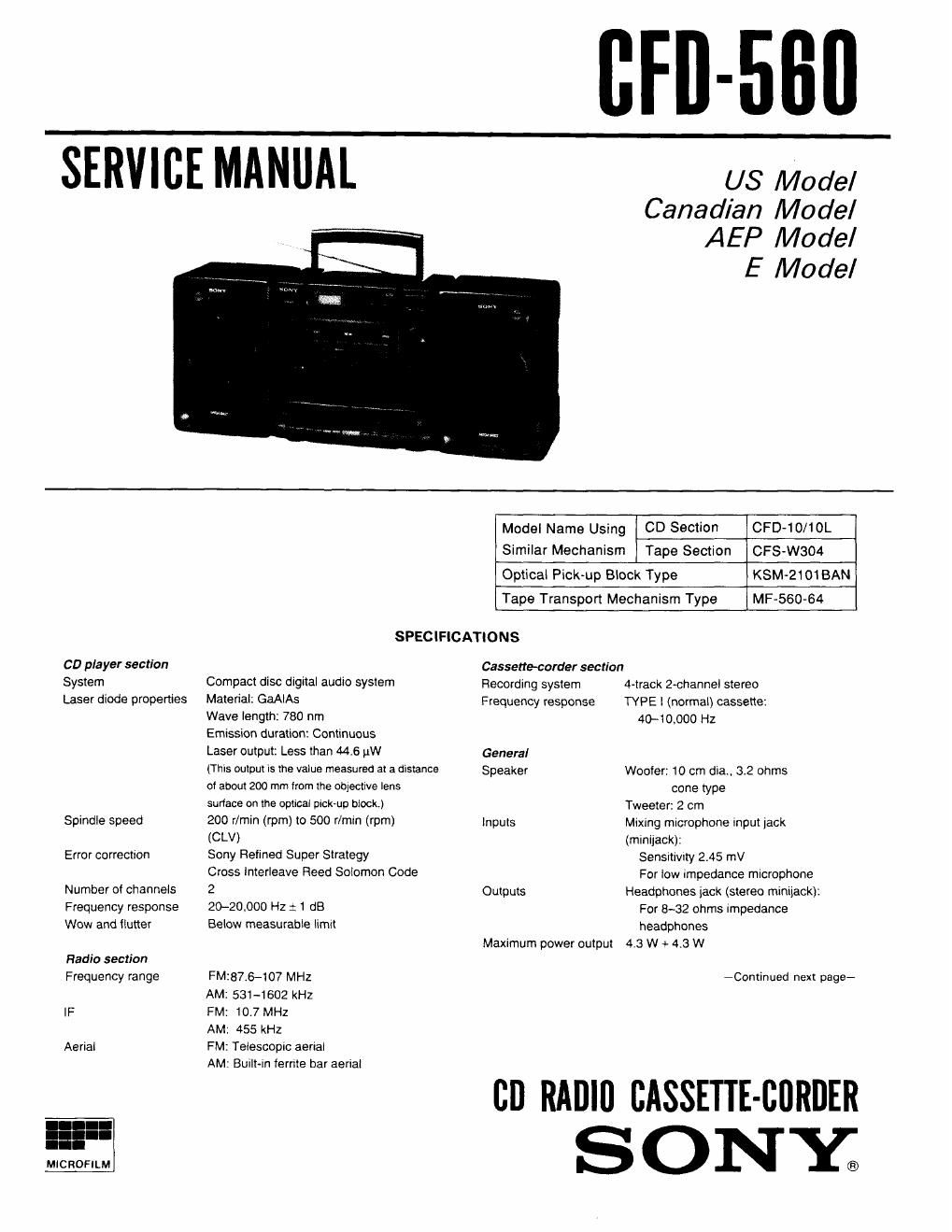

Page 1

SERVICE MANUAL

BFfl-Eflfl

US Model
Canadian Model
AEP Model

E Model

Model Name Using CD Section CFD-10l1OL
Similar Mechanism Tape Section CFS-W304
Optical Pick~up Block Type KSM-ZtotBAN
Tape Transport Mechanism Type MF~560~64
SPECIFICATIONS
CD player section Cassette-comer section
System Compact disc digital audio system Recording system 4-track 2-channel stereo

Laser diode properties

Spindle speed

Error correction
Number of channels
Frequency response

Wow and flutter

Flam'o section
Frequency range

IF

Aerial

MICROFILM

Material: GaAIAs

Wave length: 780 nm

Emission duration: Continuous

Laser output: Less than 44.6 uw

(This output is the value measured at a distance
of about 200 mm tram the obiective lens
surface on the optical pick~up block.)

200 r/min (rpm) to 500 r/mm (rpm)
(CLV)

Sony Refined Super Strategy

Cross lnterleave Reed Solomon Code
2

20-20000 Hz : 1 dB

Below measurable limit

FM:87.6-107 MHz

AM: 531-1602 kHz

FM: 10.7 MHz

AM: 455 kHz

FM: Telescopic aerial

AM; Builtvin ferrite bar aerial

Frequency response

General
Speaker

Inputs

Outputs

Maxtmum power output

CI] RADIll

TYPE l (normal) cassette:
4040.000 Hz

Woofer: 10 cm die, 3.2 ohms
cone type
Tweeter: 2 cm
Mixmg microphone input jack
(minilack):
Sensitivity 2.45 mv
For low impedance microphone
Headphones lack (stereo minijack):
For 8-32 ohms impedance
headphones
4.3 W + 4.3 W

7Continued next page-

otssmt-cunnm
ONY;

Page 2

Power requirements 220-230 V AC, 50 Hz

DC 12 V, 8 R20 (size D) batteries
Power consumption AC 27 W

TABLE OF CONTENTS

Battery life For CD radio cassette-corder: _5¢CU'.0" IL? 133.6
FM recording Tape playback CD playback
Sony SUM-1 (NS) approx. 11 h approx 6?: approx 4h SERVICING NOTES .
Sony Alkaline AMt approx. 16 h approx. 10 in approx 5 h 1 - GENERAL
2. MECHANICAL ADJUSTMENTS -------------------------- 7
Dimensions Approx, 678 x 288.3 x 217 mm (w/h/d) 3_ ELECTLICAL ADJUSTMENTS .............................. 7
incl. projecting pans
Mass 7.6 kg (incL batteries) 4' DIAGRAIS
Supplied accessones Mains lead (1) 4-]. IC Pm Function Description - r 14
Remote commander (RMT<6560) (1) 42 3'0 Diagm 15
Design and spectfications subject to change without notice. 4'3 Semiconductor Lead L3Y°5' 17
4-4i Printed Wiring Boards -MAIN Seclion- ~18
Note 4-5. Schematic Diagram -MAIN Section- ~21
This appliance conforms with EEC Directive 87/308/EEC regarding 4-6. Schematic Diagram -CD Section- '25
Interference suppressron. 4_7' Printed Wiring Boards -CD Section- .................. 29
Optional accessories 5- EXPLODED VIEWS
Sony DYNAMlc MICROPHONE series 5-1. Rear Cabinet Block Section ----------------------------------- 32
Sony MDR stereo headphone series 5-2. From Cabinet Block Section - ~33

5-3. CD Unit Block Section -
5A4, Mechanism Block Section (1) (Deck A)
5-5, Mechanism Block Section (2) (Deck A)
5-6 Mechanism Block Section (3) (Deck B)
5-7. Mechanism Block Section (4) (Deck B)
5-8i Optical Pickup Block Section

'34
'35
-36
'37
'38
39
40

6. ELECTRICAL PARTS LIST --------------------------------- 41

5.9, Speaker Block Section

This Compact Disc player is classified as
cuss r LASER Pnooucr 3 CLASS 1 LASER product.

LUOKAN i 5mg; The CLASS 1 LASER PRODUCT label is
KLASS 1 LASERPPR located on the bottom exterior.

MODEL IDENTIFICATION

US model: Carved on rear cabinet
Except US model: Model number label

I
SONY
MODEL Moi CFD-560

CD RADIO CASSETTE-CORDER
SAFETY»RELATED COMPONENT WARNING
COMPONENTS IDENTIFIED 8V MARK A 0R DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB

LISHED BV SONY.

ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE!

LES COMPOSANTS IDENTIFIES PAR UNE MAROUE A
SUR LES DIAGRAMMES SCHEMATIOUES ET LA LISTE
DES PIECES SONT CRITIQUES POUR LA SECURITE

US modal: AC: 120V 60 Hz 25 W
DE FONCTIONNEMENT. NEREMPLACER CES COMv Canadian,Emodel: AC: 120V 60 Hz 27W
POSANTS QUE PAR DES PIECES SONY DONT LES AEP model:AC:220-230V NSDHZ 27w
NUMEROS SONT DONNES DANS CE MANUEL 0U
DANS LES SUPPLEMENTS PUBLIES PAR SONYi
