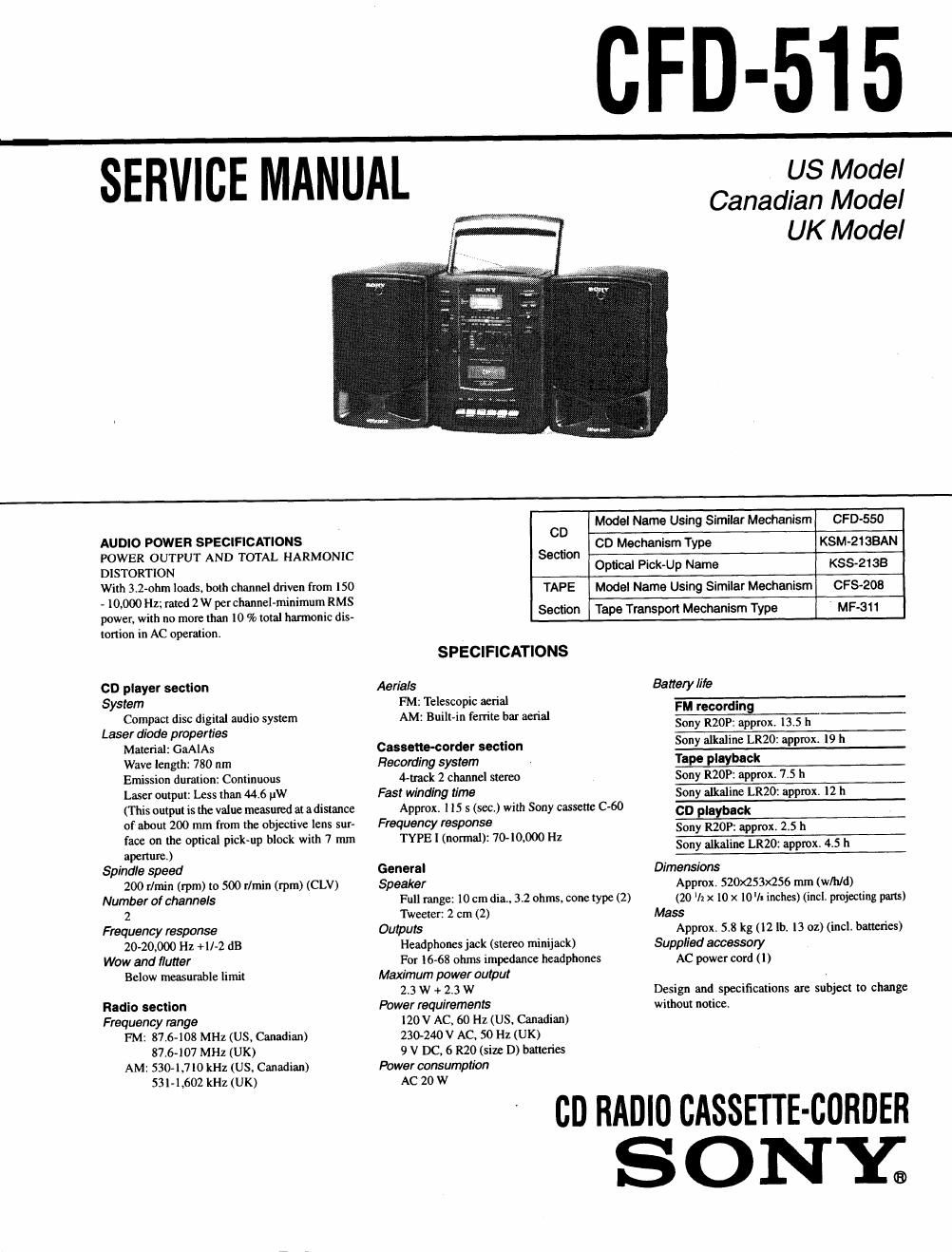

Page 1

CFD-515

SERVICE MANUAL

US Model
Canadian Model
UK Model

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC
DiSTORTION

With 3.2»ohm loads. both channel driven from 150
- 10,000 Hz; rated 2 W perchannel-minimum RMS
power, with no more than 10 % total harmonic dis-
tortion in AC operation,

CD player section
System
Compact disc digital audio system
Laser diode properties
Material: GaAIAs
Wave length: 780 nm
Emission duration: Continuous
Laser output: Less than 44.6 w
(This output is the value measured at a distance
of about 200 mm from the objective lens sur-
face on the optical pick-up block with 7 mm
aperture.)
Spindle speed
200 r/min (rpm) to 500 r/min (rpm) (CLV)
Number of channels
2
Frequency response
20-20000 Hz +l/-2 dB
Wow and flutter
Below measurable limit

Radio section
Frequency range
FM: 87.6-108 MHz (US, Canadian)
87.6-107 MHz (UK)
AM: 5304.710 kHz (US. Canadian)
531-1,602 kHz (UK)

Model Name Using Similar Mechanism

CFO-550

CD
Section

CD Mechanism Type

KSM-21 SBAN

Optical Pick-Up Name

KSS-2133

TAPE

Model Name Using Similar Mechanism

CPS-208

Section

Tape Transport Mechanism Type

MF-311

SPECIFICATIONS

Aerials
FM: Telescopic aerial
AM: Built-in ferrite bar aerial

Cassette-comer section
Recording system
4-uack 2 channel stereo
Fast winding time
Approx. 115 3 (see) with Sony cassette 060
Frequency response
TYPE I (normal): 70« l0,000 Hz

General
Speaker
Full range: 10 cm dia, 3.2 ohms, cone type (2)
Neeter: 2 cm (2)
Outputs
Headphones jack (stereo minijack)
For 16-68 ohms impedance headphones
Maximum power output
23 W + 2.3 W
Power requirements
120V AC. 60 Hz (US. Canadian)
230-240 V AC. 50 Hz (UK)
9 V DC, 6 R20 (size D) batteries
Power consumption
AC 20 W

Battery life

Sony alkaline LRZO: approx. 19 h

Tape playback

Sony R20P: approx. 7.5 h

Sony alkaline LRZO: approx. 12 h

CD playback

Sony RZOP: approx. 2.5 h

Sony alkaline LR20: approx, 4.5 h
Dimensions

Approx. 52M53x256 mm (w/h/d)

(20 I2 x [0 x 10]: inches) (incI. projecting pam)
Mass

Approx 5.8 kg (l2 lb. I3 02) (incl. batteries)
Supplied accessory

AC power cord (1)

Design and specifications are subject to change
without notice.

CD RADIO CASSETTE-BORDER

SONXC.

Page 2

TABLE OF CONTENTS

SAFETY CHECK-OUT
After correcting the original service problem, perform the follow»

ing safety checks before releasing the set to the customer:

Check the antenna terminals. metal trim. metallized knobs, screws,

and all other exposed metal parts for AC leakage.

Check leakage as described below.

LEAKAGE TEST

The AC leakage from any exposed metal part to earth ground and

from all exposed metal pans to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microampers.) Leak-

1. SERVICING NOTES ............................................... 3
2. GENERAL ................................................................... 4
3. DISASSEMBLY ......................................................... 13
4. MECHANICAL ADJUSTMENTS ............... 18
5. ELECTRICAL ADJUSTMENTS
Tape Deck Section . . 18
Tuner Section ..

CD Section ..

6. DIAGRAMS

6- 1. Printed Wiring Boards (CD Section) ..............................

6-2. Schematic Diagram (CD Section)
6-3. Schematic Diagram (Audio Section) ..
6-4. Printed Wiring Boards (Audio Section) .
6-5. lC Pin Function Description ................

25
. 27
31
35
. 40

7. EXPLODED VIEWS ................................................ 42

8. ELECTRICAL PARTS LIST ............................... 49

CLASS 1 LASER PRODUCT
LUOKANI MSERLAIIE

KLASS I LASERAPPARAT

This Compact Disc player is classified as a
CLASS 1 LASER product.

The CLASS 1 LASER PRODUCT label is
located on the rear exterior.

CAUTION

Use of controls or adjustments or performance of pro-
cedures other than those specified herein may result in
hazardous radiation exposure.

SAFETY-RELATED COMPONENT WARNING

COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB~
LISHED BY SONY.

age current can be measured by any one of three methods.
1.

A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers' instructions to use these
instniments.

A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.

Measuring the voltage drop across a resistor by means of a VOM
or battery-operated AC voltmeter. The limit" indication is 0.75
V. so analog meters must have an accurate lowvvoltage scale.
The Simpson 250 and Sanwa SH-63Trd are examples of a pas-
sive VOM that is suitable. Nearly all battery operated digital
multimeters that have a 2 V AC range are suitable. (See Fig. A)

To Exposed Metal
Paris on Set

AC
/ Voltmeter
(0.75 V)

0.15uF

g 1.5 ko

r
T___

_T- Earth Ground

Fig. A. Using an A0 voltmeter to check Ac leakage.

ATTENTION AU couposmr AYANT RAPPORT
A LA sécunirér

LES COMPOSANTS IDENTIFIES PAR UNE MAROUE A
SUR LES DIAGRAMMES SCHEMATIOUES ET LA LISTE
DES PIECES SONT CRITIQUES POUR LA SECURITE
DE FONCTIONNEMENT. NE REMPLACER CES COM-
POSANTS OUE PAR DES PIECES SONY DONT LES
NUMEROS SONT DONNES DANS CE MANUEL 0U
DANS LES SUPPLEMENTS PUBLIES PAR SONY.
