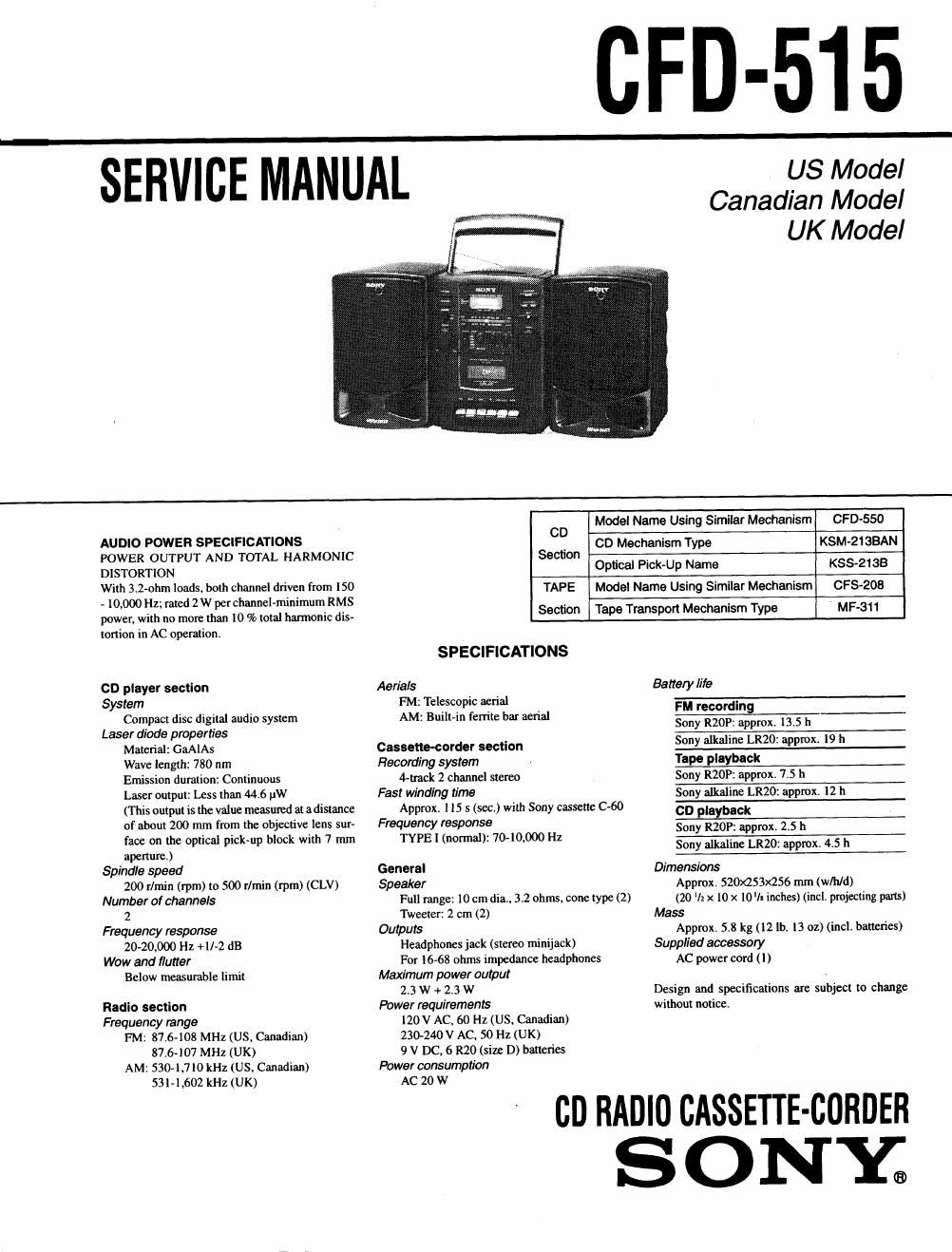

Page 1

CFD-515

SERVICE MANUAL

US Model
Canadian Model
UK Model

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC
DiSTORTION

With 3.2»ohm loads. both channel driven from 150
- 10,000 Hz; rated 2 W perchannel-minimum RMS
power, with no more than 10 % total harmonic dis-
tortion in AC operation,

CD player section
System
Compact disc digital audio system
Laser diode properties
Material: GaAIAs
Wave length: 780 nm
Emission duration: Continuous
Laser output: Less than 44.6 w
(This output is the value measured at a distance
of about 200 mm from the objective lens sur-
face on the optical pick-up block with 7 mm
aperture.)
Spindle speed
200 r/min (rpm) to 500 r/min (rpm) (CLV)
Number of channels
2
Frequency response
20-20000 Hz +l/-2 dB
Wow and flutter
Below measurable limit

Radio section
Frequency range
FM: 87.6-108 MHz (US, Canadian)
87.6-107 MHz (UK)
AM: 5304.710 kHz (US. Canadian)
531-1,602 kHz (UK)

Model Name Using Similar Mechanism

CFO-550

CD
Section

CD Mechanism Type

KSM-21 SBAN

Optical Pick-Up Name

KSS-2133

TAPE

Model Name Using Similar Mechanism

CPS-208

Section

Tape Transport Mechanism Type

MF-311

SPECIFICATIONS

Aerials
FM: Telescopic aerial
AM: Built-in ferrite bar aerial

Cassette-comer section
Recording system
4-uack 2 channel stereo
Fast winding time
Approx. 115 3 (see) with Sony cassette 060
Frequency response
TYPE I (normal): 70« l0,000 Hz

General
Speaker
Full range: 10 cm dia, 3.2 ohms, cone type (2)
Neeter: 2 cm (2)
Outputs
Headphones jack (stereo minijack)
For 16-68 ohms impedance headphones
Maximum power output
23 W + 2.3 W
Power requirements
120V AC. 60 Hz (US. Canadian)
230-240 V AC. 50 Hz (UK)
9 V DC, 6 R20 (size D) batteries
Power consumption
AC 20 W

Battery life

Sony alkaline LRZO: approx. 19 h

Tape playback

Sony R20P: approx. 7.5 h

Sony alkaline LRZO: approx. 12 h

CD playback

Sony RZOP: approx. 2.5 h

Sony alkaline LR20: approx, 4.5 h
Dimensions

Approx. 52M53x256 mm (w/h/d)

(20 I2 x [0 x 10]: inches) (incI. projecting pam)
Mass

Approx 5.8 kg (l2 lb. I3 02) (incl. batteries)
Supplied accessory

AC power cord (1)

Design and specifications are subject to change
without notice.

CD RADIO CASSETTE-BORDER

SONXC.

Page 2

Focus Bias Adjustment
This adjustment is to be done when the optical pick-up block is
replaced,

Procedure:
Oscilloscope
(DC range)
CD MAIN boa/d
_._ IE

WmH%-fl+
WNQm-m

L__-

Put the set into test mode.

2. Connect oscilloscope between TP (RF) and 1'? (VC).

3. Press PM and H4 buttons to move the optical pick-up to the
center. (Move the optical piek to enable easy visibility of the eye pattern.)

4. Insert disc (YEDS-lS) in and press HI button,

5. Press the HI button. (Tracking Servo ON)

6. Adjust RV701 so that the oscilloscope waveform is as shown in
the figure below. (eye pattern)

A good eye pattem means that the diamond shape (0) in the
center of the waveform can be clearly distinguished.

7 i Release test mode after adjustment is completed

(

- RF signal reference waveform (eye pattern)

ii

VOLT/DIV .' 0.2 V
TIME/DIV .' 500 n5

9 9 O 9 9 9 9 O
\\\\'i"iiiti);t
\ttififiiiWW

MM) t

.a;.... A

When observing the eye pattern, 59! the oscilloscope for AC
range and raise venical sensitivity.

Adjustment Location: CD MAIN board (See page 24.)

Focus/Tracking Galn Adjustment

A frequency responce analyzer is necessary in order to perform this

adjustment exactly,

However. this gain has a margin, so even if it is slightly off. there is

no problem. Therefore, do not perform this adjustment,

Focus/tracking gain determines the pick-up follow-up (vertical and

horizontal) relative to mechanical noise and mechanical shock when

the 2-axis device operate

However, as these reciprocate, the adjustment is at the point where

both are satisfied

' When gain is raised, the noise when the 2-axis device operates
increases.

~ When gain is lowered, mechanical shock and skipping occurs more
easily.

- When gain adjustment is off. the symptoms below appear.

Galn

Focus Tracking

Symptoms

- The time until music starts becomes
longer for I-tHl on automatic
selection. low
(I44 , DH buttons pressed.)
(Normally takes about 2 seconds)

low or high

- Music does not start and disc
continues to rotate for I-tHI or
automatic selection,

04 , FM buttons pressed.)

- Sound is interrupted during PLAY,
Or time counter display stops - low
progressing.

- low

t More noise during 2-axis device

operation, high h'gh

-22-
