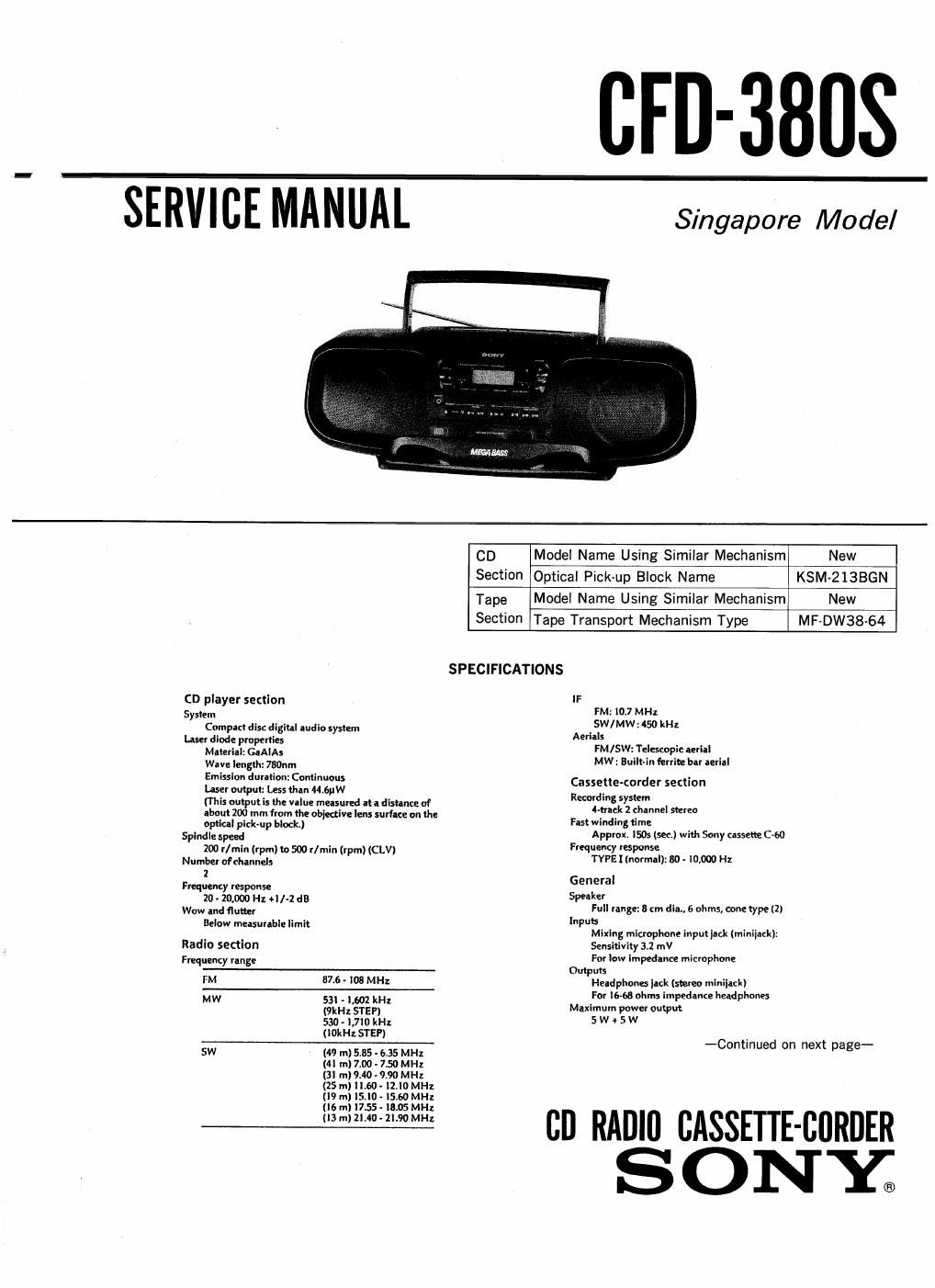

Sony cfd 380 s service manual

Page 2

Power requiremms
For CD udio maorder:

llo V-IZO V, 220V - 240V AC selectable 50/60 Hz
9V DC, 6 R20 (size D) Wies

3 V DC, 2 R6 (sin AA) binaries
Power consumption
AC 25 W

Sony SUM-l (NS): approx. 3.5 h
Sony alkaline AMI: Ipplox. I0 I:
Tape playback

Sony SUM-l (NS): approx. 1.5 h
Sony alkaline AMI: approx 5 h
(D plabek

Sony SUM-I (N5): approx. 1 h

Sony alkaline AMI: approx. 4 h

Dimensions

approx. 578 x I95 x 260 mm (w/h/d)

(12 mar/m 10 V. inches (Incl. projecting pulls)
Mass

Ipprox. 6.2 kg (I3 lb. ll oz) (incl. bunnies)
Supplied amassed-s

AC power cord (1)

Remote commander RMTCSSO (I)

Design and specifirnlons m subiectto change without
notice.

NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK 0R BASE UNIT

The laser diode in the optical pick-up block may suffer
electrostatic breakdown because of the potential difference
generated by the changed electrostatic load, etc. on clothing
and the human body

During repair, pay attention to electrostatic breakdown and
also use the procedure in the printed matter which is included
in the repair parts.

The'flexible board is easily damaged and should be handled
with care.

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be
focused on the disc reflective surface by the objective lens in
the optical pickup block. Therefore, when checking the laser
diode emission, observe more than 250m away from the
objective lens

CAUTION
Use of controls or adjustments or performance of procedur-
es other than those specified herein may result in hazardous

radiation exposure.

SAFETY-R ELATED COMPONENT WARNINGII

COMPONENTS IDENTIFIED BY MARK 1% OR DOTTED LINE WITH
MARK A ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST
ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS
WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN
THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

_2_
