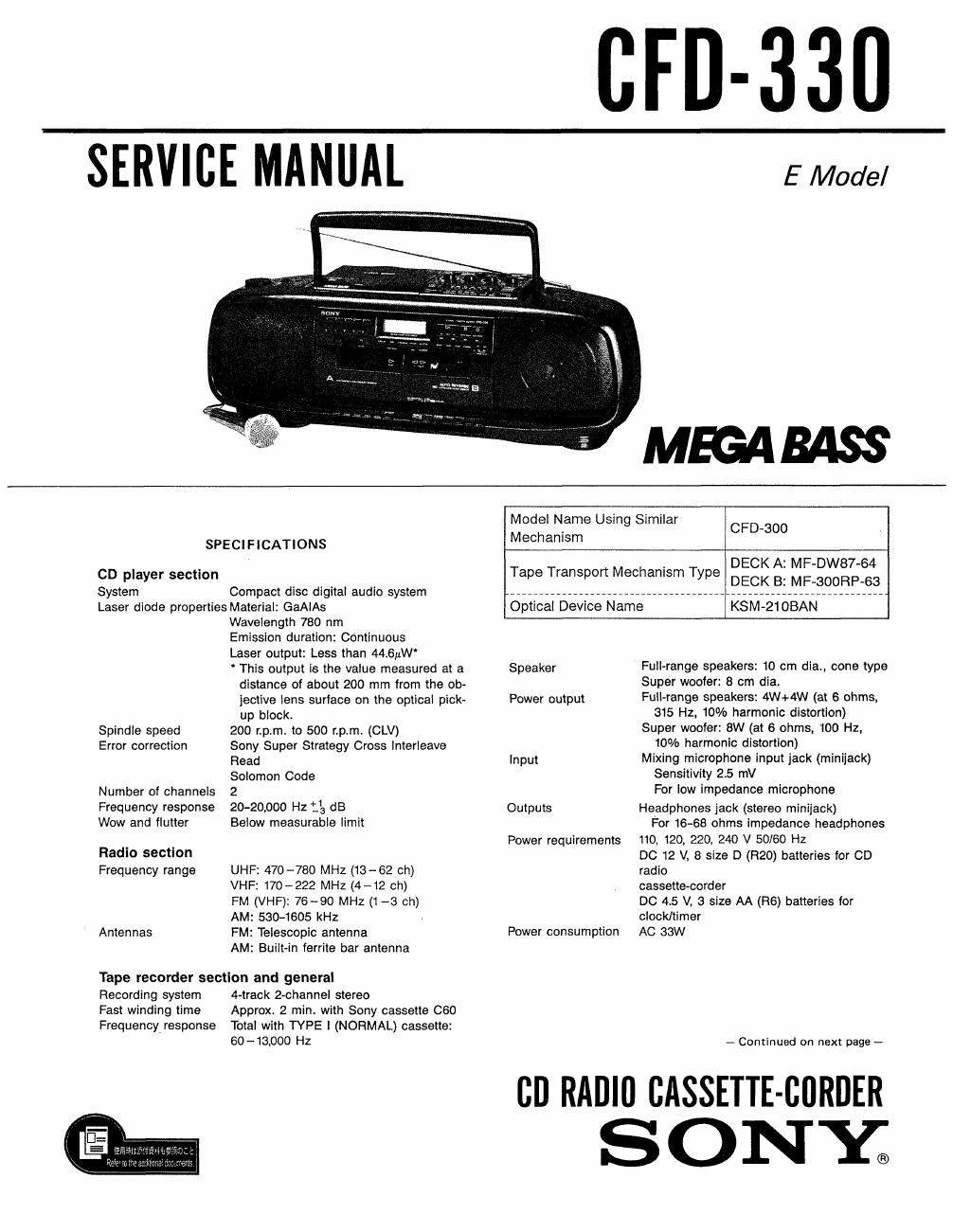

CFD-330

SERVICE MANUAL

E Model

MEGABASS

SPECIFICATIONS

CD player section

System Compact disc digital audio system

Laser diode properties Material: GaAIAs

Wavelength 780 nm

Emission duration: Continuous

Laser output: Less than 44.6,tw*

' This output is the value measured at a
distance of about 200 mm from the ob-
jective lens surface on the optical pick«
up block.

200 rpm. to 500 rpm, (CLV)

Sony Super Strategy Cross lnterleave

Read

Solomon Code

Number of channels 2

Frequency response 20-20000 Hz 13 dB

Wow and flutter Below measurable limit

Spindle speed
Error correction

Radio section
Frequency range UHF: 470-780 MHz (13-62 ch)
VHF: 170-222 MHZ (4-12 ch)
FM (VHF): 76-90 MHz (1-3 ch)
AM: 530-1605 kHz

FM: Telescopic antenna

AM: Built-in ferrite bar antenna

Antennas

Tape recorder section and general

Recording system 4-track 2»channel stereo

Fast winding time Approx. 2 min with Sony cassette 060

Frequency response Total with TYPE l (NORMAL) cassette:
60 -13.000 Hz

Model Name Using Similar

Mechanism CFO-30°

DECK A: MF-DW87~64
DECK B: MF-300RP-63

Tape Transport Mechanism Type

Optical Device Name KSM~2108AN

Full-range speakers: 10 cm dia., cone type
Super woofer: 8 cm dia.
Full-range speakers: 4W+4W (at 6 ohms,
315 Hz, 10% harmonic distortion)
Super woofer: 8W (at 6 ohms, 100 Hz,
10% harmonic distortion)
Input Mixing microphone input jack (minilack)
Sensitivity 25 mV
For low impedance microphone
Headphones jack (stereo minijaok)
For 16-68 ohms impedance headphones
Power requirements 110, 120, 220, 240 V 50/60 Hz
DC 12 V, 8 size D (R20) batteries for CD
radio
cassette-Carder
DC 4.5 V, 3 size AA (R6) batteries for
clock/timer
AC 33W

Speaker

Power output

Outputs

Power consumption

- Continued on next page -

cu RADIO CASSETTE-BBRDER
SONY;

Page 2

CFD-330

Battery life Batteries for radio cassette-corder
Recording Playback CD playing Featu res

Sony SUM-1 (NS) approx. 4H approx. 1H approx. 45M
Sony Alkaline AM1(N) approxt 9H approx. 2.5H approx. 2.0H

Dimensions 660 x 228 x 235 mm (w/h/d) The CPD-330 is a compact disc cassette-
(26 x 9 x 93/3 inches) 0 rder
incl. projecting parts and controls 0 '

Weight Approx. 3 kg, (Approx. 17 lb 10 oz) incl. Which allows you to
5" - sing KARAOKE songs with digital echo

Supplied accessories AC power cord (1)
AC plug adaptor (1)
Dynamic microphone (1)

- listen to high performance compact discs (CDs)
- play audio cassettes

- listen to the radio

. record discs, cassettes and radio onto cassettes.

The exciting sing-along (KARAOKE) functions

0 Adjustable digital echo control function

Adjustable microphone volume control function

0 Dual microphone jacks for a duet

- Sound mode selector for KARAOKE multiplex CD or tape
- Supplied vocal microphone

0 Input selector for microphone or musical instrument

High quality sound
~A powerful bass is produced with the Sony MEGA BASS

system.
~Digital echo for a deep sound

A high performance, high fidelty CD player
with many functions

OThree-inch disc can be played without an adaptor.

OWhile recording a disc, the CD synchronized starting
system makes it possible to start CD playing automatically
when the deck is in recording mode.

ORepeat function for playing either the entire disc or a
single selection and also for program play or shuffle play.

~Program play for playing selections in the order desired.

SAFETyflsLATED COMPONENT WARNING oShuffle play for playing selections repeatedly in random

order.
COMPONENTS |DENT|F|ED 3V MARK A 07* DOTTED 0The beginning of the selections can be scanned for 10
LINE WITH MARK A ON THE SCHEMATIc DIAGRAMS seconds (INTRO SCAN).

AND IN THE PARTS LIST ARE CRITICAL TO SAFE . . .
OPERATION. REPLACE THESE COMPONENTS WITH :Ee mosrccalendargncludes 9 2:120 tselectiorhs. r ,
SONY PARTS WHOSE PART NUMBERS APPEAR AS e seecrons can 9 ngramm 3 omalca Y 1° 't 0

SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB. a deSiVEd dU'a'iO" (AUTO EDIT)-

LISHED BY SONV. . . .
Digital clock timer

CD, radio or a taped program can be recorded and played
back at a preset time.

Double cassette deck
Deck B: Auto-reverse recording and playback

Others
High or normal speed tape dubbing
