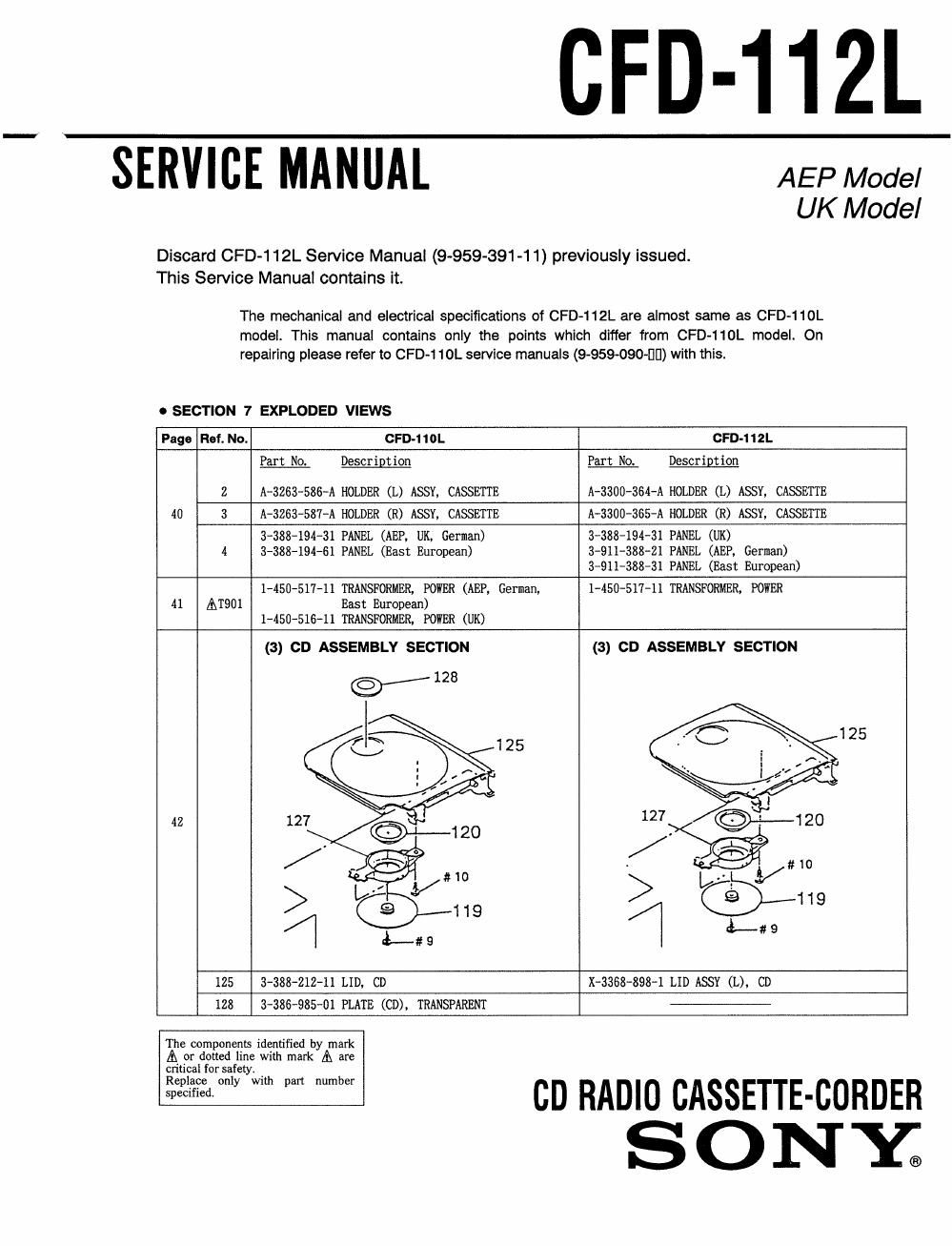

CFD-112L
SERVICE MANUAL AEPModel
UK Model
Discard CFD-112L Service Manual (9-959-391-11) previously issued.
This Service Manual contains it.
The mechanical and electrical specifications of CFD-112L are almost same as CFD'ttoL
model. This manual contains only the points which differ from CFD-ttOL model. On
repairing please refer to CFD-110L service manuals (9-959-090-UD) with this.
0 SECTION 7 EXPLODED VIEWS
Page RBI, No. CFD-HOL CFD-112L
Part No. Descrigtion Part No. Descrigtion
A~3263~586sA HOLDER (L) ASSY, CASSETTE A-3300-364-A HOLDER (L) ASSY, CASSETTE
40 3 A-3263-587-A HOLDER (R) ASSY, CASSETTE A-3300-365-A HOLDER (R) ASSY, CASSETTE
3-388-194-31 PANEL (AEP, UK, German) 3-388-194-31 PANEL (UK)
4 3-388-194-61 PANEL (East European) 3-911-388-21 PANEL (AEP, German)
3-911-388-31 PANEL (East European)
1-450-517-11 TRANSFORMER, POWER (AEP, German, 1-450-517-11 TRANSFORMER, POWER
41 ATQOI East European)
1-450-516-11 TRANSFORMER, POWER (UK)
(3) CD ASSEMBLY SECTION (3) CD ASSEMBLY SECTION
42
125 3-388-212-11 LID, CD X-3368-898-1 LID ASSY (L), CD
128 3-386-985-01 PLATE (CD), TRANSPARENT
The components identified by mark
A or dotted line with mark A are
critical for safety.
w m m CD RADIO CASSETTE-CORDER
SONY.
Page 2
0 SECTION 8
ELECTRICAL PARTS LIST
Page Ref. No. CFD-IIOL CFD-I12L
Part No. Description Part No, Description
POWER BOARD POWER BOARD
52 ##H3*#**** ***********
AT901 1-450-516-11 TRANSFORMER, POWER (UK) 1-450-517-11 TRANSFORMER, POWER
1-450-517rll TRANSFORMER, POWER (AEP, German,
East European)
ACCESSORIES & PACKING MATERIALS ACCESSORIES & PACKING MATERIAIS
*****#************X**********H *****¥H*******************H**
3-756-864-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH, 3-758-307-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH,
GERMAN, SPANISH) (AEP, German, UK) GERMAN, SPANISH) (AEP, UK)
3-756-864-41 MANUAL, INSTRUCTION (DUTCH, SWEDISH, 3-758-307-41 MANUAL, INSTRUCTION (DUTCH, SWEDISH,
PORTUGUESE) (AEP) PORTUGUESE) (AEP)
3-756-864-61 MANUAL, INSTRUCTION (POLISH, ENGLISH, 3-758-307-51 MANUAL, INSTRUCTION
GERMAN, RUSSIAN) (East European) (ENGLISH, SPANISH, ITALIAN, DUTCH)
54 (German)
3-756-864-81 MANUAL, INSTRUCTION
(CZECH, HUNGARIAN) (East European) 3-758-30761 MANUAL, INSTRUCTION (POLISH, GERMAN,
3-756-864-91 MANUAL, INSTRUCTION (DANISH, FINNISH) ENGLISH, RUSSIAN) (East European)
(AEP) 3-758-307-71 MANUAL, INSTRUCTION
(CZECH, HUNGARIAN) (East European)
3-758-307-81 MANUAL, INSTRUCTION
(GERMAN, FRENCH, SWEDISH, PORTUGUESE)
(German)
* 3*906-189~01 INDIVIDUAL CARTON 3-911-332-01 INDIVIDUAL CARTON
NOTE: The components identified by mark
0 Items marked 1: are not stocked since A or dotted line with mark A are
they are seldom required for routine service. CTN-1031 for 53f€W~ ,
Some delay should be anticipated when RepIaee only With pan number
ordering these items. SPWIIW-
English
_ 96C050417-1D
Sony Corporation Printed in Japan
Consumer A&V Products Company © 1995~ 3
9-959-391~13 Personal A&V Products Dlv.
_2_
Publlshed by Home A&V Products DIV.
