Page 1

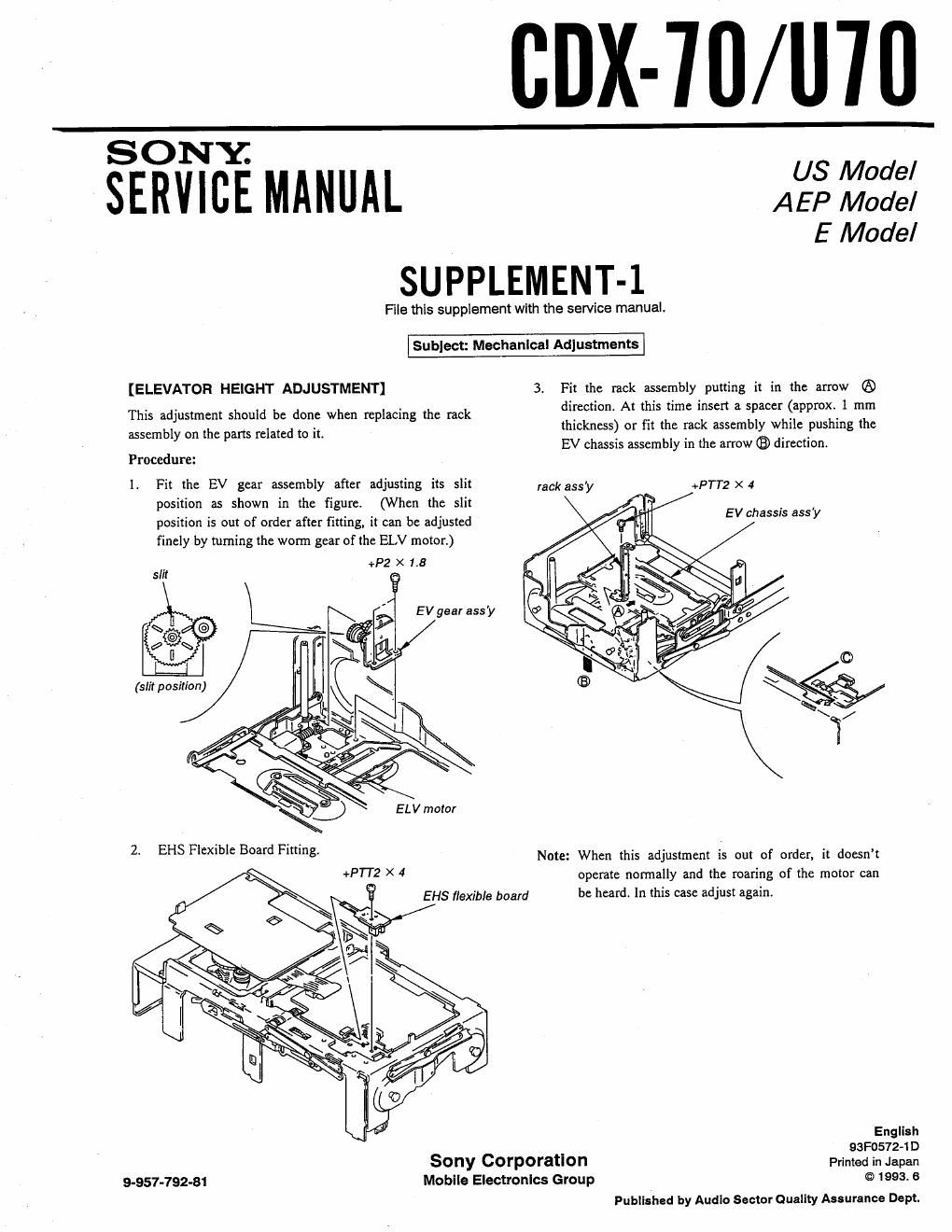

CDX-lD/U'IU

SERVICE MANUAL A538: 3333

E Model
SUPPLEMENT-1

File this supplement wlth the service manual.

Sublect: Mechanical Adjustments

[ELEVATOR HEIGHT ADJUSTMENT] 3. Fit the rack assembly putting it in the arrow ®
direction. At this time insert a spacer (approx. 1 mm
thickness) or fit the rack assembly while pushing the
EV chassis assembly in the arrow ® direction.

This adjustment should be done when replacing the rack
assembly on the parts related to it.

Procedure:

1. Fit the EV gear assembly after adjusting its slit rack ass'y +prr2 x 4
position as shown in the figure. (When the slit
position is out of order after fitting, it can be adjusted
finely by turning the worm gear of the ELV motor.)

+P2 X 1.8

slit

EV gear ass'y

2. EHS Flexible Board Fitting.

Note: When this adjustment is out of order, it doesnt
+PTTZ X 4 operate normally and the roaring of the motor can
EHS flexible board be heard. In this case adjust again.

English

93F0572-1D

Sony Corporatlon primed in Japan

9-957-792-81 Mobile Electronlcs Group © 1993. 6

Published by Audio Sector Quality Asouranee Dept.
