Sony cdx u 400 d service manual
This is the 32 pages manual for sony cdx u 400 d service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony cdx u 400 d service manual (Ocr-read)

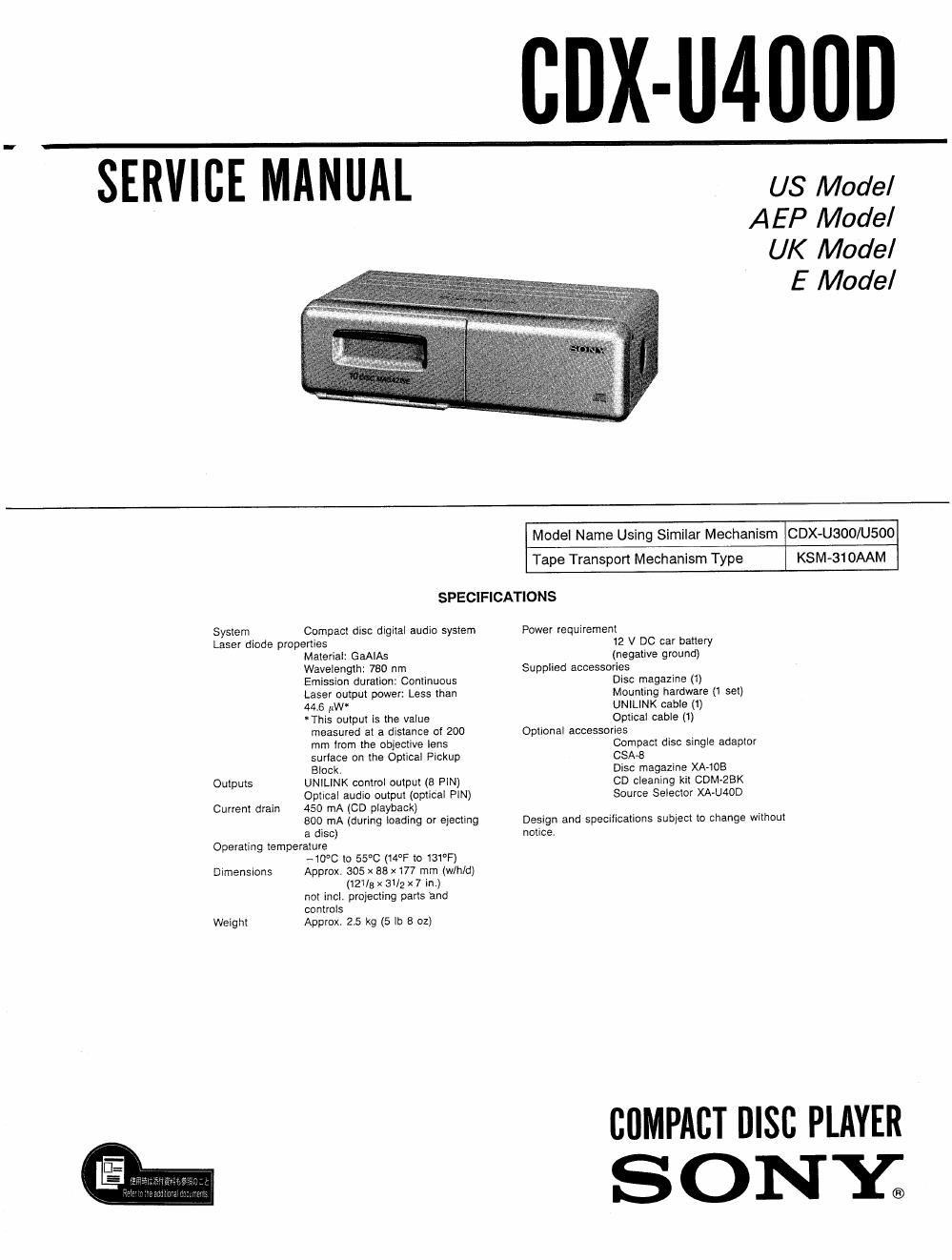

Page 1
CDX-UAUUD
SERVICE MANUAL us Model
AEP Model
UK Model
E Model
Model Name Using Similar Mechanism CDXvU300lU500
Tape Transport Mechanism Type KSM-310AAM
SPECIFICATIONS
System Compact disc digital audio system Power requirement
Laser diode properties 12 V DC car battery
Material: GaAlAs (negative ground)
Wavelength: 780 nm Supplied accessories
Emission duration: Continuous Disc magazine (1)
Laser output power: Less than Mounting hardware (1 set)
44.6 )LW UNILINK cable (1)
-This output is the value Optical cable (1)
measured at a distance of 200 Optional accessories
mm trorn the objective lens Compact disc single adaptor
surface on the Optical Pickup GSA-S
Block. Disc magazine XA-1OB
Outputs UNILINK control output (8 PIN) CD cleaning kit CUM-28K
Optical audio output (optical PIN) Source Selector XA-UAOD
Current drain 450 mA (CD playback)
800 mA (during loading or ejecting Design and specifications subject to change without
a disc) notice.
Operating temperature
~10C to 55°C (14°F to 131°F)
Dimensions Approx. 305 x as x177 mm (wlhld)
(121/5 x 31/2 x 7 in.)
not incl. projecting parts and
controls
Weight Approx. 25 kg (5 lb 8 oz)
CflMPACT DISC PLAYER
SONY;
