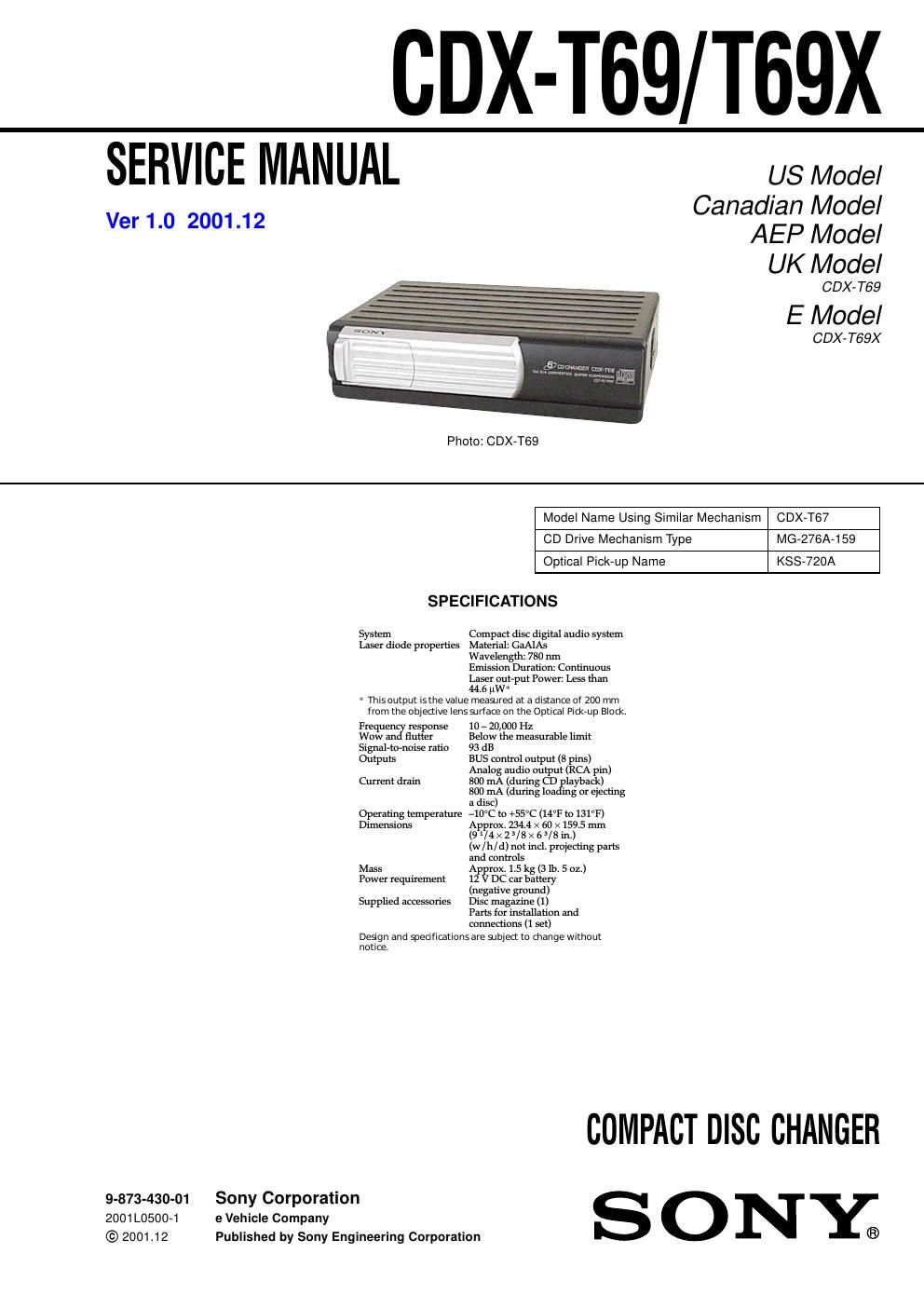

Sony cdx t 69 service manual
This is the 40 pages manual for sony cdx t 69 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony cdx t 69 service manual (Ocr-read)
Page 1
2 CDX-T69/T69X AEP/UK model: When replacing the main chassis assy of mechanism deck which have the CAUTION LABEL attached, please be sure to put a new CAUTION LABEL (3-223-913-11) to the main chassis assy. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. Notes on chip component replacement - Never reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be dam- aged by heat. Flexible Circuit Board Repairing - Keep the temperature of the soldering iron around 270 ˚C dur- ing repairing. - Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). - Be careful not to apply force on the conductor when soldering or unsoldering. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous ra- diation exposure. SERVICING NOTES NOTES ON HANDLING THE OPTICAL PICK- UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electro- static breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick-up block. Therefore, when checking the laser diode emis- sion, observe from more than 30 cm away from the objective lens. US/Canadian model: If the optical pick-up block is defective, please replace the whole optical pick-up block. Never turn the semi-fixed resistor located at the side of optical pick-up block. OPTICA L PICK-UP BLOCK SEMI-FIXED RESISTOR
Page 2
CDX-T69/T69X 3 3 TEST DISC This set can playback a CD-R, CD-RW for audio use. When test this set, use the following test disc. Test disc for CD-R: TCD-R082LMT (Part No.: J-2501-063-1) Test disc for CD-RW: TCD-W082L (Part No.: J-2501-063-2) Notes on CD-R/CD-RW discs -You can play CD-Rs/CD-RWs (recordable CDs/ rewritable CDs) designed for audio use on this unit (fig. H). -Some CD-Rs/CD-RWs (depending on the equipment used for its recording or the condition of the disc) may not play on this unit. -You cannot play a CD-R/CD-RW that is not finalized*. *A process necessary for a recorded CD-R/CD-RW disc to be played on the audio CD player. H Look for this mark to distinguish CD-Rs/CD-RWs for audio use. This mark denotes that a disc is not for audio use. TABLE OF CONTENTS SERVICING NOTES .......................................................... 2 1. GENERAL ................................................................... 4 Installation ....................................................................... 5 Connections ..................................................................... 5 2. DISASSEMBLY 2-1. Disassembly Flow ........................................................... 6 2-2. Front Panel (S) Assy, Case (Upper S) ............................ 6 2-3. Mechanism Deck (MG-276A-159) ................................ 6 2-4. JACK Board .................................................................... 7 2-5. Belt (TS) .......................................................................... 7 2-6. MAIN Board ................................................................... 8 2-7. Escutcheon (S), Slide Variable Resistor (Elevator Height Sensor) (RV301) ................................. 8 2-8. MD Motor Assy (Elevator) (M104) ................................ 9 2-9. LE Motor Assy (Chucking) (M103) ............................... 9 2-10. RF Board ......................................................................... 10 2-11. Sled Motor Complete Assy (M101) ............................... 10 2-12. Optical Pick-up (KSS-720A) .......................................... 11 2-13. Chassis (EV) Assy ........................................................... 11 2-14. Lever (CHK.L) Assy, Lever (CHK.R) Assy ................... 12 2-15. Chassis (OP) Block Service Assy ................................... 12 3. MECHANICAL ADJUSTMENT .......................... 13 4. ELECTRICAL CHECK .......................................... 14 5. DIAGRAMS 5-1. Block Diagram – SERVO Section –.............................. 17 5-2. Block Diagram – BUS CONTROL/ POWER SUPPLY Section –........................................... 18 5-3. Note for Printed Wiring Boards and Schematic Diagrams ....................................................... 19 5-4. Printed Wiring Boards – RF Board –............................ 20 5-5. Schematic Diagram – RF Board –................................. 21 5-6. Printed Wiring Boards – MAIN Board (Component Side) –.............................. 22 5-7. Printed Wiring Board – MAIN Board (Conductor Side) –................................ 23 5-8. Schematic Diagram – MAIN Board (1/2) –.................. 24 5-9. Schematic Diagram – MAIN Board (2/2) –.................. 25 5-10. Printed Wiring Boards – JACK Board –........................ 26 5-11. Schematic Diagram – JACK Board –............................. 26 5-12. IC Pin Function Description ........................................... 30 6. EXPLODED VIEWS 6-1. Case Section .................................................................... 33 6-2. Mechanism Deck Section-1 (MG-276A-159) ................ 34 6-3. Mechanism Deck Section-2 (MG-276A-159) ................ 35 7. ELECTRICAL PARTS LIST ............................... 36 DISC MAGAZINE GETTING OUT PROCEDURE ON THE POWER SUPPLY IS OFF Remove the CASE (LOWER. S) beforehand 1) Press the lever (MZ LOCK) in the direction of arrow A. 2) Removal the magazine assy. Note: Take out the magazine only when the tray is completely within the magazine. If the disk or tray is sticking out, turn on the power and eject the magazine. Lever (MZ LOCK) Magazine assy A
