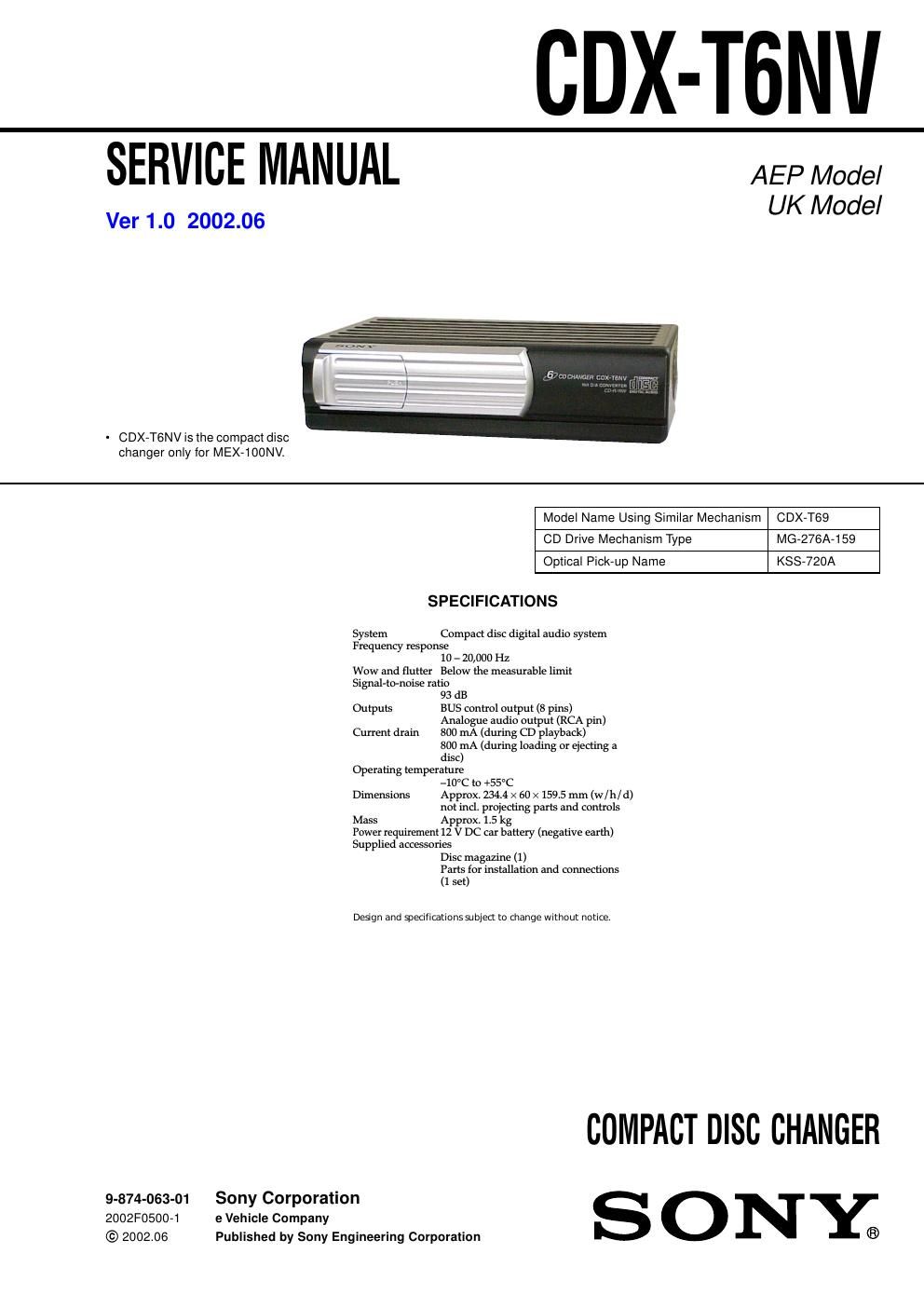

Sony cdx t 6 nv service manual

Page 1

2 CDX-T6NV The laser diode in the optical pick-up block may suffer electro- static breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick-up block. Therefore, when checking the laser diode emis- sion, observe from more than 30 cm away from the objective lens. When replacing the main chassis assy of mechanism deck which have the CAUTION LABEL attached, please be sure to put a new CAUTION LABEL (3-223-913-11) to the main chassis assy. Notes on chip component replacement -Never reuse a disconnected chip component. -Notice that the minus side of a tantalum capacitor may be dam- aged by heat. Flexible Circuit Board Repairing -Keep the temperature of the soldering iron around 270 ˚C dur- ing repairing. -Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). -Be careful not to apply force on the conductor when soldering or unsoldering. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY. SERVICING NOTES NOTES ON HANDLING THE OPTICAL PICK- UP BLOCK OR BASE UNIT TEST DISC This set can playback a CD-R, CD-RW for audio use. When test this set, use the following test disc. Test disc for CD-R: TCD-R082LMT (Part No.: J-2502-063-1) Test disc for CD-RW: TCD-W082L (Part No.: J-2502-063-2) DISC MAGAZINE GETTING OUT PROCEDURE ON THE POWER SUPPLY IS OFF Remove the CASE (LOWER. S) beforehand 1) Press the lever (MZ LOCK) in the direction of arrow A. 2) Removal the magazine assy. Note: Take out the magazine only when the tray is completely within the magazine. If the disk or tray is sticking out, turn on the power and eject the magazine. Lever (MZ LOCK) Magazine assy A Notes on CD-R/CD-RW discs-You can play CD-Rs/CD-RWs (recordable CDs/rewritable CDs) designed for audio use on this unit (fig. H). -Some CD-Rs/CD-RWs (depending on the equipment used for its recording or the condition of the disc) may not play on this unit. -You cannot play a CD-R/CD-RW that is not finalized*. *A process necessary for a recorded CD-R/CD-RW disc to be played on the audio CD player. H Look for this mark to distinguish CD-Rs/CD-RWs for audio use. This mark denotes that a disc is not for audio use.
