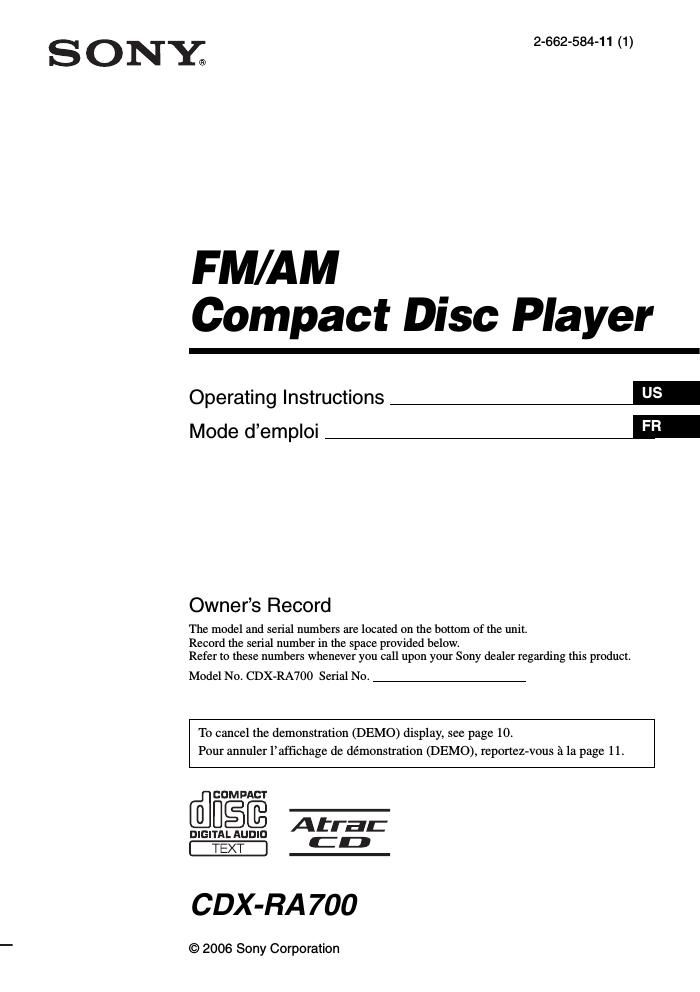

Sony cdx ra 700 owners manual
This is the 36 pages manual for sony cdx ra 700 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony cdx ra 700 owners manual (Ocr-read)
Page 1
2 Welcome ! Thank you for purchasing this Sony Compact Disc Player. You can enjoy your drive with the following functions. CD playback You can play CD-DA (also containing CD TEXT*), CD-R/CD-RW (MP3/WMA files also containing Multi Session (page 12)) and ATRAC CD (ATRAC3 and ATRAC3plus format (page 13)). Radio reception – You can store up to 6 stations per band (FM1, FM2, FM3, AM1 and AM2). – BTM (Best Tuning Memory): the unit selects strong signal stations and stores them. Sound adjustment –EQ3 parametric : You can choose any one of 7 preset equalizer curves, and adjust as desired. – DSO (Dynamic Soundstage Organizer): creates a more ambient sound field, using virtual speaker synthesis, to enhance the sound of speakers, even if they are installed low in the door. – BBE MP : improves digitally compressed sound such as MP3. Image setting You can set various display images on the unit. – Space Producer: creates animated on-screen patterns in time with the music. Optional unit operation You can also control optional CD/MD changers and optional Sony portable devices in addition to playing with this unit. * A CD TEXT disc is a CD-DA that includes information such as disc, artist and track name. Warning 11 Type of discs Label on the disc CD-DA MP3 WMA ATRAC CD For installation and connections, see the supplied installation/connections manual. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. The use of optical instruments with this produc t will increase eye hazard. CAUTION Warning if your cars ignition has no ACC position After turning the ignition off, be sure to press and hold (OFF) on the unit until the display disappears. Otherwise, the display does not turn off and this causes battery drain. R Manufactured under license from BBE Sound, Inc. The BBE MP process improves digitally compressed sound, such as MP3, by restoring and enhancing the higher harmonics lost through compression. BBE MP works by generating even-order harmonics from the source material, effectively recovering warmth, detail and nuance.
Page 2
3 Table of Contents Getting Started Resetting the unit . . . . . . . . . . . . . . . . . . . . . . . . 4 Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . 4 Detaching the front panel . . . . . . . . . . . . . . . . . 4Attaching the front panel . . . . . . . . . . . . . . . 4 Inserting the disc in the unit . . . . . . . . . . . . . . . 5 Ejecting the disc . . . . . . . . . . . . . . . . . . . . . . 5 Location of controls and basic operations Main unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Card remote commander RM-X151 . . . . . . . 6 CD Display items . . . . . . . . . . . . . . . . . . . . . . . . 8 Repeat and shuffle play. . . . . . . . . . . . . . . . . 8 Radio Storing and receiving stations . . . . . . . . . . . . . . 8Storing automatically - BTM . . . . . . . . . . . 8 Storing manually . . . . . . . . . . . . . . . . . . . . . . 8 Receiving the stored stations . . . . . . . . . . . . 8 Tuning automatically . . . . . . . . . . . . . . . . . . 8 Other functions Changing the sound settings . . . . . . . . . . . . . . . 9 Adjusting the sound characteristics . . . . . . . 9 Customizing the equalizer curve - EQ3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Adjusting setup items - SET . . . . . . . . . . . . . 9 Using optional equipment . . . . . . . . . . . . . . . . 10 CD/MD changer . . . . . . . . . . . . . . . . . . . . . 10 Rotary commander RM-X4S . . . . . . . . . . . 11 Auxiliary audio equipment. . . . . . . . . . . . . 11 Additional Information Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 12Notes on discs . . . . . . . . . . . . . . . . . . . . . . 12 About MP3/WMA files . . . . . . . . . . . . . . . 12 About ATRAC CD. . . . . . . . . . . . . . . . . . . 13 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Removing the unit. . . . . . . . . . . . . . . . . . . . . . 14 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 14 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 15 Error displays/Messages. . . . . . . . . . . . . . . 17 SonicStage and its logo are trademarks of Sony Corporation. ATRAC, ATRAC3, ATRAC3plus and their logos are trademarks of Sony Corporation. The SAT Radio Ready logo indicates that this product will control a satellite radio tuner module (sold separately). Please see your nearest authorized Sony dealer for details on the satellite radio tuner module. SAT Radio, SAT Radio Ready, the SAT Radio and SAT Radio Ready logos and all related marks are trademarks of Sirius Satellite Radio Inc. and XM Satellite Radio Inc. Microsoft, Windows Media, and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.
