Page 2

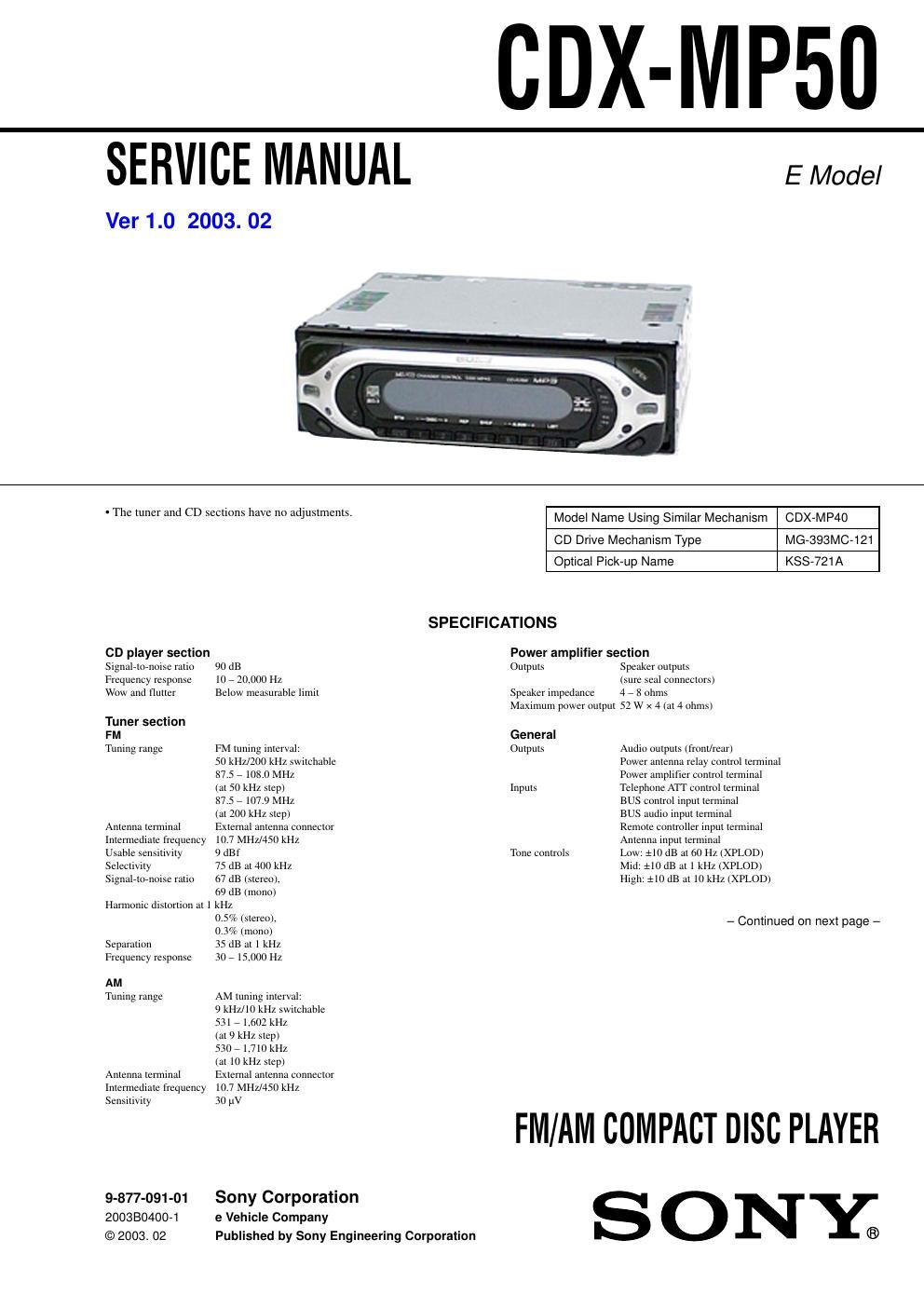

CDX-MP50

Power requirements 12 V DC car battery
(negative earth)

Dimensions Approx. 178 x 50 x 1510 mm
twlh/d)

Mounting dimensions Approx. 182 x 53 x 161 mm
(w/h/d)

Mass Approx. 1.2 kg

Supplied Accessories Parts for installation and eonnecnons
Front pnne1 case (1 1
Card remote commander RMer 15

Note
This nmr cannot be connected to a digital preamputier or an equalizer
which is Sony BUS system eompntime.

Benign (1/111 waifitzllmm m rub/m 10 change nit/mm
11:11 IL'B.

SERVICE NOTES

NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK
OR BASE UNIT

The laser diode in the optical pick-up block may suffer electrostatic
breakdown because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic breakdown and also use
the procedure in the printed matter which is included in the repair
parts.

The flexible board is easily damaged and should be handled with
care.

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick
up block. Therefore, when checking the laser diode emission, ob-
serve from more than 30 cm away from the objective lens.

Notes on Chip Component Replacement

' Never reuse a disconnected chip component.

' Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.

TEST DISCS
This set can playback CD»R and CDAROM discs. The following
test d1s should be used to check the capability:

CD-R test disc TCD-ROSZLMT (Part No. J-25027063e l)
CD-RW test disc TCD7W082L (Part No. J»2502-06372)

SAFETY-RELATED COMPONENT WARNING !!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.

2

CLASS 1

LASER PRODUCT

This label is located on the bottom of the chassis.

CAUTION-INVISIBLE LASER RADIATION WHEN OPEN
DO NOT STARE INTO BEAM OR

VIEW DIRECTLY WITH OPTICAL INSTRUMENTS

This label is located on the drive units internal chassis.
