Sony cdx l 480 n service manual

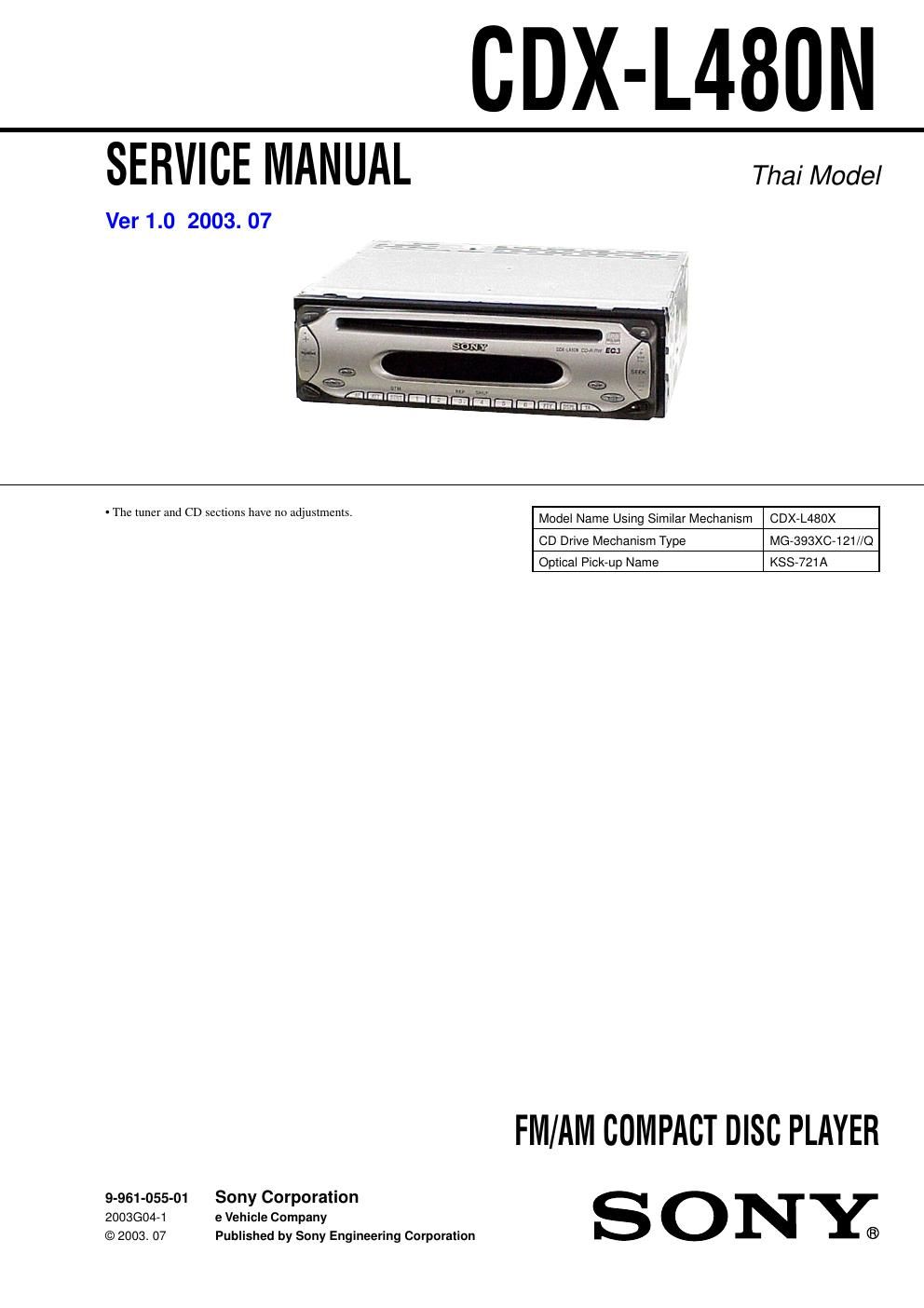

Page 1

CDX-L480N

SERVICE MANUAL Thai Model

Ver 1.0 2003. 07

- The tuner and CD secuons have no adjustmems. Model Name Using Similar Mechanism CDX-L480X

CD Drive Mechanism Type MG-393XC-12WQ
Optical Pick-up Name KSS-721A

FM/AM COMPACT DISC PLAYER
9-961-055-01 Sony Corporation S O N Y
2003GO4-1 e Vehicle Company
© 2003. 07 Published by Sony Engineering Corporation ®

Page 2

CDX-L480N

NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK
OR BASE UNIT

The laser diode in the optical pick-up block ntay suffer electrostatic
breakdown because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic breakdown and also use
the procedure in the printed matter which is included in the repair
parts.

The flexible board is easily damaged and should be handled with
care.

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick
up block. Therefore, when checking the laser diode emission, ob-
serve from more than 30 Cm away from the objective lens.

Notes on Chip Component Replacement

I Never reuse a disconnected chip component.

I Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.

SAFETY-RELATED COMPONENT WARNING !!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.

2

TEST DISCS
Thi set can playback CD-R and CDAROM discs. The following
test discs should be used to check the capability:

CD-R test disc TCD-ROSZLMT (Part No. J2502»063l)
CDARW test disc TCD-W082L (Part No. J-2502A063-2)
