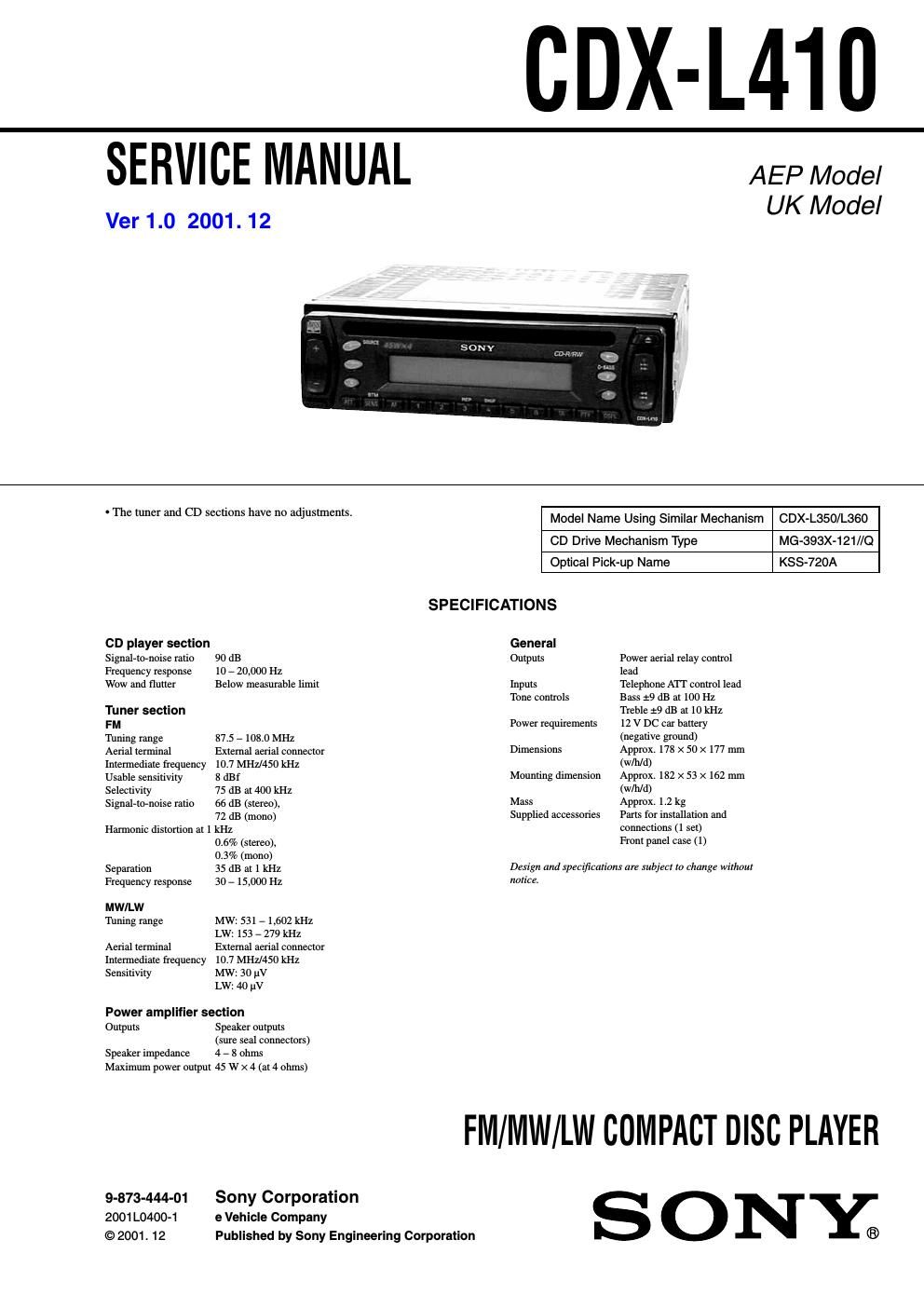

CDX-L410

SERVICE MANUAL

Ver 1.0 2001.12

AEP Model
UK Model

:1:- .iii

' The tuner and CD sections have no adjustments.

CD player section

Signalrtornoise ratio 90 dB

Frequency response 10 , 20000 Hz

Wow and flutter Below measurable limit

Tuner section
FM
Tuning range 87.5 , 108.0 MHz
Aerial terminal External aerial connector
Intermediate frequency 10.7 MHz/450 kHz
Usable sensitivity 8 dBf
Selectivity 75 dB at 400 kHz
Signalrtornoise ratio so dB (stereo),

72 dB (mono)
Harmonic distortion at 1 kHz

0.6% (stereo),

0. 3 % (mono)
Separation 35 dB at 1 kHz
Frequency response 30 , 15.000 Hz

MW/LW
Tuning range MW: 531 7 1,602 kHz
LW: 153 r 279 kHz
Aerial terminal External aerial connector
Intermediate frequency 10.7 MHfl450 kHz
Sensitivity MW: 30 av

LW: 40 av

Power amplifier section
Outputs Speaker outputs

(sure seal connectors)
Speaker impedance 4 , 8 ohms
Maximum power output 45 W x 4 (at 4 ohms)

9-873-444-01 Sony Corporation
2001 LO400-1 e Vehicle Company
© 2001. 12

Published by Sony Engineering Corporation

Model Name Using Similar Mechanism CDX-L350/L360

CD Drive Mechanism Type

MG-393X-121/IQ

Optical Pick-up Name

KSS-720A

SPECIFICATIONS
General
Outputs

Inputs
Tone controls

Power requirements
Dimensions
Mounting dimension

Mass
Supplied accessories

Power aerial relay control
lead

Telephone ATT control lead
Bass :9 dB at 100 Hz
Treble :9 dB at 10 kHz

12 v DC car battery
(negative ground)

Approx. 178 X 50 X 177 mm
(w/h/d)

Approx. 182 X 53 X 162 mm
(w/h/d)

Approx. 1.2 kg

Parts for installation and
connections (1 set)

Front panel case (1)

Design and specificulionx are sub/8c! It) change Wilhllut

Ito/ice.

FM/MW/LW COMPACT DISC PLAYER
