Sony cdx gt 61 ui service manual

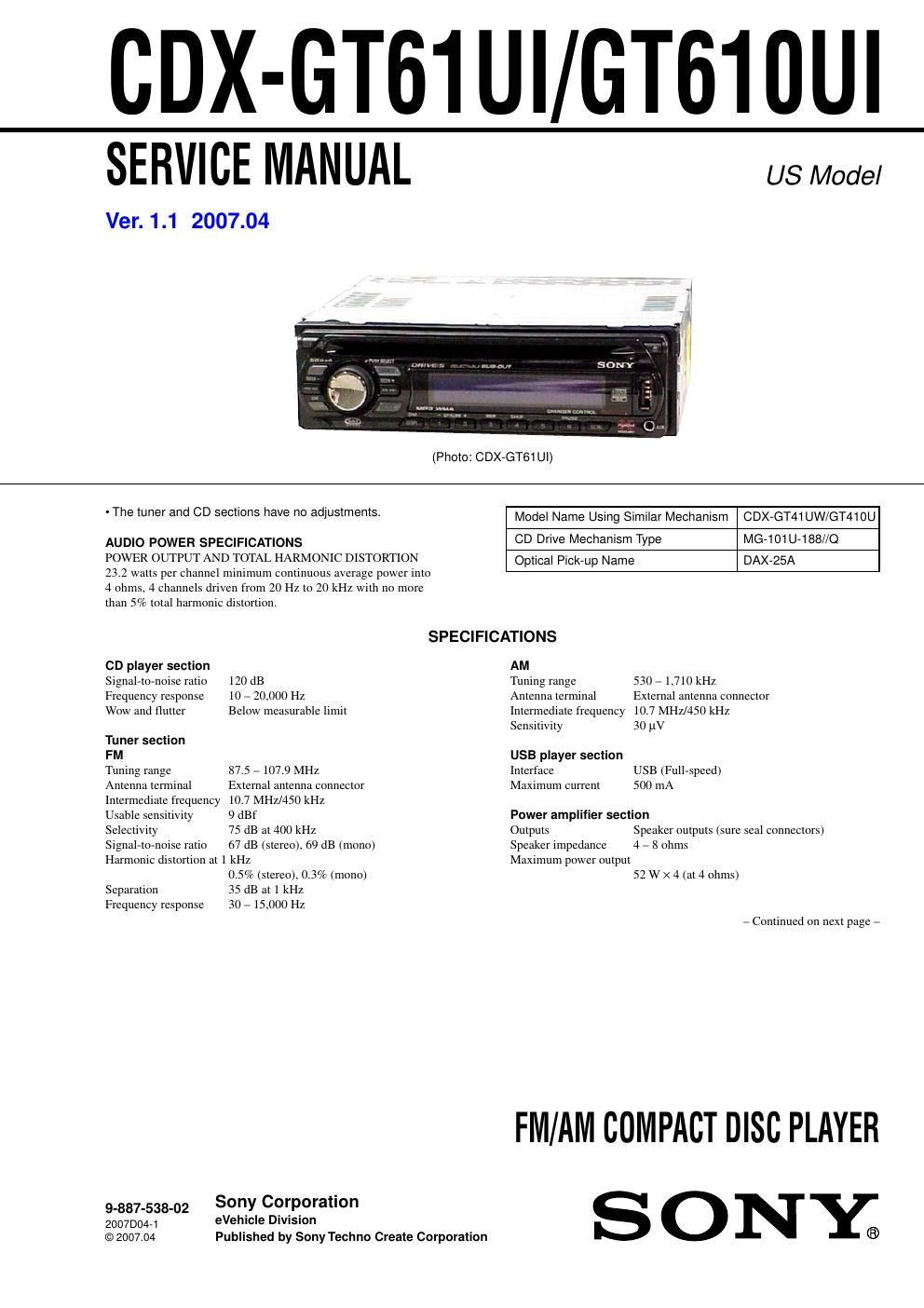

Page 1

2 CDX-GT61UI/GT610UI NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. T he flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. If the optical pick-up block is defective, please replace the whole optical pick-up block. Never turn the semi-fixed resistor located at the side of optical pick- up block. SERVICE NOTES CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. General Outputs Audio outputs terminal (sub/rear switchable) Power antenna relay control terminal Power amplifier control terminal Inputs BUS control input terminal BUS audio input terminal Antenna input terminal A UX input jack (stereo mini jack) iPod signal input terminal (dock connector) T one controls Low: ±10 dB at 60 Hz (XPLOD) Mid: ±10 dB at 1 kHz (XPLOD) High: ±10 dB at 10 kHz (XPLOD) Power requirements 12 V DC car battery (negative ground) Dimensions Approx. 178 × 50 × 179 mm (7 1/8 × 2 × 7 1/8 in.) (w/h/d) Mounting dimensions Approx. 182 × 53 × 162 mm (7 1/4 × 2 1/8 × 6 1/2 in.) (w/h/d) Mass Approx. 1.3 kg (2 lb. 14 oz.) Supplied accessories Card remote commander: RM-X151 Parts for installation and connections (1 set) USB cap Design and specifications are subject to change without notice. US and foreign patents licensed from Dolby Laboratories. optical pick-up semi-fixed resistor Notes on Chip Component Replacement -N ever reuse a disconnected chip component. -N otice that the minus side of a tantalum capacitor may be damaged by heat. TEST DISCS Please use the following test discs for the check on the CD section. YDES-18 (Part No. 3-702-101-01) PATD-012 (Part No. 4-225-203-01) SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE P ART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
