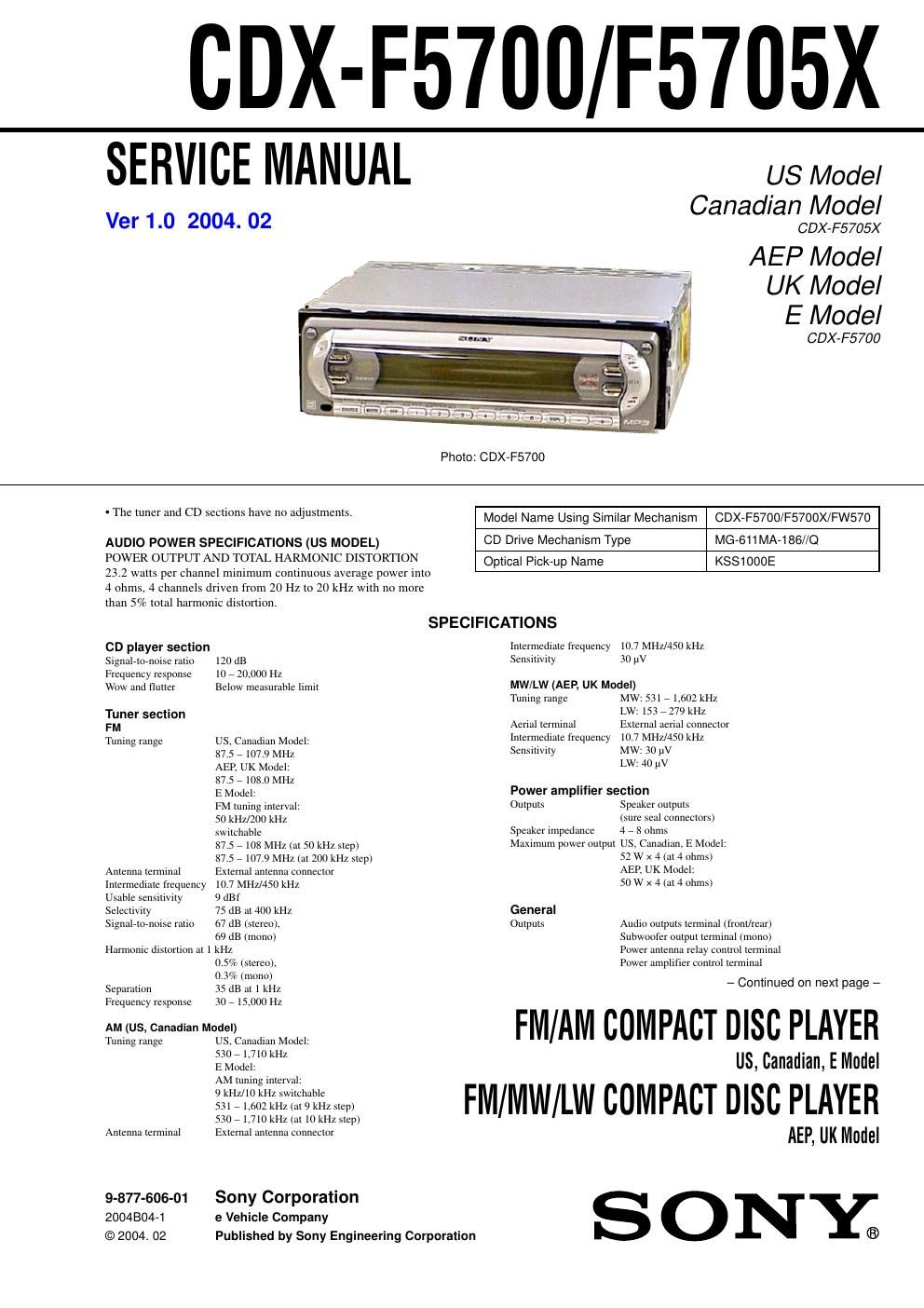

Sony cdx f 5700 service manual

Page 2

3 CDX-F5700/F5705X Notes on CD-Rs (recordable CDs)/CD-RWs (rewritable CDs) This unit can play the following discs: Type of discs Label on the disc Audio CD MP3 files -Some CD-Rs/CD-RWs (depending on the equipment used for its recording or the condition of the disc) may not play on this unit. -You cannot play a CD-R/CD-RW that is not finalized∗ . -You can play MP3 files recorded on CD-ROMs, CD-Rs, and CD-RWs. -A CD-R/CD-RW to which a session can be added can be played. ∗A process necessary for a recorded CD-R/CD-RW disc to be played on the audio CD player. EXTENSION CABLE AND SERVICE POSITION When repairing or servicing this set, connect the jig (extension cable) as shown below. -Connect the MAIN board (CN350) and the SERVO board (CN2) with the extension cable (Part No. J-2502-076-1). z UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.) : LEAD FREE MARK Unleaded solder has the following characteristics. - Unleaded solder melts at a temperature about 40°C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350°C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! -Strong viscosity Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. -Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. SERVO BOAR D CN2 J-2502-076-1 MAIN BOARD CN350
