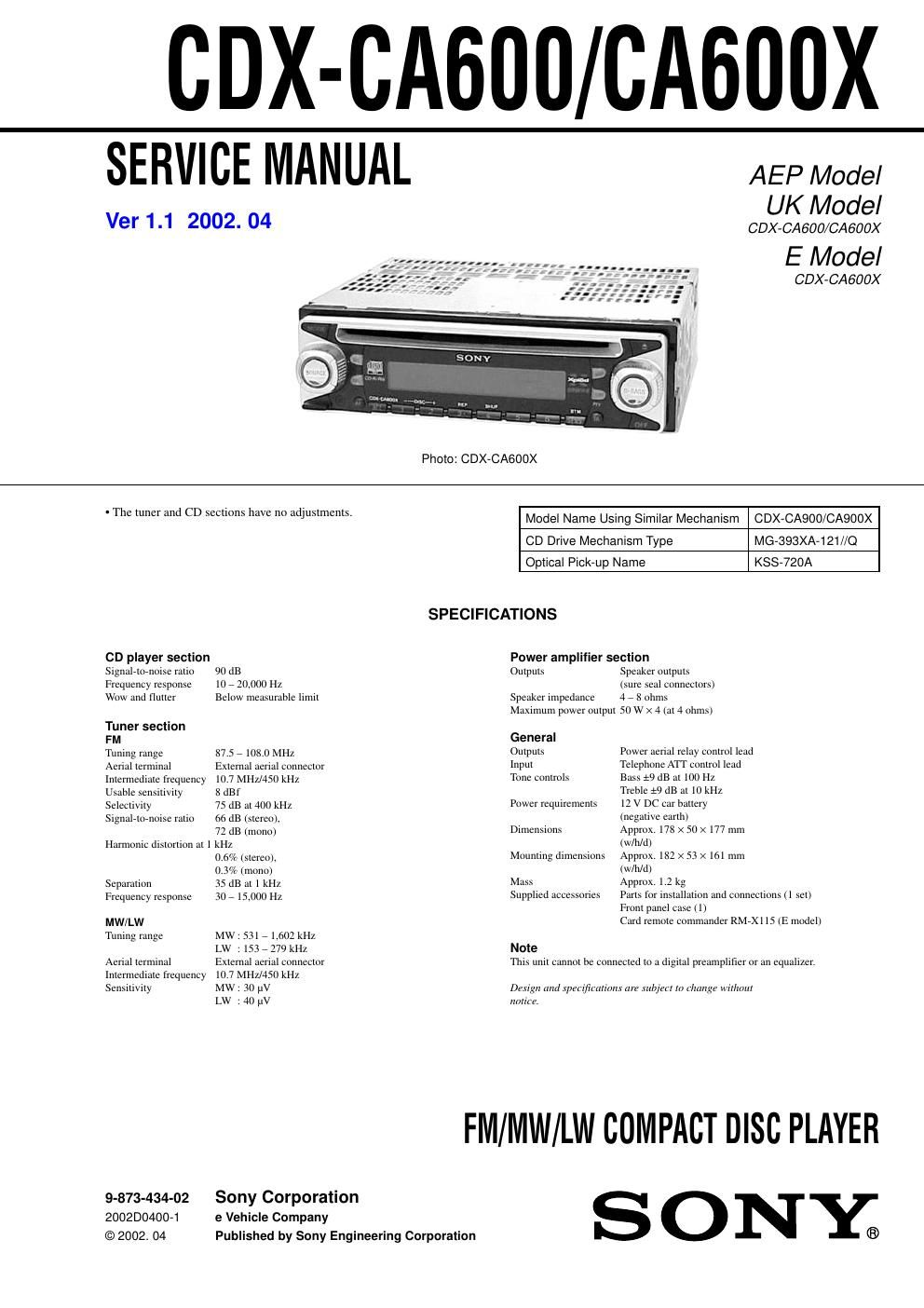

Page 1

CDX-CAfiDU/CAGDUX

SERVICE MANUAL AEP Model

UK Model

Ver 1.1 2002. 04 CDX-CA600/CA600X

E Model

CDX-CA600X

Photo: CDX-CASOOX

- The tuner and CD sections have no adjustments.

Model Name Using Similar Mechanism CDX-CAQOO/CASOOX

CD Drive Mechanism Type MG-393XA-121/IQ
Optical Pick-up Name KSS-720A
SPECIFICATIONS
CD player section Power amplifier section
Signalrtorlioise ratio 90 dB Outputs Speaker outputs
Frequency response 10 , 20,000 Hz (sure seal connectors)
Wow and flutter Below measurable limit Speaker impedance 4 , 8 ohms

Maximum power output 50 W X 4 (at 4 ohms)
Tuner section

FM General
Tuning range 87.5 , 108.0 MHz Outputs Power aerial relay control lead
Aerial terminal External aerial connector lanII Telephone ATT control lead
Intermediate frequency 10.7 MHz/450 kHz Tone controls Bass :9 dB at 100 Hz
Usable sensitivity 8 dBt Treble :9 dB at 10 kHz
Selectivity 75 dB at 400 kHz Power requirements 12 V DC car battery
Signaletoenoise ratio 66 dB (stereo), (negative earth)

72 dB (mono) Dimensions Approx. 178 X 50 X 177 mm
Harmonic distortion at 1 kHz (w/h/d)

0.6% (stereo), Mounting dimensions Approx. 182 X 53 X 161 mm

0.3% (mono) (W/Il/CI)
Separation 35 dB at 1 kHz Mass Approx. 1.2 kg
Frequency [espouse 30 , 15,000 Hz Supplied accessories Parts for installation and connections (1 set)

Front panel case (1)
MW/LW Card remote commander RMeXl 15 (E model)
Tuning range MW : 531 , 1,602 kHz
w : 153 7279 kHz Note

Aerial terminal External aerial connector This unit cannot be connected to a digital preamplifier or an equalizer.
Intermediate frequency 10.7 MHz/450 kHz
Sensitiyity MW : 30 W Design and sperrfirrrirnns rm» «rib/mi It) tlirrngc willmul

LW : 40 try mm} a,

FM/MW/LW COMPACT DISC PLAYER
9-873-434-02 Sony Corporation S O N Y
2002D0400-1 e Vehicle Company
© 2002. 04 Published by Sony Engineering Corporation ®

Page 2

CDX-CAGOO/CAGOOX

SERVICE NOTES

NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK
OR BASE UNIT

The laser diode in the optical pick»up block may suffer electrostatic
breakdown bec use of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic breakdown and also use
the procedure in the printed matter which is included in the repair
parts.

The flexible board is easily damaged and should be handled with

care.

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick
up block. Therefore, when checking the laser diode emission, ob
serve from more than 30 cm away front the objective lens.

Notes on Chip Component Replacement

I Never reuse a disconnected chip component.

0 Notice that the minus side of a tantalum capacitor may be dame
aged by heat.

I CDXaCA600/CA6OOX: AEP, UK model

CLASS 1

LASER PRODUCT

This label is located on the bottom of the ch

CAUTION-INVISIBLE LASER RADIATION WHEN OPEN
DO NOT STARE INTO BEAM 0R

VIEW DIRECTLY WITH OPTICAL INSTRUMENTS

This label is located on the drive units internal chassis.

SAFETY-RELATED COMPONENT WARNING !!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.

2

CAUTION

Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.

If the optical pickeup block is defective, please replace the whole
optical pick-up block.

Never turn the semiiflxed resistor located at the side of optical
pick-up block.

optical pick-up block

semi-fixed resistor

TEST DISCS
This set can playback CDeR and CDiROM discs. The following
test di. should be used to check the capability:

CD-R test disc TCDAROSZLMT (Part No. Ja2502-063-l)
CDiRW test disc TCD7W082L (Part No. 1250206372)

NOTES ON CD-R/CD-RW DISCS

0 You can play CD»Rs (recordable CDs)/CD7RWs (rewritable CDs)
designed for audio use on this unit.
Look for these marks to distinguish CDeRs/CD-RWs for audio

H ESE @fléfi

Hewmable

These marks denote that a disc is not for audio use.

® diffs e dfiéfi
ReWritabIe
' Some CDeRs/CDeRWs (depending on the equipment used for
its recording or the condition of the disc) may not play on this
unit.
0 You cannot play a CD-R/CDARW that is not finalized*.

a A process necessary for a recorded CD-R/CD-RW disc to be
played on the audio CD player.
