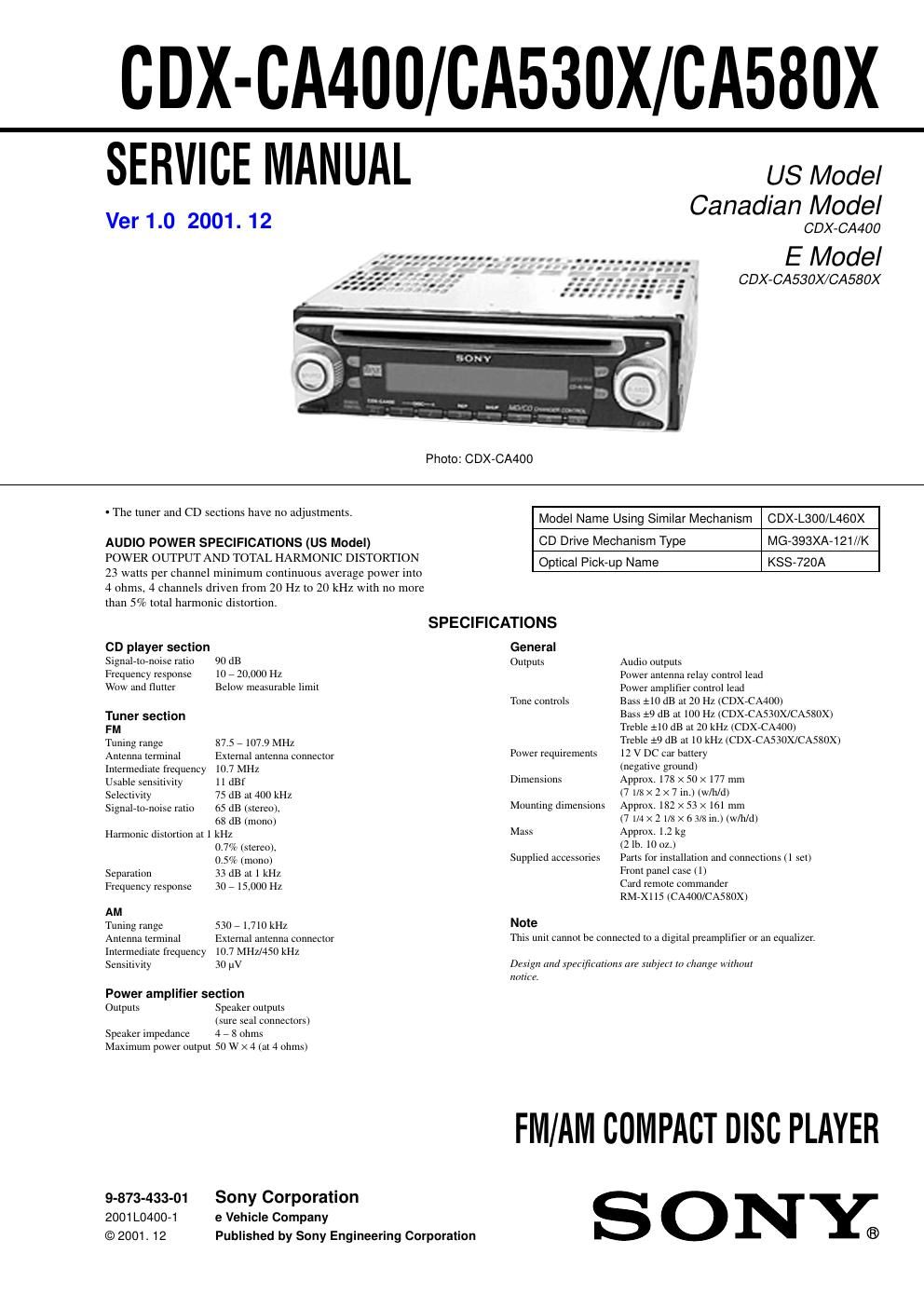

Page 1

CDX-CA400/CA530X/CA580X

SERVICE MANUAL

Ver 1.0 2001.12

US Model
Canadian Model

CDX-CA400

E Model

CDX-CA530X/CA580X

Photo: CDX-CA400

- The tuner and CD sections have no adjustments.

AUDIO POWER SPECIFICATIONS (US Model)

POWER OUTPUT AND TOTAL HARMONIC DISTORTION
23 watts per channel minimum continuous average power into
4 ohms. 4 Channels driven from 20 Hz to 20 kHz with no more
than 5% total harmonic distortion.

Model Name Using Similar Mechanism CDX-L300/L460X
MG-393XA-121l/K
KSS-720A

CD Drive Mechanism Type

Optical Pick-up Name

SPECIFICATIONS
CD player seclion General
Signaletoetloise ratio 90 dB Outputs Audio outputs

Frequency response
Wow and flutter

10 r 20,000 HZ
Below measurable Iimtl

Tuner section
FM
Tuning range 87.5 A 107.9 MHz
Antenna terminal External antenna connector
Intermediate frequency 10.7 MHz
Usable sensitivity 11 dBt
Selectiytty 75 dB at 400 kHz
Signaletoetloise ratio 65 dB (stereo),

58 dB (mono)
Harmonic distortion at 1 kHz
07% (stereo).
0.5% (mono)
33 dB at 1 kHz
30 , 15.000 Hz

Separation
Frequency response

AM

Tuning range 530 A 1,710 kHz

Antenna terminal External antenna connector
Intermediate frequency 10.7 MHZ/450 kHz
Sensitivity 30 av

Power amplilier section
Outputs Speaker outputs

(sure seal connectors)
speaker llnpedatlce 4 , 8 ohms
Maximum power output 50 W X 4 (at 4 ohms)

9-873-433-01 Sony Corporation
2001 L0400-1 e Vehicle Company
© 2001. 12 Published by Sony Engineering Corporation

Power antenna relay control lead
Power amplifier control lead
Bass :10 dB at 20 Hz (CDXeCAAlOO)
Bass :9 dB at 100 Hz (CDXeCASSOX/CASXOX)
Treble :10 dB at 20 kHz (CDXeCAAOO)
Treble :9 dB at 10 kHz (CDXeCA530X/CA580X)
12 V DC car battery
(negattve ground)
Approx. 1711 X 50 X 177 mm
(7 in X 2 X 7 in.) (w/Il/d)
Mounting dimensions Approx. 1232 X 53 X 16] mm
(71/4 X 217;; x o m in ) (w/h/d)
Mass Approx. 1.2 kg
(2 lb. 10 oz.)
Farts for installation and connections (1 set)
Front panel case (1)
Card remote commander
RMeXl 15 (CA400/CA580X)

Tone controls

Power requirements

Dimensions

Supplied accessories

Note

This unit cannot be connected to a digital preamplifier or an equalizer.

Design will .YplL'lfiLlllillll,\ are tub/HI m Lllrl/lgt willtmtl
notice,

FM/AM COMPACT DISC PLAYER
S ONY;

Page 2

CDX-CA400/CA53OX/CA580X

SERVICE NOTES

NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK
OR BASE UNIT

The laser diode in the optical pick»up block may suffer electrostatic
breakdown beC use of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic breakdown and also use
the procedure in the printed matter which is included in the repair
parts.

The flexible board is easily damaged and should be handled with

care.

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick
up block. Therefore, when checking the laser diode emission, ob
serve from more than 30 cm away from the objective lens.

Notes on Chip Component Replacement

I Never reuse a disconnected chip component.

0 Notice that the minus side of a tantalum capacitor may be damA
aged by heat.

SAFETY~RELATED COMPONENT WARNING !!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.

2

CAUTION

Use of controls or adjustments or performance of procedures
other than thOse specified herein may result in hazardous
radiation exposure.

If the optical pick-up block is defective, please replace the whole
optical pick-up block.

Never turn the semi-fixed resistor located at the side of optical
pick-up block.

optical pick-up block

semi-fixed resistor

TEST DISCS
This set can playback CDER and CDAROM discs. The following
test di. should be used to check the capability:

CD-R test disc TCDAROSZLMT (Part No. J-25014063-l)
CD-RW test disc TCDEWOSZL (Part No. 172501A063-2)

Notes on CD-R/CD-RW discs
0 You can play CD-Rs (recordable CDs)/CDARWs (rewritable CDs)
designed for audio use on this unit.
Look for these marks to distinguish CD-Rs/CD-RWs for audio
cum

area page

ml)! MID! DEMAND)

HeWritable

These marks denote that a disc is not for audio use.

® are" a dfiéfi
Hem. ~ ReWritabIe
P Some CDERs/CDERWs (depending on the equipment used for
its recording or the condition of the disc) may not play on this
unit.
0 You cannot play a CD-R/CD-RW that is not finalized*.

a A process necessary for a recorded CD-R/CD-RW disc to be
played on the audio CD player.

ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITEII

LEs COMPOSANTS IDENTIFIES PAR UNE MAROUE A SUR LES
DIAGRAMMES SCHEMATIOUES ET LA LISTE DES PIECES
SONT CRITIQUES POUR LA SECURITE DE FONCTIONNEMENT.
NE REMPLACER CES COMPOSANTS QUE PAR DES PIECES
SONY DONT LES NUMEROS SONT DONNEs DANS CE MANUEL
OU DANs LES SUPPLEMENTS PUBLIES PAR SONY.
