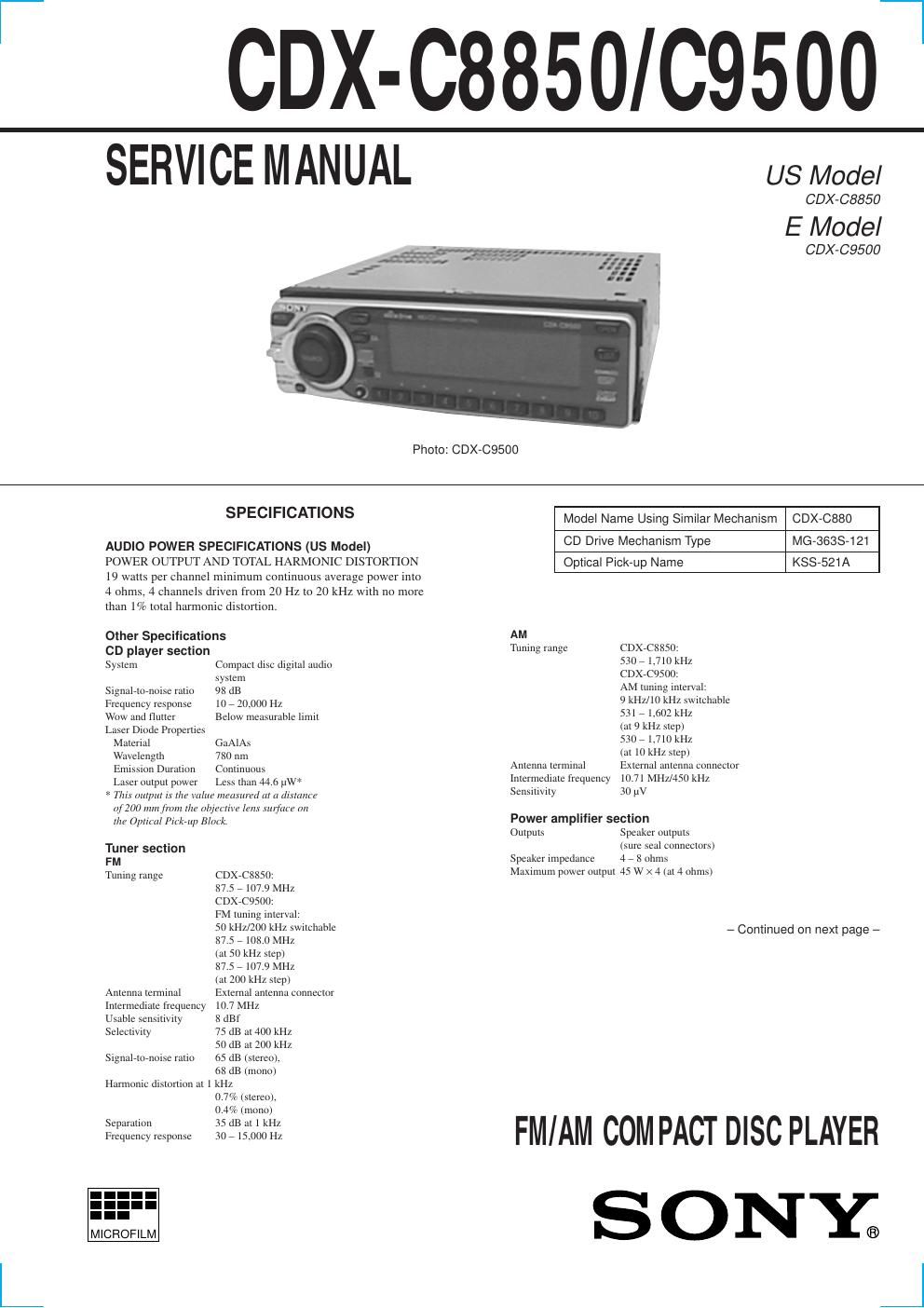

Sony cdx c 8850 service manual
This is the 30 pages manual for sony cdx c 8850 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony cdx c 8850 service manual (Ocr-read)
Page 1
23 SECTION 4 DIAGRAMS ¥ IC501 CXD2548R (DIGITAL SERVO, DIGITAL SIGNAL PROCESSOR) (SERVO BOARD) Pin No. Pin Name I/O Pin Description 1 SYSM I System mute input (Not used.) 2 RMUT1 O R-ch, Ò0Ó detection output. (ÒHÓ : ON, ÒLÓ : OFF) (Not used.) 3 LMUT2 O L-ch, Ò0Ó detection output. (ÒHÓ : ON, ÒLÓ : OFF) (Not used.) 4 CKOUT O Master clock frequency division output (Not used.) 5 VDD0 Ñ Digital power supply 6 SBSO O Serial output of sub-P to W. 7 EXCK I Clock input for SBSO read output. 8 SQCK I Clock input for SQSO read output. 9 SQSO O SubQ 80 bit, PCM peak and level data 16 bit output. 10 SENS O SENS output. Output to CPU. 11 SCLK I Clock input for SENS real data read. 12 DATA I Serial data input from CPU. 13 XLAT I Latch input from CPU. Latch serial data at the falling edge. 14 CLOK I Serial data transfer clock input from CPU. 15 XRST I System reset (ÒLÓ : Reset) 16 ACDT O Not used. 17 PWM1 I External control input of spindle motor. 18 XLON O Microcomputer extension interface (Output) (Not used.) 19 SPOA I Microcomputer extension interface (Input A) (Not used.) 20 WFCK O WFCK (Write Flame Clock) output 21 GTOP O GTOP output 22 XUGF O XUGF output (Not used.) 23 XPCK O XPLCK output (Not used.) 24 GFS O GFS output 25 RFCK O RFCK output 26 C2PO O C2PO output (Not used.) 27 XROF O XROF output 28 SCOR O ÒHÓ output at either detection, sub code sync S0 or S1. 29 MNT0 O MNT0 output (Not used.) 30 MNT1 O MNT1 output (Not used.) 31 MNT3 O MNT3 output (Not used.) 32 VSS1 Ñ Digital GND 33 DOUT O Digital-Out output 34 ATSK I For anti-shock. 35 MIRR O Mirror signal output (Not used.) 36 DFCT O Diffect signal output (Not used.) 37 FOK O Focus OK signal output 38 VDD1 Ñ Digital power supply 39 VPCO1 O Charge pump output for wideband EFM PLL. 40 VPCO2 O VCO2 charge pump output for wideband EFM PLL. 41 VCK.I I VCO2 oscillator input for wideband EFM PLL. 42 V16M O VCO2 oscillator output for wideband EFM PLL. 43 VCTL I VCO2 control input for wideband EFM PLL. 44 PCO O Charge pump output for master PLL. 45 FILO O Filter output for master PLL (slave = digital PLL). 46 FILI I Filter input for master PLL. 47 AVSS4 Ñ Analog GND 48 CLTV I VCO control voltage input for master. 49 AVDD4 Ñ Analog power supply 50 RFAC I EFM signal input 51 BIAS I Asymmetry circuit constant current input 4-1. IC PIN DESCRIPTIONS
Page 2
24 Pin No. Pin Name I/O Pin Description 52 ASY.I I Asymmetry comparate voltage input 53 ASY.O O EFM full-swing output (ÒLÓ : VSS, ÒHÓ : VDD) 54 VC I Center voltage input 55 FE I Focus error signal input 56 SE I Sled error signal input 57 TE I Tracking error signal input 58 CE I Center error signal input 59 RFDC I RF signal input 60 RFC I Condenser connection pin for LPF time constant of RF signal. 61 ADIO O OP amplifier output (Not used.) 62 AVSS3 Ñ Analog GND 63 IGEN I Current source reference resistor connection for OP amplifier. 64 AVDD3 Ñ Analog power supply 65, 66 TES2, 3 I TEST pin (Fixed at ÒLÓ.) 67 VSS2 Ñ Digital GND 68 TEST I TEST pin (Fixed at ÒLÓ.) 69 SFDR O Sled drive output 70 SRDR O Sled drive output 71 TFDR O Tracking drive output 72 TRDR O Tracking drive output 73 FFDR O Focus drive output 74 FRDR O Focus drive output 75 VDD2 Ñ Digital power supply 76 COUT O Track number count signal output (Not used.) 77 LOCK O Not used. 78 MDS O Servo control output of spindle motor. (Not used.) 79 MDP O Servo control output of spindle motor. 80 SSTP I Disc most inner track detection signal input 81 FSTO O 2/3 frequency division output of pins 103 and 104. 82 FSTI I Reference clock input for digital servo. 83 XTSL I XÕtal select input (ÒLÓ : 16.9344 MHz) 84 C4M O 4.2336 MHz output 85 WDCK O D/A interface. Word clock f = 2Fs 86 VDD3 Ñ Digital power supply 87 LRCK O D/A interface. LR clock f = Fs 88 LRCKI I LR clock input to DAC. (48 bit slot) (Connect to GND.) 89 PCMD O D/A interface. Serial data (2Õs COMP, MSB first) 90 PCMDI I Audio data input to DAC. (48 bit slot) (Connect to GND.) 91 BCK O D/A interface. Bit clock 92 BCKI I Bit clock input to DAC. (48 bit slot) (Connect to GND.) 93 EMPH O Not used. 94 EMPHI I De-emphasis ON/OFF of DAC. (ÒHÓ : ON, ÒLÓ : OFF) (Connect to GND.) 95 VSS3 Ñ Digital GND 96 AVSS1 Ñ L-ch, Analog GND. 97 AVDD1 Ñ L-ch, Analog power supply. 98 AOUT1 O L-ch, Analog output. (Not used.) 99 AIN1 I L-ch, OP amplifier input. (Connect to GND.) 100 LOUT1 O L-ch, LINE output. (Not used.) 101 AVSS1 Ñ L-ch, Analog GND. 102 XVDD Ñ Analog power supply for master clock. 103 XTAI I XÕtal oscillator input of master clock (16.9344 MHz). 104 XTAO O XÕtal oscillator output of master clock. (Not used.) 105 XVSS Ñ Analog GND for master clock. (Connect to GND.)
