Sony cdx 545 rf service manual
This is the 71 pages manual for sony cdx 545 rf service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony cdx 545 rf service manual (Ocr-read)

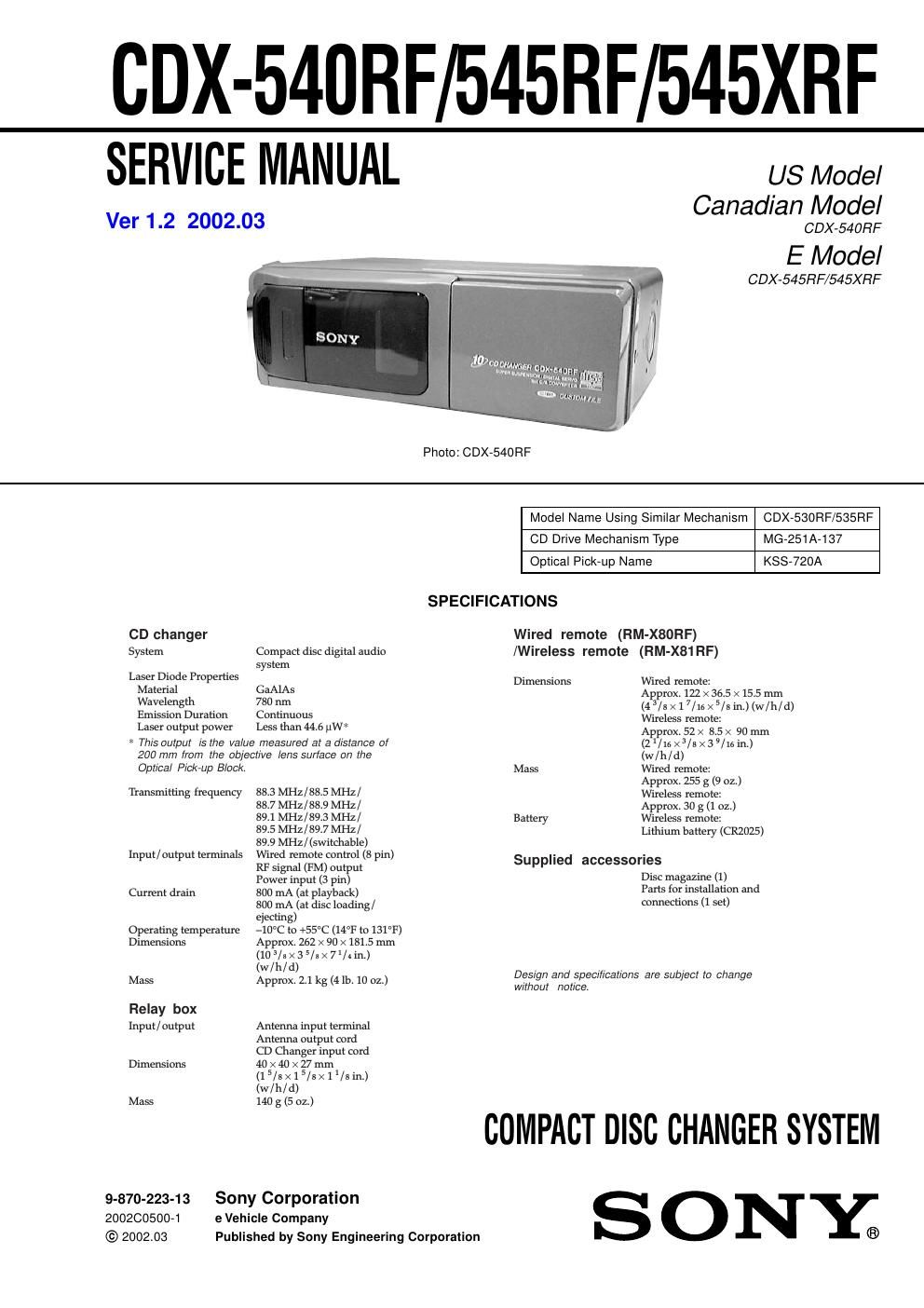

Page 1
2 ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY. TABLE OF CONTENTS 1. SERVICING NOTES ................................................ 3 2. GENERAL Location and Function of Controls ................................. 4 Operation ......................................................................... 6 Installation ....................................................................... 8 Connections ..................................................................... 9 3. DISASSEMBLY ......................................................... 10 4. MECHANISM DECK ASSEMBLY ................... 16 5. MECHANICAL ADJUSTMENT .......................... 18 6. ELECTRICAL CHECK .......................................... 19 7. DIAGRAMS 7-1. Block Diagram – SERVO Section – .............................. 21 7-2. Block Diagram – MAIN Section – ................................ 22 7-3. Note for Printed Wiring Boards and Schematic Diagrams ....................................................... 23 7-4. Printed Wiring Boards – RF/LSW Boards – ................. 24 7-5. Schematic Diagram – RF/LSW Boards – ...................... 25 7-6. Printed Wiring Boards – MAIN Board (Component Side) – .............................. 26 7-7. Printed Wiring Boards – MAIN (Conductor Side)/SW Boards – ....................... 27 7-8. Schematic Diagram – MAIN Board (1/2) – .................. 28 7-9. Schematic Diagram – MAIN (2/2)/SW Boards – ......... 29 7-10. Printed Wiring Boards – FM Board – ............................ 30 7-11. Schematic Diagram – FM Board – ................................. 31 7-12. IC Pin Function Description ........................................... 35 8. EXPLODED VIEWS ................................................ 37 9. ELECTRICAL PARTS LIST ............................... 43Notes on chip component replacement - Never reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be dam- aged by heat. Flexible Circuit Board Repairing - Keep the temperature of the soldering iron around 270 ˚C dur- ing repairing. - Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). - Be careful not to apply force on the conductor when soldering or unsoldering. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous ra- diation exposure.
Page 2
3 CDX-540RF/545XRF/545XRF SECTION 1 SERVICING NOTES NOTES ON HANDLING THE OPTICAL PICK- UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electro- static breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick-up block. Therefore, when checking the laser diode emis- sion, observe from more than 30 cm away from the objective lens. US/Canadian model: If the optical pick-up block is defective, please replace the whole optical pick-up block. Never turn the semi-fixed resistor located at the side of optical pick-up block. DISC MAGAZINE GETTING OUT PROCEDURE ON THE POWER SUPPLY IS OFF Remove the CASE (LOWER. T) beforehand 1) Press the lever (ML.S) assy in the direction of arrow A. 2) Removal the magazine assy. Note: Take out the magazine only when the tray is completely within the magazine. If the disk or tray is sticking out, turn on the power and eject the magazine. Lever (ML.S) Magazine assy A OPTICA L PICK-UP BLOCK SEMI-FIXED RESISTOR TEST DISC This set can playback a CD-R, CD-RW for audio use. When test this set, use the following test disc. Test disc for CD-R: TCD-R082LMT (Part No.: J-2502-063-1) Notes on CD-R discs You can play CD-Rs (recordable CDs) designed for audio use on this unit. Look for this mark to distinguish CD-Rs for audio use. This mark denotes that a disc is not for audio use. Some CD-Rs (depending on the equipment used for its recording or the condition of the disc) may not play on this unit. You cannot play a CD-R that is not finalized*. *A process necessary for a recorded CD-R disc to be played on the audio CD player. power supply cord (J-2502-058-2) compact disc changer RF output cord (J-2502-058-1) wirerd remote commander JIG ON REPAIRING When repairing this set, connect the jig (cord) for RF output ex- tract (Part No. J-2502-058-1) and power supply (Part No. J-2502- 058-2) as the figure shown below. Ver 1.2
