Sony cdx 5070 service manual

This is the 3 pages manual for sony cdx 5070 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 3
sony cdx 5070 service manual

Extracted text from sony cdx 5070 service manual (Ocr-read)

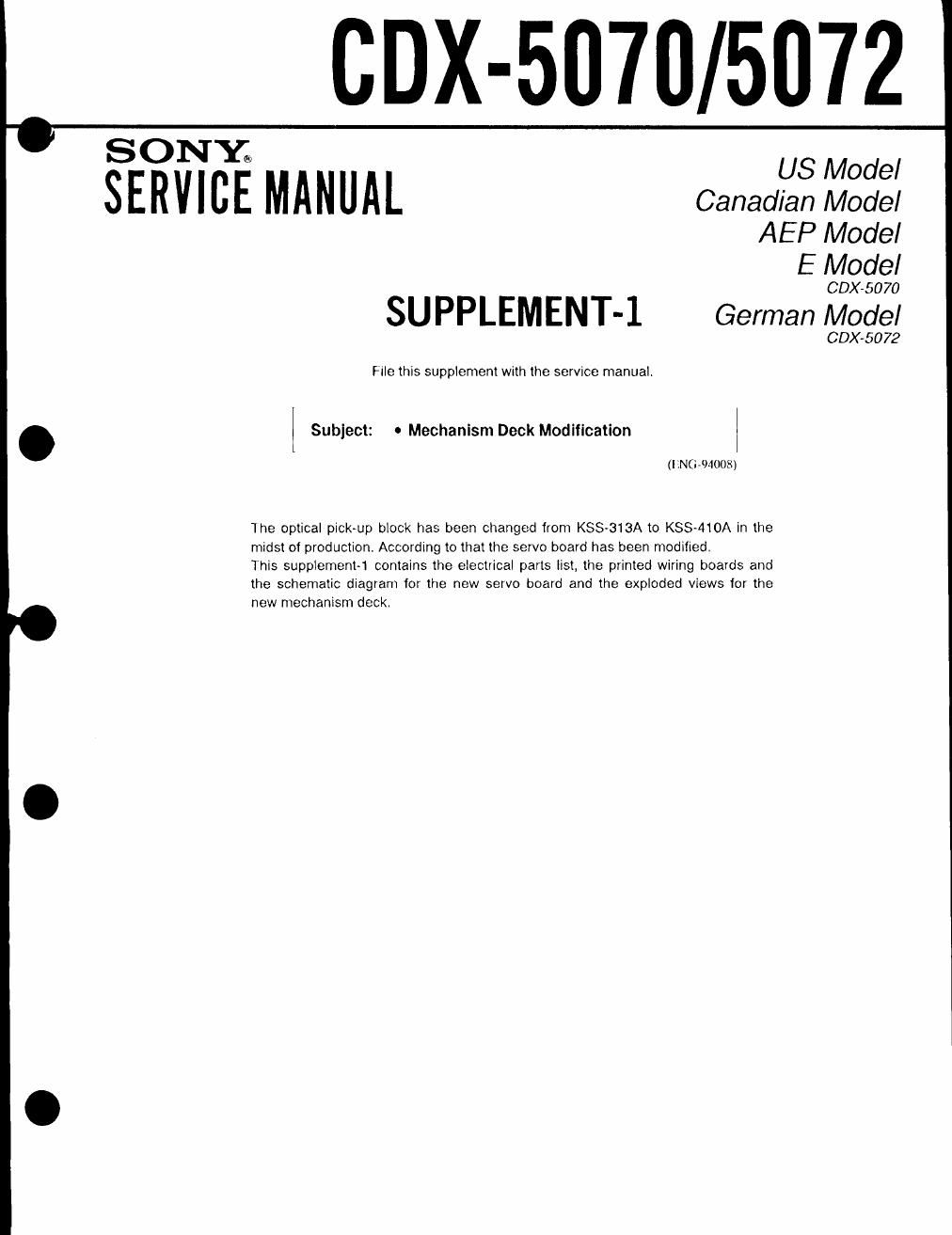

Page 1

CDX-5070/5072

SERVICE MANUAL Cam/ZWSZZ;

AEP Model
E Model

CDX-5070

3U PPLEMENT-l German Model

CDX-5072

Hie this supplement With the service manual,

I Subject: - Mechanism Deck Modification 1
l
«memos;

lhe optical pickup block has been changed from KSS-313A to KSS-410A in the
midst ol production. According to that the servo board has been modified

This supplement-1 contains the electrical parts list, the printed wiring boards and
the schematic diagram for the new servo board and the exploded views for the
new mechanism deck.
