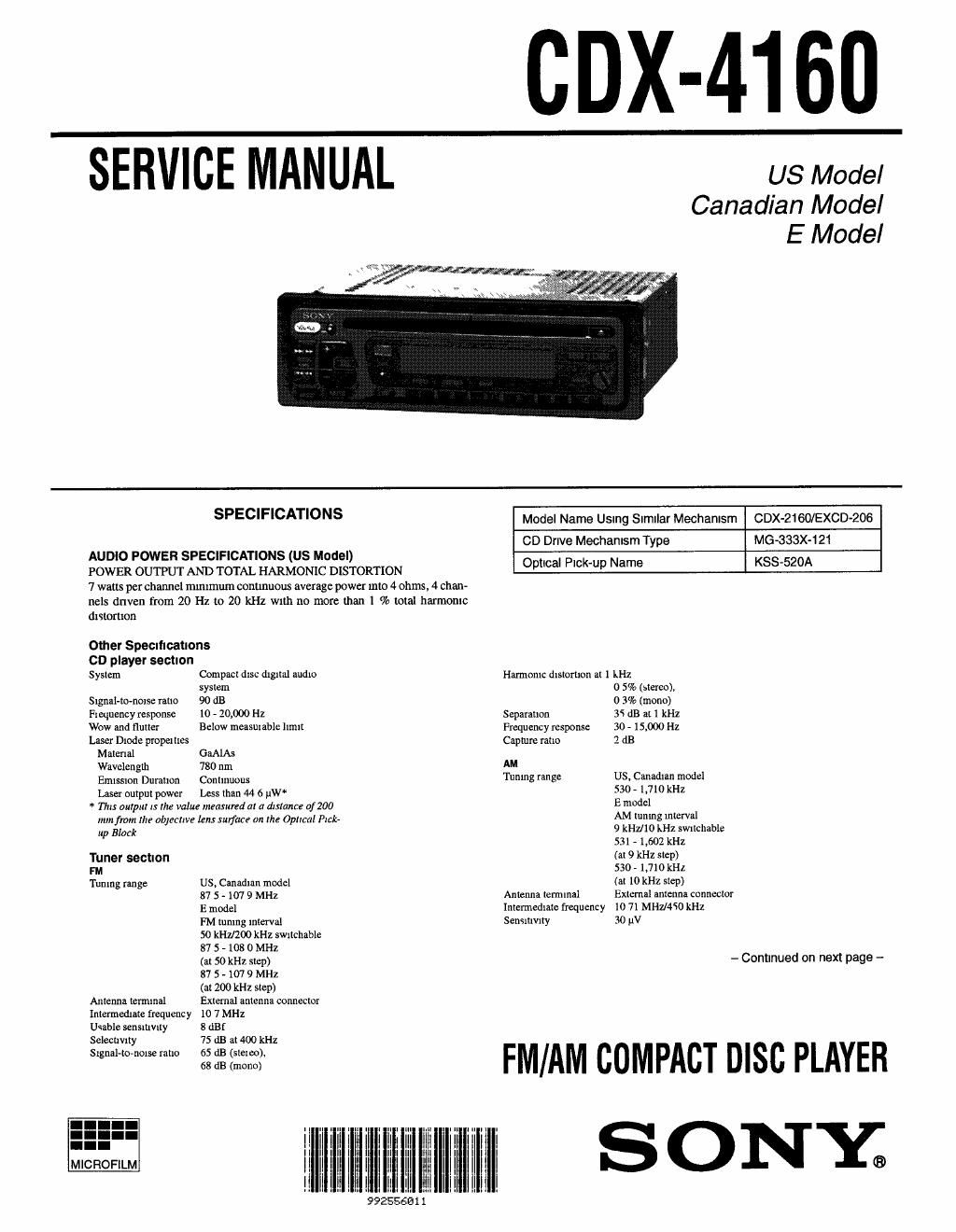

Page: 1 / 35
sony cdx 4160 service manual

Extracted text from sony cdx 4160 service manual (Ocr-read)


Page 2

Power amplmer section

Outputs Speaker outputs
(sure seal connectors)

Speaker Impedance 4 - 8 ohms

Maxrmun) power output 35 W x 4 (at 4 ohms)

General

Outputs Lme output (2)
Power antenna relay
control/Power amphfrer
control lead

Bass :10 dB at 100 HZ
Treble :10 dB at 10 kHz

12 v DC car battery
(negattve ground)

Approx 188 x 58 x 180 mm
(7 uzmex 7 mm)
(will/d)

Approx 183 x 53 X 163 mm
(7 mx'. r/sx6 mm)
(w/h/d)

Mass Approx 1 3 kg (7. lb 14 oz)
Supplred accessones Parts for tnstallanon and
connectrons (1 set)

Front panel case (1)

Tone controls
Power requrrements

Dtmcnsmns

Mounting drmensron

Dmgn and :pmficanans are Jubjecl to change wnhom
"0111 1

SERVICE NOTE

CAUTION

Use of controls or adjustments or performance of proce-
dures other than those specrfred herem may result In haz-
ardous radtatron exposure

Notes on Chlp Component Replacement

I Never reuse a dtsconnected chtp component

I Nottce that the mmus stde of a tantalum capacrtor may he dam-
aged by heat

NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR
BASE UNIT

The laser dlode 1n the optical ptck-up block may surfer electrostattc
breakdown because of the potenttal dtfference generated by the
charged electrostatrc load, etc on clothtng and the human body
Dunng repatr, pay attenuon to electrostattc breakdown and also use
the procedure In the prtnted matter WthIl 1s Included 1n the repatr
parts

The flextble board 1s eas1ly damaged and should be handled wrth
care

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on thls model Is concentrated so as to be focused on
the drsc reflective surface by the ObjeCLlVC lens m the optlcal pick-up
block Therefore, when checking the laser dtode emtsston, observe
from more than 30 cm away from the objectrve lens

NOTES ON PICK-UP FLEXIBLE BOARD

The plck-up flexxble board to this set 15 secured to the opttcal ptck-up
wlth an adhesrve tape Once the tape IS removed, an adhermg force
becomes weak, and It cannot be reused

Therefore, 1f the optrcal ptck-up lS replaced, replace also the prck-up
llextble board wrth a new one

NOTES ON CLEANING THE OBJECTIVE LENS

cotton swabs
objective lens

Z-aXIs actuator

optical pick-up

Z-aXIs cover
slide base

Apply CD lens cleaner 3-4 (Part No J-2501-000-A) to cotton swabs
(narrow type) (Part No J-2501-023-A) to be ltghtly wet Use a force
(about 5 g (0 18 02)) to make the objectrve lens 1n contact wtth the
bottom ltghtly, and clean the lens by sprrals as followmg below

Replace the cotton swab and repeat thts cleanmg two or three nmes

surface of objective lens

Notes:

Do not force to push the objecttve lens Otherwtse, the plate spnng
supportmg the objecnve lens wrll be bent, causmg a detenorated RF
waveform

Never touch anythmg other than the ODJCCIIVC lens Otherwlsc, a stg-
mftcant detenoratton occurs 1n the RF waveform

SAFETY-RELATED COMPONENT WARNING"

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN THE
PARTS LIST ARE CRITICAL TO SAFE OPERATION REPLACE
THESE COMPONENTS WITH SONY PARTS WHOSE PART
NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN
SUPPLEMENTS PUBLISHED BY SONY

ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE"

LES COMPOSANTS IDENTIFIES PAR UNE MAROUE A. SUR LES
DIAGRAMMES SCHEMATIOUES ET LA LISTE DES PIECES SONT
CRITIQUES POUR LA SECURITE DE FONCTIONNEMENT NE
REMPLACER CES COMPOSANTS QUE PAR DES PIECES SONY
DONT LES NUMEROS SONT DONNES DANS CE MANUEL OU
DANS LES SUPPLEMENTS PUBLIES PAR SONY
