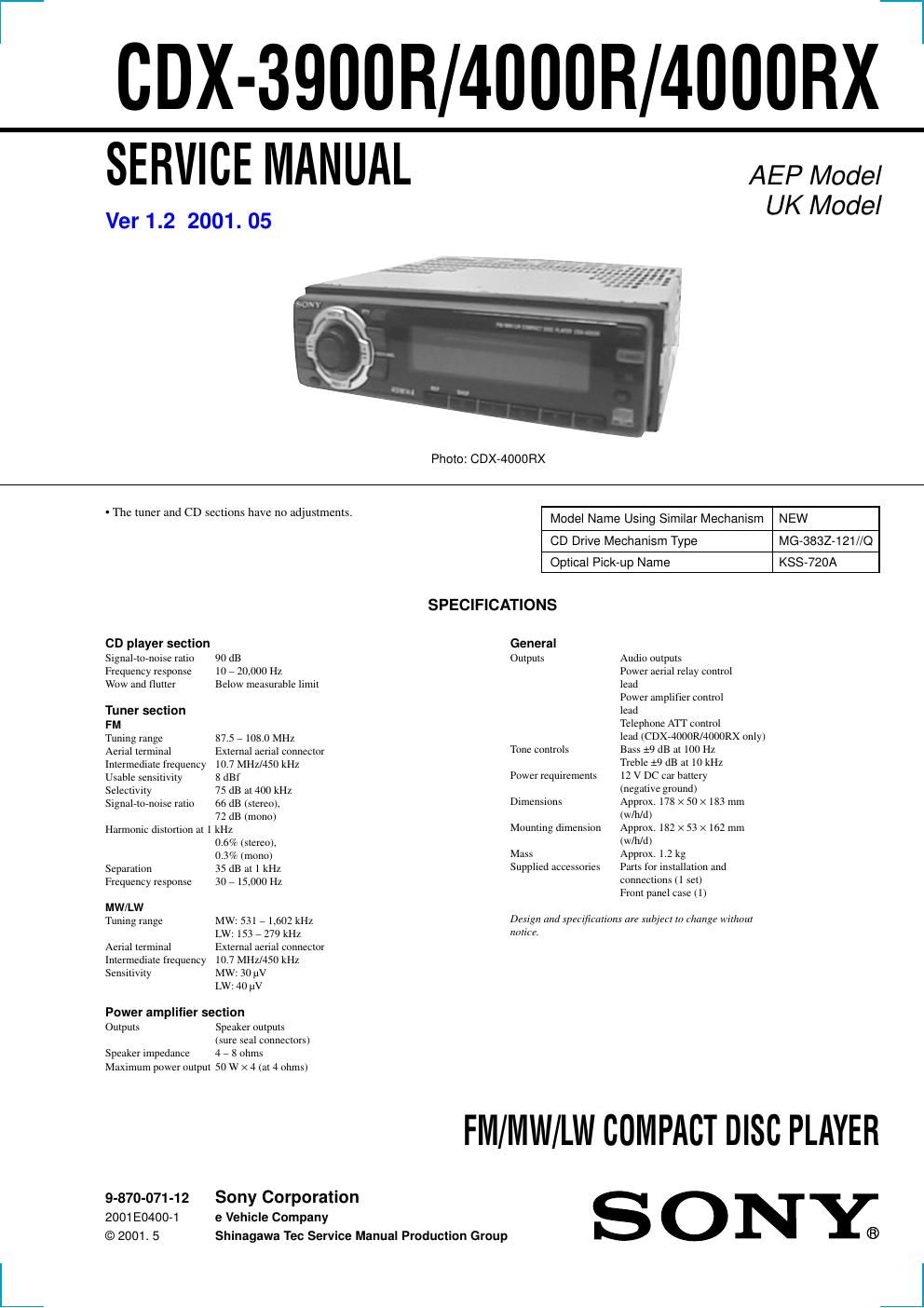

Sony cdx 3900 r service manual
This is the 76 pages manual for sony cdx 3900 r service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony cdx 3900 r service manual (Ocr-read)
Page 1
2 Ver 1.1 2000. 08 TABLE OF CONTENTS 1. GENERAL Location of controls ................................................................. 3 Getting Started ......................................................................... 3 Setting the clock ...................................................................... 3 CD Player ................................................................................ 3 Radio ....................................................................................... 4 RDS ......................................................................................... 4 Other Functions ....................................................................... 6 Additional Information ............................................................ 7 Connections ............................................................................. 8 2. DISASSEMBLY 2-1. Sub Panel Assy .................................................................. 10 2-2. CD Mechanism Block ....................................................... 10 2-3. Main Board ....................................................................... 11 2-4. Heat Sink ........................................................................... 11 2-5. Chassis (T) Assy ................................................................ 12 2-6. Lever Assy ......................................................................... 12 2-7. Servo Board ....................................................................... 13 2-8. ARM Roller Assy .............................................................. 13 2-9. Chassis (OP) Assy ............................................................. 14 2-10. Optical Pick-up Block ....................................................... 14 3. DIAGRAMS 3-1. IC Pin Descriptions ........................................................... 15 3-2. Block Diagram –CD Section– ........................................... 21 3-3. Block Diagram –Tuner Section– ....................................... 22 3-4. Block Diagram –Display Section– .................................... 23 3-5. Circuit Boards Location .................................................... 23 3-6. Printed Wiring Boards –CD Mechanism Section– ............ 24 3-7. Schematic Diagram –CD Mechanism Section (1/2)– ....... 26 3-8. Schematic Diagram –CD Mechanism Section (2/2)– ....... 27 3-9. Printed Wiring Board –Main Section– .............................. 28 3-10. Schematic Diagram –Main Section (1/3)– ........................ 30 3-11. Schematic Diagram –Main Section (2/3)– ........................ 31 3-12. Schematic Diagram –Main Section (3/3)– ........................ 32 3-13. Schematic Diagram –Sub (CD) Section– .......................... 33 3-14. Printed Wiring Board –Sub (CD) Section– ....................... 34 3-15. Printed Wiring Board –Key Section– ................................ 35 3-16. Schematic Diagram –Key Section– ................................... 36 4. EXPLODED VIEWS 4-1. Chassis Section ................................................................. 40 4-2. Front Panel Section ........................................................... 41 4-3. CD Mechanism Section (1) ............................................... 42 4-4. CD Mechanism Section (2) ............................................... 43 4-5. CD Mechanism Section (3) ............................................... 44 5. ELECTRICAL PARTS LIST ........................................ 45 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, ob- serve from more than 30 cm away from the objective lens. Notes on Chip Component Replacement -Never reuse a disconnected chip component. -Notice that the minus side of a tantalum capacitor may be dam- aged by heat. SERVICE NOTES This product is classified as a CLASS 1 LASER PRODUCT. This label is located on the bottom of the chassis. This label is located on the drive unit's internal chassis. When replacing the chassis (T) of mechanism deck which have the CAUTION LABEL attached, please be sure to put a new CAUTION LABEL (3-223-913-11) to the chassis (T).
Page 2
3 SECTION 1 GENERAL This section is extracted from instruction manual.
