Sony cdx 3700 service manual
This is the 4 pages manual for sony cdx 3700 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony cdx 3700 service manual (Ocr-read)

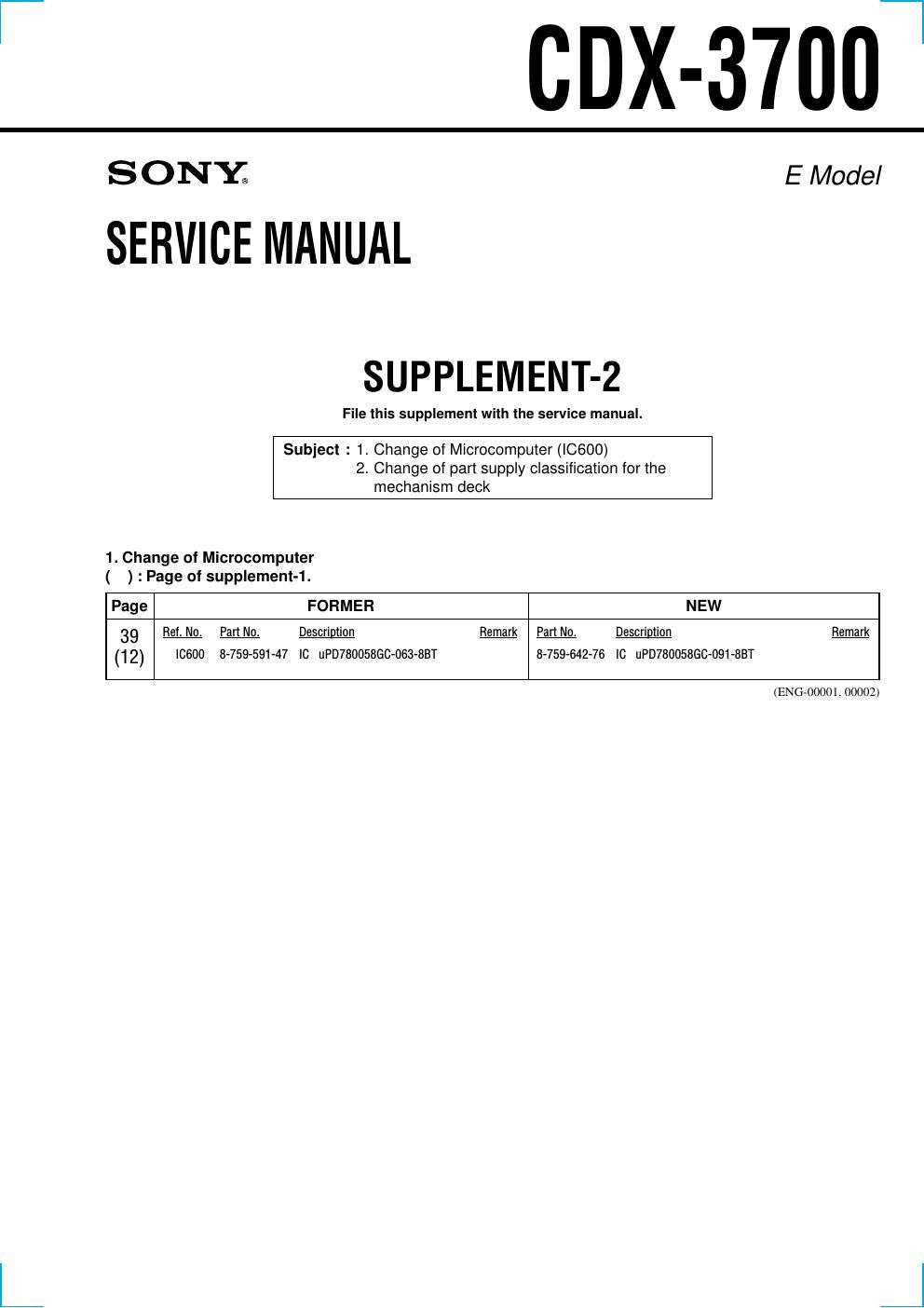

Page 1
2 B 111 112 114 113 102 103 103 103 104 104 104 107 108 106 108 109 109 110 105 114 101 115 116 B ACC A #4 M103#5 not supplied 2. Change of part supply classification for the mechanismdeck 2-1. CD MECHANISM SECTION (1) (MG-310-153) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 101 X-3378-793-1 ARM ASSY, ROLLER *102 3-032-327-02 LEVER (LE.L) 103 3-037-492-01 DAMPER (P) 104 3-033-808-01 SCREW (M2X4.0) 105 3-042-644-01 SPRING (LEVER DLR) 106 3-032-373-01 SPRING (SPM), TENSION 107 3-033-806-01 SCREW (M2X2.5) 108 3-042-642-01 SPRING (LEVER D) 109 3-032-351-01 SPRING (FL), TENSION110 3-032-352-01 SPRING (ANGLE), TENSION 111 X-3378-335-3 CHASSIS (M) COMPLETE ASSY *112 1-670-827-11 SW BOARD 113 3-033-807-01 SCREW (M2X3.0) 114 3-032-359-01 SPRING (ROLLER) 115 3-039-600-02 ROLLER (SS) 116 3-933-152-02 ROLLER (S) M103 X-3378-888-1 MOTOR ASSY, LOADING (LOADING)
