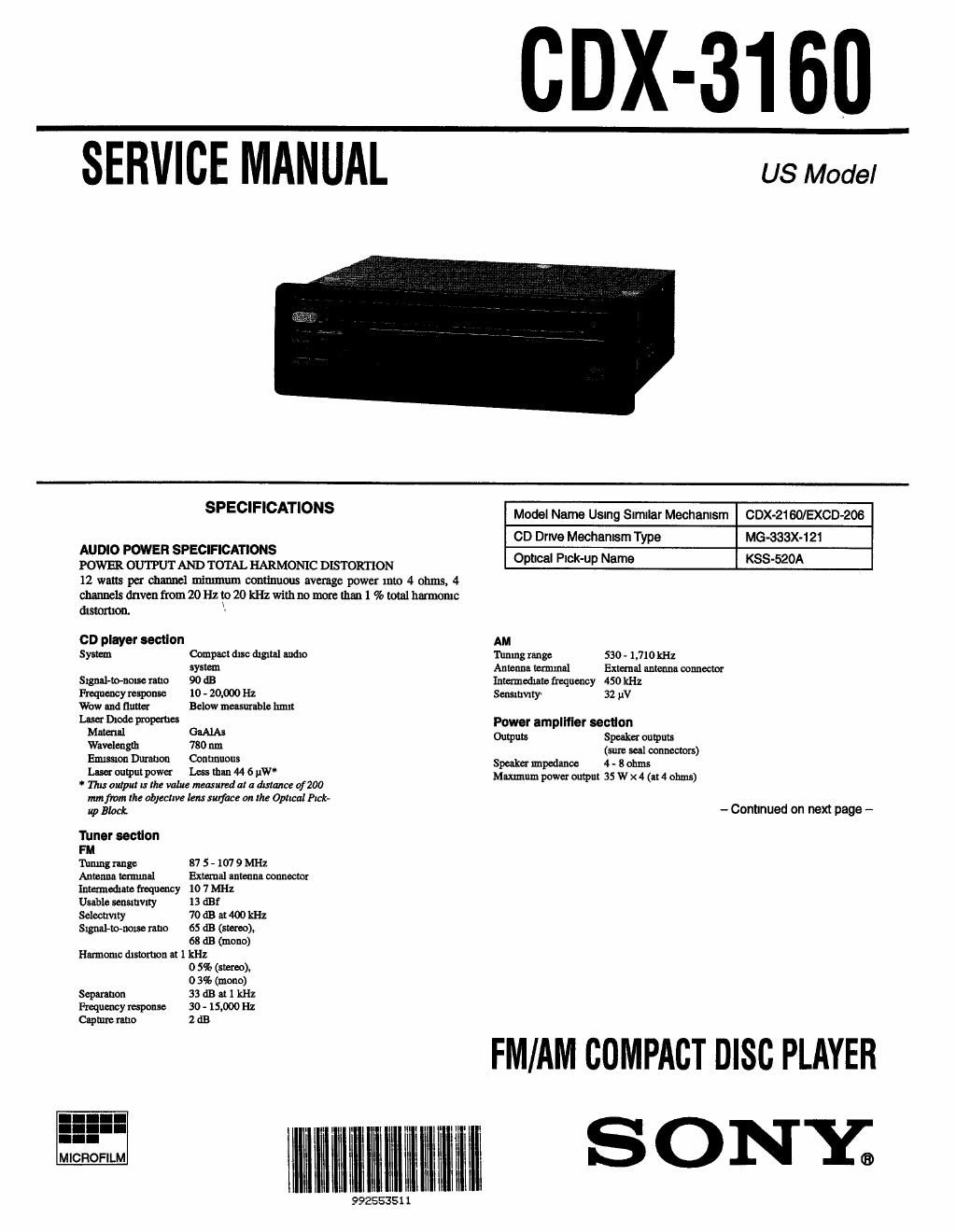

Page 1

COX-3160

SERVICE MANUAL us Model

SPEC'HCATIONS Model Name Using Similar Mechanism CDX-2160/EXCD-206
CD Drive Mechanism Type MG-333X-121
AUD10 POWER SPECIFICATIONS 0 t | P k N
POWER OUTPUT AND TOTAL HARMONIC DISTORTION p 'ca "2 '"p ems K5352

12 watts per channel minimum cominnws average power mm 4 ohms, 4
channelsdnvenfmmZOI-IszOksznthnomnreman 1 %ww1harmomc

dismon. ,

CD player section AM

System Campus: dare drgrml Indro 'mmng range 530 - 1,710 kHz

syrtern Antenna (annual External antennn wnnecwr

SJgnnl-w-nmse man 90 dB Intermedute frequency 450 kHz

Frequency response 10 - 20.000 Hz Sensmvny- 32 1N

Wow and flutter Bolow measurable Innn

Laser DIM» WE Power ampllfler section
Mm W5 Gums Speaker outpms
Wavelength 780 nm (sure seal connectors)
Brannon Durwnn Conununus Speaker 111113055309 4 _ 3 ohms
LI 1 power Less dun 44 6 uW* Maximum power output 35 W x 4 (a: 4 ohms)

Thu output I: the value msm'ured a: a finance of 200
mmfimn the 0171mm: lens 5101322 on [he Opncal Pick-

up Block -- Continued on next page -
Tuner sacfion
FM
Tunmg range 87 s - 107 9 MHz
Antenna Isrmmd Banana! antenna connector

Intermedme frequency 10 7 Mi:
Usable renmmty 13 GM

Sci/actuary 70 dB at 400 kHz
SrgnnHo-norse nun 65 dB (sumo),

68 dB (mono)
Hummus drswruon It 1 kHz

0 5% memo),

D 3% (mono)
Sepmuon 33 dB at 1 kHz
Frequemy response 30 - 15,000 Hz
Canture mo 2 as

FM/AM COMPACT DISC PLAYER

UHHII'HIINII1%ill'lllilliliflliiilll S 0NY®

9925535 1 1

Page 2

General
Outputs Line output (2)
Power antenna relay control!
Power amplifier control
lead
Tone controls Bus :10 dB at 100 Hz
Treble :IOdB at 10 kHz
Powe- requirements 12 V DC car battery
(negative ground)
Dimensions Approx 188 x 58 x 180 mm
(7mx23/8x7i/8rn)
(w/h/d)
Mounting dimension Approx 183 x 53 x 163 nun
(7 ll4x21/8x6mrn)
(w/h/d)
Muss AppmxlSltgaleo'L)
Supplied neoessones Parts for installation and
ponnechons (1 set)
Front panel one (I)
Design and .rpecrfimrimu are subject to change Without
notice
SERVICE NOTE
CAUTION

Use of controls or adjustments or performance of proce-
dures other than those specified herein may result in haz-
ardous radiation exposure.

Notes on Chip Component Replacement

0 Never reuse a disconnected chip component

0 Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.

NOTES ON HANDLINGTHE OPflCAL PICK-UP BLOCK 0R
BASE UNIT

The laser diode in the optical pick-up block may suffer electrostatic
breakdown because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body
During repair, pay attention to electrostatic breakdown and also use
the procedure in the printed matter which is included in the repair
parts

The flexible board is easily damaged and should be handled with
care

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick-up
block. Therefore, when checking the laser diode emrssron, observe
from more than 30 cm away from the objective lens

NOTES ON PICK-UP FLEXIBLE BOARD

The pick-up flex1b1e board in this set is secured to the optical pick-up
With an adhesive tape Once the tape is removed, an adhering force
becomes weak, and it cannot be reused

Therefore, if the optical pick-up is replaced, replace also the pick-up
flexible board With a new one

NOTES ON CLEANING THE OBJECTIVE LENS

cotton swabs
objective lens

optical pick-up 2-aXIs cover

sllde base

Apply CD lens cleaner 3-4 (Part No.:J-2501-000-A) to cotton swabs
(narrow type) (Part No.1].2501-0Q3-A) to be lightly wet. Use a force
(about 5 g (0 18 02)) to make the objective lens in contact with the
bottom lightly, and clean the lens by spirals as followmg below.

Replace the cotton swab and repeat this cleaning two or three times.

surname of objective lens

Notes:

Do not force to push the objective lens. Otherwise, the plate spring
supporting the objective lens Will be bent, causuig a deteriorated RF
waveform

Never touch anything other than the objective lens. Otherwise, a
significant deterioration occurs in the RF waveform.

SAFETY-RELATED COMPONENT WARNINGII

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN THE
PARTS LIST ARE CRITICAL T0 SAFE OPERATION. REPLACE
THESE COMPONENTS WITH SONY PARTS WHOSE PART
NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN
SUPPLEMENTS PUBLISHED BY SONY.
