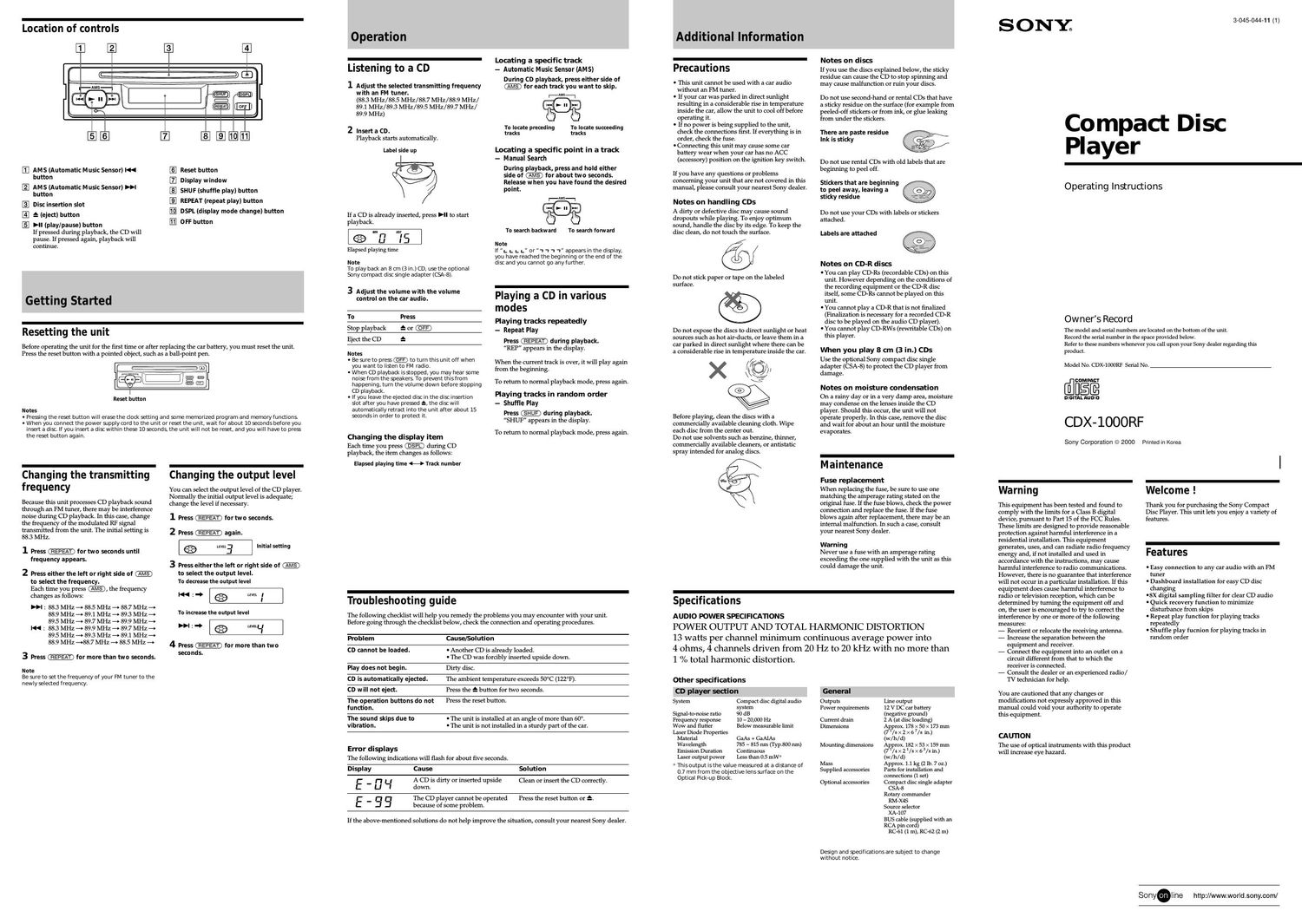

Sony cdx 1000 rf owners manual

Page 1

L R AUDIO OUT T O P TOP Installation Precautions - Do not tamper with the four holes on the upper surface of the unit. They are for tuner adjustments to be done only by service technicians. - Choose the installation location carefully so that the unit will not hamper the driver during driving. - Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight or hot air from the heater, or where it would be subject to dust, dirt, or excessive vibration. - Use only the supplied mounting hardware for a safe and secure installation. Mounting example Installation in the dashboard 2 With the TOP marking upBend these claws, if necessary. 1 43 DashboardFire wall To support the unit Mounting the unit in a Japanese car You may not be able to install this unit in some makes of Japanese cars. In such a case, consult your Sony dealer. TOYOTANISSAN to dashboard/center console Bracketto dashboard/center console 7 max. size 5 × 6 mm (7/32 × 1/4 in.) 7 max. size 5 × 6 mm (7/32 × 1/4 in.) Note To prevent malfunction, install only with the supplied screws 7. 1 3 max. size M4 × 6 mm (3/16 × 1/4 in.) 2 4 Bracket 7 max. size 5 × 6 mm (7/32 × 1/4 in.) 7 max. size 5 × 6 mm (7/32 × 1/4 in.) 7 6 6 7 max. size 5 × 6 mm (7/32 × 1/4 in.) 7 6 1 2 Bracket Bracket Existing parts supplied with your car Mounting angle adjustment Adjust the mounting angle to less than 60°. 1 10 mm ( 13/32 in.)4 mm ( 3/16 in.) 90º 2 9 Insert the supplied tool 9 between the unit and the frame, and rotate 90° to release the hidden mounting spring. Repeat on the opposite side and remove the frame.Insert a flathead screwdriver between the bracket and mounting spring. Gently pry the spring toward the unit while pulling the unit out a little. Repeat on the opposite side and remove the unit. Removing the unit 1 Note To prevent malfunction, install only with the supplied screws 7. Caution - This unit is designed for negative ground 12 V DC operation only. - Before making connections, disconnect the ground terminal of the car battery to avoid short circuits. - Connect the yellow and red power input leads only after all other leads have been connected. - Be sure to connect the red power input lead to the positive 12 V power terminal which is energized when the ignition key is in the accessory position. -Run all ground wires to a common ground point. - Connect the yellow cord to a free car circuit rated higher than the units fuse rating. If you connect this unit in series with other stereo components, the car circuit they are connected to must be rated higher than the sum of the individual components fuse rating. If there are no car circuits rated as high as the units fuse rating, connect the unit directly to the battery. If no car circuits are available for connecting this unit, connect the unit to a car circuit rated higher than the units fuse rating in such a way that if the unit blows its fuse, no other circuits will be cut off. - The use of optical instruments with this product will increase eye hazard. Reset button When the installation and connections are complete, be sure to press the reset button with a ball-point pen, etc. Parts for Installation and Connections The numbers in the list are keyed to those in the instructions. 5 1 × 2 2 6 73 8 4 × 4 Caution Cautionary notice for handling the bracket 1. Handle the bracket carefully to avoid injuring your fingers. 9 Connection example From car antenna Red YellowBlack Blue/White AUDIO OUT 8 TO P TO P FuseAMP REMOTE OUT Max. supply current 0.3 A REMOTE IN Speaker system Car audio Antenna connector* 3 Rotary commander RM-X4S* 2 (not supplied)Fuse To a metal point of the carFirst connect the black ground lead, then connect the yellow and red power input leads. To the +12 V power terminal which is energized at all times Be sure to connect the black ground lead first. To the +12 V power terminal which is energized in the accessory position of the ignition key Be sure to connect the black ground lead first. Existing parts supplied with your car Reset button DSPL SHUF AMS REPEAT OFF Connections 0.5 m (1 ft. 8 in.) 0.5 m (1 ft. 8 in.) 0.5 m (1 ft. 8 in.)0.5 m (1 ft. 8 in.) 1.9 m (6 ft. 3 in.) 0.5 m (1 ft. 8 in.)* 1You can only connect a car audio which has both a remote amplifier input (AMP REMOTE IN) and an audio input (AUDIO IN). Note Do not connect an external amplifier to the audio output (AUDIO OUT) of this unit. Otherwise, the volume of the connected speakers cannot be adjusted. If you have a Sony car audio with the Sony BUS terminal, the optional source selector XA-107 can be used in your system.max. size 5 × 6 mm ( 7/32 × 1/4 in.) RCA pin cord (not supplied)To AUDIO IN of the car audio* 1 To AMP REMOTE IN of the car audio* 1 BUS CONTROL IN AUDIO IN AUDIO OUT AUDIO IN AUDIO OUT MASTER Sony car audio Source selector XA-107 CDX-1000RFWith the TOP marking up 5 *2You can also control the following functions with the rotary cammander RM-X4S: Power on – Press SOURCE. Power off – Press OFF. Locate a specific track – Rotate the SEEK/AMS control momentarily and release. Locate a specific point within a track – Rotate the SEEK/AMS control and release when the desired point is found. Adjust the volume – Rotate the volume control. * 3An adaptor (optional) may be necessary for your car and car audio system. In such a case, consult your dealer. 182 mm (7 1/4 in.) 53 mm (2 1/8 in.) CDX-1000RFCar audio with FM tuner CDX-1000RFCar audio with FM tuner
