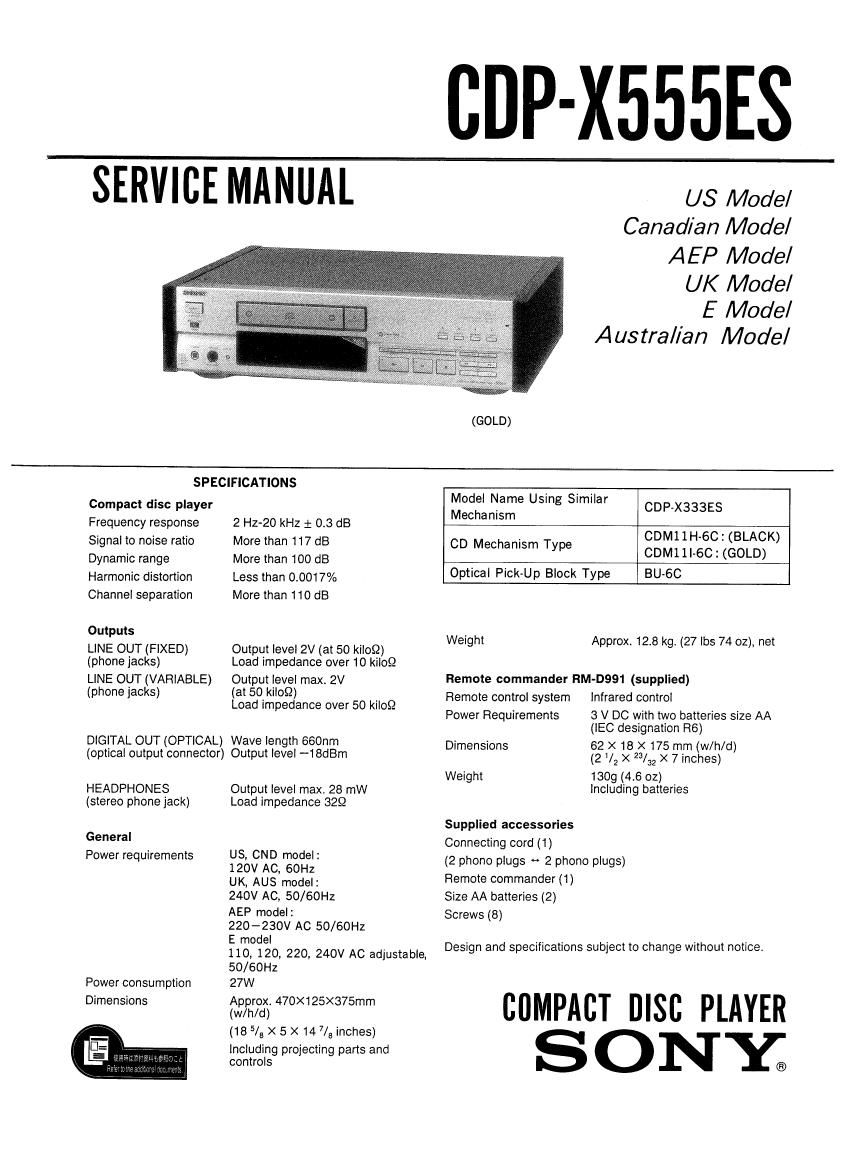

-X555ES

SERVICE MANUAL

US Model
Canadian Model
AEP Model

UK Model

E Model
Austral/an Model

(GOLD)

SPECIFICATIONS

Compact disc player
Frequency response
Signal to noise ratio
Dynamic range
Harmonic distortion
Channel separation

2 Hz-2O kHz 1 0.3 dB
More than 117 dB
More than 100 dB
Less than 0.0017%
More than 110 dB

Outputs
LINE OUT (FIXED) Output level 2V (at 50 kiloQ)
(phone jacks) Load impedance over 10 kiloQ
LINE OUT (VARIABLE) Output level max. 2V
(phone jacks) (at 50 kiloQ)

Load impedance over 50 kilos}
DIGITAL OUT (OPTICAL) Wave length 660nm

(optical output connector) Output level -18dBm

HEADPHONES
(stereo phone jack)

Output level max. 28 mW
Load impedance 329

General

Power requirements U51 CND model:

120V AC, 60HZ

UK, AUS model:

240V AC, 50/60Hz

AEP model:

220-230V AC 50/60HZ

E model

110, 120V 220, 240V AC adjustable,
50/ 60Hz

27W

Approx. 470x125><375mm
(w/h/d)

(18 5/5 X 5 X14 7/8 inches)

Including projecting parts and
controls

Power consumption
Dimensions

Model Name Using Similar

Mechanism GDP-x333Es

CDMllH-6C: (BLACK)

CD meChanism Type CDMlll-6C: (GOLD)

Optical Pick-Up Block Type BU-6C

Weight Approx. 12.8 kg. (27 lbs 74 oz), net
Remote commander RM-D991 (supplied)
Remote control system Infrared control

Power Requirements 3 V DC with two batteries size AA
(lEC designation R6)

Dimensions 62 X 18 X 175 mm (w/h/d)
(2 /2 X 23/32 X 7 inches)
Weight 1309 (46 oz)

Including batteries

Supplied accessories
Connecting cord (1)

(2 phono plugs » 2 phono plugs)
Remote commander (1)

Size AA batteries (2)

Screws (8)

Design and specifications subject to change without notice,

coMPAci Disc PLAYER
SONE

Page 2

CDP-X555ESJ

SAFETY CHECK-OUT (US Model)

After correcting the original service problem,
perform the following safety check before releasing
the set to the customer:

Check the antenna terminals, metal trim, metallized
knobs, screws, and all other exposed metal parts for
AC leakage. Check leakage as described below.

LEAKAGE TEST

The AC leakage from any exposed metal part to
earth ground and from all exposed metal parts to any
exposed metal part having a return to chassis, must
not exceed 0.5 mA (500 microampers). Leakage
current can be measured by any one of three
methods.

It A commercial leakage tester, such as the
Simpson 229 or RCA WT-540A. Follow the
manufacturers instructions to use these instru»
ments.

to

A battery-operated AC milliammeterl The Data
Precision 245 digital multimeter is suitable for
this job.

3. Measuring the voltage drop across a resistor by
means of a VOM or battery-operated AC volt-
meter. The limit" indication is 0.75V, so
analog meters must have an accurate low-
voltage scale. The Simpson 250 and Sanwa
SH-63Trd are examples of a passive VOM that
is suitable. Nearly all battery operated digital
multimeters that have a 2V AC range are
suitable. (See Fig. A)

To Exposed Metal
Parts on Set

AC
0.15m §I.5kn / voltmeter
(0.75 V)

'%' Earth Ground

Fig, A, Using an AC voltmeter to check AC leakage.

SAFETY-RELATED COMPONENT WARNINGI!

COMPONENTS IDENTIFIED BY MARK A 0R DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.

For the United Kingdom and
European countries
This Compact Disc player

CLASS 1 LASER PRODUCT

LASER product.

LUOKAN 1 LASERLAITE The CLASS 1 LASER

" KLASS 1 LASERAPPARAT

on the rear exterior.

NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT

The laser diode in the optical pick-up block may suffer
electrostatic breakdown because of the potential di-
ference generated by the charged electrostatic load,
etc. on clothing and the human body,

During repair, pay attention to electrostatic break-
down and also use the procedure in the printed matter
which is included in the repair parts.

The flexible board is easily damaged and should be
handled with care.

NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to
be focused on the disc reflective surface by the objec-
tive lens in the optical pick-up block. Therefore, when
checking the laser diode emission, observe from more
than 300m away from the objective lens.

MODEL IDENTIFICATION
-Model Number Label-

SONYo MODEL N0. CDP-X555ES

COMPACT DISC PLAYER

WWW

US, CND model: AC: 120V 60Hz 27W
AEP model: AC: 220-230V~50/60Hz
UK, AUS model: AC: 240V~50l60Hz
E model: AC: 110, 120, 220, 240V~50/60HZ 27W

CND : Canadian model
AUS : Australian model

ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE!

LEs COMPOSANTS IDENTIFIES PAR UNE MAROUE A
sun LEs DIAGRAMMES SCHEMATIQUES ET LA LISTE
DES PIECES SONT CRITIouEs POUR LA sEcunITE
DE FONCTIONNEMENT. NE REMPLACER CES com-
POSANTS QUE PAR DEs PIECES SONY DONT LES
NUMERos SONT DoNNEs DANS CE MANUEL ou
DANS LEs SUPPLEMENTS PUBLIES PAR SONY.

%2_

is classified as a CLASS 1

PRODUCT label is located
