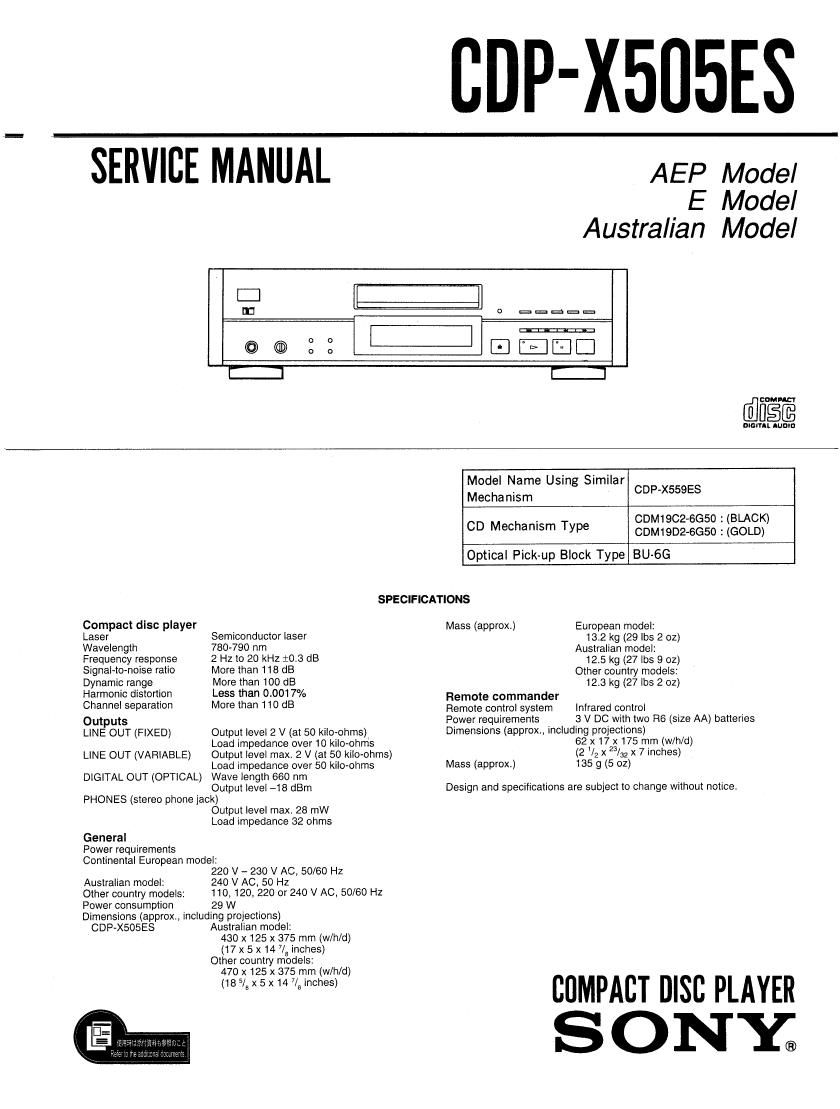

Sony CDP X505 ES Service Manual

Page 2

TABLE OF CONTENTS
m m has
SECTION 1. GENERAL
Identifying the Parts
SECTION 2. ELECTRICAL BLOCK CHECKING .............. 4
SECTION 3. DIAGRAMS

3~li Block Diagram .....
3-2. Circuit Boards Location
33. Printed Wiring Board - Main Section -.
3-4. Schematic Diagram - Main Section
3-5, Schematic Diagram - BD Section -
3-6. Primed Wiring Board - BD Section -
3-7. Semiconductor Lead Layouts
3-8. lC Block Diagrams ..................

SECTION 4. EXPLODED VIEWS
4-1. Front Panel and Cabinet Assemblies
42. Chassis Section
43. CD Mechanism Block Section
(CDMl9C2-6GSO) : Black
(CDM19D2-6650) : Gold
4-4. Base Unit Section (BU-6G)

SECTION 5. ELECTRICAL PARTS LIST ....................... 36

SAFETY-RELATED COMPONENT WARNING

COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONV.

This Compact Disc player is
CLASS 1 LASERPRODUCT classified as a CLASS 1 LASER
products The CLASS 1 LASER

LUOKAN 1 LASERLAITE
KLASS t LASERAPPARAT PRODUCT MARKING is located
on the rear exterior,
Note
This appliance conforms with EEC Directive 87/308/EEC regarding

interference suppression

The following caution label is located in the side of the unit.

CAUTION

: lNVISIELE LASER RADIATION WHEN OPEN,
worn sxvosuns ro BEAM
ADVARSEL . ustLiG LASERSYRALING van AENlNG ma

sIKKERNEosAFeRvoERE E: was AF FuNKrioN
uNDGAuos mass FOR smmme

; AVATTAESSA JA SUOJALUKITUS oHirETrAEssA
my ALTYIINA usERsATEILVLLE

: usansymtwe ma DENNA DEL A: oppmn
OCH swanzu A: quovPLAD

ADVARSEL ; ustuG LASERSYRALING NAR DEKSEL APNES

UNNGA suspense-us Fen SIRALEN.

VAROI
VAHNING

NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT

The laser diode in the optical pick-up block may suffer
electrostatic breakdown because of the potential di-
ference generated by the charged electrostatic load,
etc. on clothing and the human body.

During repair, pay attention to electrostatic break-
down and also use the procedure in the printed matter
which is included in the repair parts.

The flexible board is easily damaged and should be
handled with care.

NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to
be focused on the disc reflective surface by the objec-
tive lens in the optical pick-up block. Therefore, when
checking the laser diode emission, observe from more
than 30cm away from the objective lens.

MODEL IDENTIFICATION
--Model Number Label-

SONYo MODEL NO. CDP-XSOSES
__._..__

COMPACT DISC PLAYER

WWW

AEP, Germany model :AC : 220-230V, 50/60Hz 29W
Australlan model :AC : 240V, 50Hz 29W
E, Saudi Arabia model: AC 2 110, 120, 220 or 240V, 50/60Hz 29W
