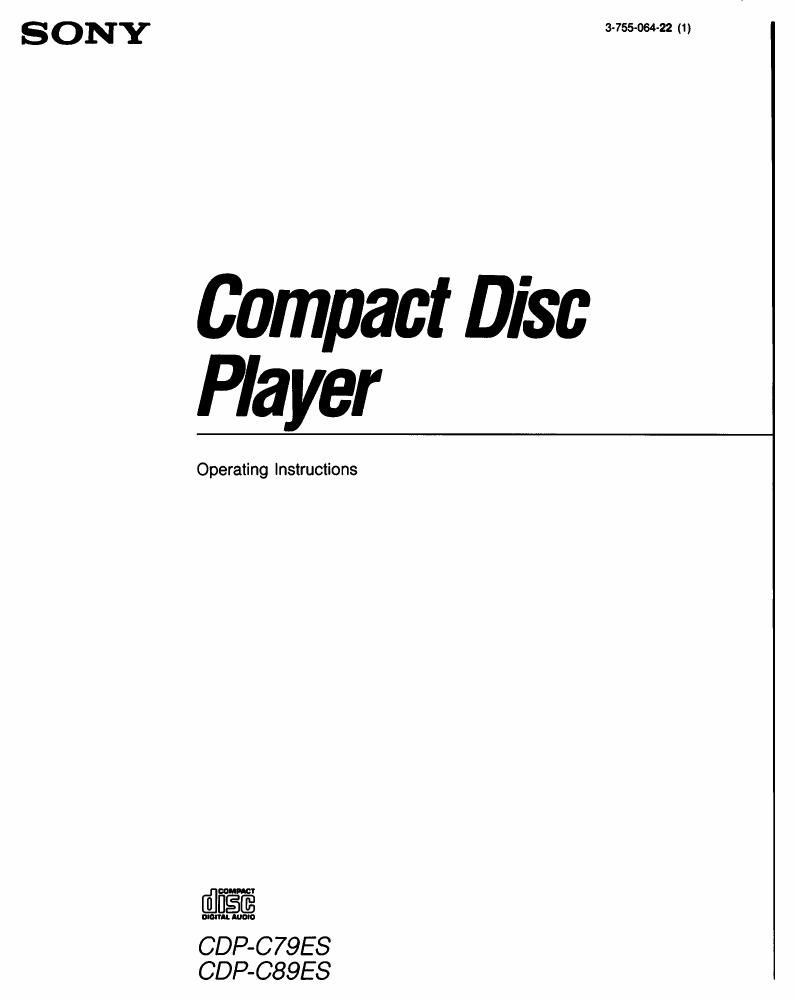

Sony CDP C79ES Owners Manual

Page 2

WARNING

To prevent fire or shock hazard, do not
expose the unit to rain or moisture.

NS! 0' itEC'RIC SNOCK
00 NOV OPEN

CAUTION TO REDUCE THE RISK OF ELECTRlC SHOCK.
DO NOT REMOVE COVER 0 BACK)
N0 USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

This symbol is intended to alert the user
to the presence of uninsulated
dangerous voltage" within the product's
enclosure that may be of sufficient
magnitude to consititute a risk of electric
shock to persons.

This symbol is intended to alert the user
to the presence of important operating
and maintenance (servicing) instructions in
the literature accompanying the appliance.

INFORMATION

This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions. may cause
harmful interference to radio communications. However.
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception. which can be
determined by turning the equipment off and on, the user
is encouraged to try to correct the interterence by one or
more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and
receiver.

- Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV
technician for help.

You are cautioned that any changes or modifications not
expressly approved in this manual could void your
authority to operate this equipment.

Owners Record

The model and serial numbers are located at the rear.
Record these numbers in the spaces provided below.
Refer to these numbers whenever you call upon your Sony
dealer regarding this product.

Model No. Serial No.

For the customers in Australia
_ ' ' ' " " This Compact Disc player is

classified as a CLASS 1

LASER product.

The CLASS 1 LASER

PRODUCT label is located

on the rear exterior,

Differences by Model

This instruction manual covers the COP-C7958 and the
CDP-CSQES. Their performance and operation is identical
except for the following:

coeceses comes with a SERIAL CHAIN terminal and
CONTROL S OUT (output) terminal.

Note on the Transit Key

The transit key and the red lock screw (CDPCBSES only)
on the bottom exterior of the unit protects the optical
system against shock during transportation. Before
operating the CD player. be sure to remove the key and
red lock screw (CDP-CBQES only) by following the
instructions on the label. and store it in a safe place.

MSIWRW
woKANtLASERLNTE

KLASS f WERNPAMT

When transporting the unit. replace the key and red lock

screw (concesEs only) in its original hole and lock it in

place.

lite-install the red lock screw

1. Open the disc compartment by pressing the e.
OPEN/CLOSE button.

2. Press the DISC SKIP button until disc tray 1 is at the
front.

3. Close the disc ccmperiment by pressing the e.
OPEN/CLOSE button.

4. Wait for the L_7 (DISC 1) indicator to blink before turning
the power off. Fla-install the transporting lock screw.

Transit key

Red lock screw
(CDP-CesES only)

Page 19

Playing the Beginning of Each Selection

- Music Scan

7,7 0

um £qu a.

MUSIC SCAN

Press during stop.

MUS: SCAN
lb
To change the scanning time
Press MUSlC SCAN again.

Each time you press MUSIC SCAN, the display will be
as follows:

:
«J
53
CC

3)

K1.

92
it.

The indicator on the > button blinks and beginning at
each selection is played for 10, 20 or 30 seconds as
designated and tades out.

You can check the selections by scanning the beginning
of each selection on the disc. When "ALL DISCS is
selected in continue mode. the first selection of each disc
will be scanned.

You can use this function in any play mode.

When scanning is tlnished,
The unit enters the stop mode.

Starting only at the selection being played during
music scan
Press >. The indicator on the > button will light up.

To stop music scan play
Press I

Notes

v Programmed pauses in program mode will be disregarded during
music scan play.

~Ityoupressthe«/>>button,musicseanwtiibecanceied.

O Pressing the MUSIC SCAN button while the beginning oi
selection is being scanned will extend the playing time for 10.
20. or 30 more seconds.
