Extracted text from Sony CDP C5F Service Manual (Ocr-read)

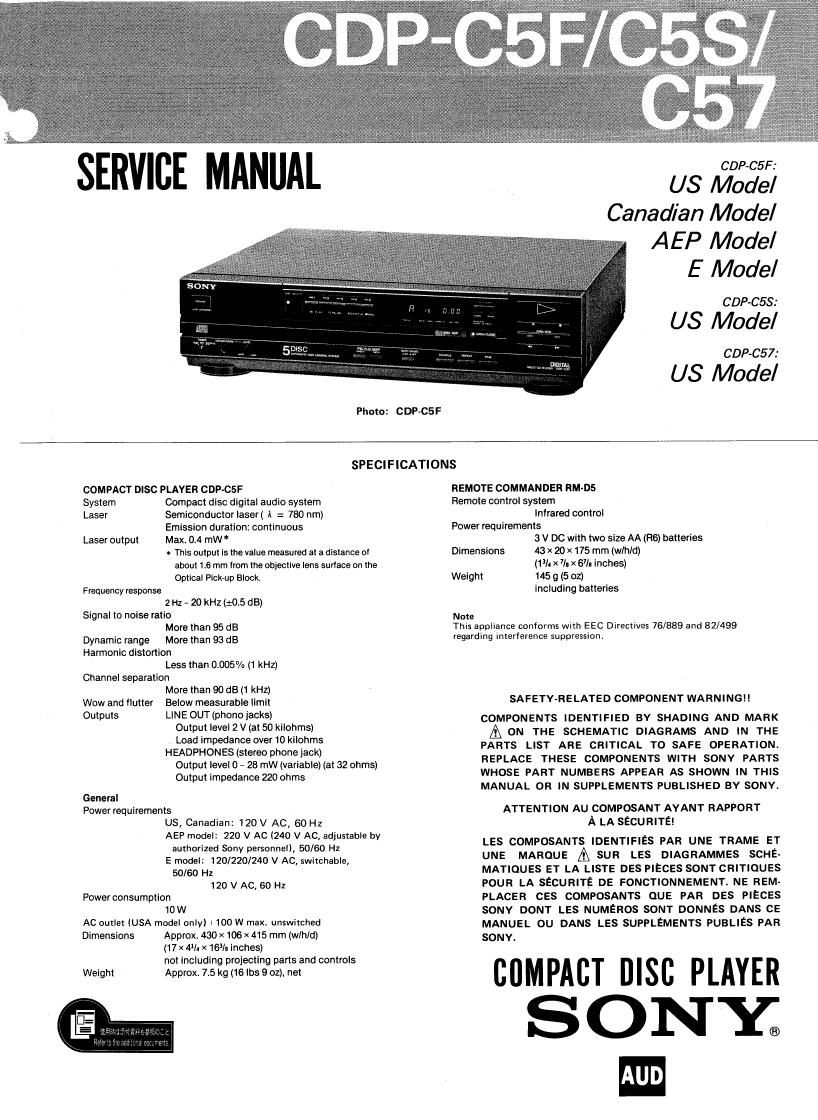

Page 1
Photo: C DP-C5 F
GDP-05F:
US Model
Canadian Model
AEP Model
E Model
GDP-05$:
US Model
GDP-05 7:
US Model
SPECIFICATIONS
COMPACT DISC PLAYER CDP-CSF
System Compact disc digital audio system
Laser Semiconductor laser ( A = 780 nm)
Emission duration: continuous
Laser output Max 0.4 mw *
x This output is the value measured at a distance or
about 1.3 mm from the objective lens surface on the
Optlcal Pick-up Block.
Frequency response
2 Hz - 20 kHz (20.5 dB)
Signal to nolse ratlo
More than 95 dB
Dynamic range More than 93 dB
Harmonic distortion
Less than 0.005% (1 kHz)
Channel separation
More than 90 dB (1 kHz)
Wow and llutter Below measurable limit
Outputs LINE OUT (phono jacks)
Output level 2 V (at 50 kilohms)
Load impedance over 10 kilohms
HEADPHONES (stereo phone jack)
Output level 0 - 28 mW (variable) (at 32 ohms)
Output impedance 220 ohms
General
Power requlrements
US, Canadian: 120 V AC, 60 Hz
AEP model: 220 V AC (240 V AC, adjustable by
authorized Sony personnel), 50/60 Hz
E model: 120/220/240 V AC. switchable.
50/60 Hz
120 V AC, 60 Hz
Power consumption
10 W
AC outlet (USA model only) i 100 W max. unswitched
Dimensions Approx. 430 X 106 X 415 mm (w/hld)
(17 X 4la X 163/: inches)
not |ncluding projecting pans and controls
Weight Approx 7.5 kg (16 lbs 9 oz), net
REMOTE COMMANDER RM-DS
Remote control system
Infrared control
Power requirements
3 V DC wlth two size AA (Fla) batteries
Dimensions 43 X 20 X 175 mm (wlhld)
(13/. X 7/: X 67/: Inches)
Weight 145 g (5 02)
including batteries
Note
This appliance conforms with EEC Directives 76/889 and 82/499
regarding interference suppression.
SAFETY~RELATED COMPONENT WARNINGII
COMPONENTS IDENTIFIED BY SHADING AND MARK
A ON THE SCHEMATIC DIAGRAMS AND IN THE
PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONV PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITEI
LEs COMPOSANTS IDENTIFIES PAR UNE TRAME ET
UNE MAROUE A sun LES DIAGRAMMES SCHE-
MATIoUEs ET LA LISTE DEs PIECES SONT CRITIQUES
POUR LA sEcuRITE DE FONCTIONNEMENT. NE REM-
PLACER CES COMPOSANTS QUE PAR DEs PIECES
SONY DONT LEs NUMEROS SONT DONNES DANs CE
MANUEL 0U DANs LES SUPPLEMENTS PUBLIES PAR
SONY.
chPAcI DISC PLAYER
SONE
Page 2
CDP-CSF/CSS/C57
FEATURES
Compact disc player with 5 disc trays
Plays up to 5 discs continuously with its disc compartment
having 5 disc trays (MULTI play).
Direct access to the desired disc
Any disc in the compartment can be played with the DISC
SELECT button any time you want (MULTI PLAYi
Various functions
- PROGRAM play function for playing up to 32 selections on
any disc in a desired order
~SHUFFLE play function for playing the selections in a
random order
- Repeat function for normal, PROGRAM and SHUFFLE play
in either SINGLE or MULTl mode
Memory back up
The programmed playback order Is retained for
approximately 3 days with the power turned off or with the
disc compartment being opened. This allows you to confirm
the programmed order referring to the disc labels with the
compartment open.
CAUTIONS ABOUT DISCTABLE
*Do not push the disc-table in or pull it out
forcibly, since the disc-table does not work
without the power switched on.
*Be careful not to disturb the disc-table in
ejecting motion.
If something like a wire or a finger is caught
by the disc-table, depress the OPEN/CLOSE
button as soon as possible, so that the disc-
table will move reversely.
CONTENTS
Section Title Page
SPECIFICATIONS ....................... 1
FEATURES ........................... 2
SAFETY CHECK-OUT (US Model) ............ 2
MODEL IDENTIFICATION ................. 3
SECTIONl OUTLINE
l-l. LOCATION AND FUNCTION OF
CONTROLS .................. 3
1-2. AUTO PAUSE ................ 5-2
NOTES ON HANDLING THE OPTICAL . . . . 7
SECTIONZ DISASSEMBLY ................ 8
SECTION 3 ADJUSTMENTS .............. 9-12
SECTION4 CIRCUIT BOARDS LOCATION ...... 12
SECTION 5 DIAGRAMS
5-1. MOUNTING DIAGRAM ........ 13-14
5-2. SCI-[EMATIC DIAGRAM tttttttt 15-16
5-3. MOUNTING DIAGRAM . 17-20
5-4. SCI-IEMATIC DIAGRAM. 21-25
IC BLOCK DIAGRAMS ............... 27
SEMICONDUCTOR LEAD LAYOUTS ...... 29
SECTION 6 EXPLODED VIEWS AND PARTS
LIST .................... 30-34
SECTION7 ELECTRICAL PARTS LIST ..... 35-40
SECTIONS TROUBLE SHOOTING ........... 40
SAFETY CHECK-OUT (US Model)
After correcting the original service problem,
perform the following safety check before releasing
the set to the customer:
Check the antenna terminals, metal trim, metallized
knobs, screws, and all other exposed metal parts for
AC leakage. Check leakage as described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to
earth ground and from all exposed metal parts to any
exposed metal part having a return to chassis, must
not exceed 0.5 mA (500 microampers), Leakage
current can be measured by any one of three
methods.
I. A commercial leakage tester, such as the
Simpson 229 or RCA WT-54OA. Follow the
manufacturers instructions to use these instru-
ments.
2. A battery-operated AC milliammeterl The Data
Presision 245 digital multimeter is suitable for
this job.
3. Measuring the voltage drop across a resistor by
means of a VOM or battery-operated AC volt-
meter. The 1imit indication is 0.75 V, so
analog meters must have an.accurate low-
voltage scale. The Simpson 250 and Sanwa
SH-63Trd are examples of a passive VOM that
is suitable. Nearly all battery operated digital
multimeters that have a 2 V AC range are
suitable. (See Fig. A)
Ta Exposed Metal
Parr: on Set
AC
0.15"}: grim / voltmeter
(0.75w
.i-
7 Earth Ground
Fig. A. Using an AC voltmeter to check AC leakage.
2-
