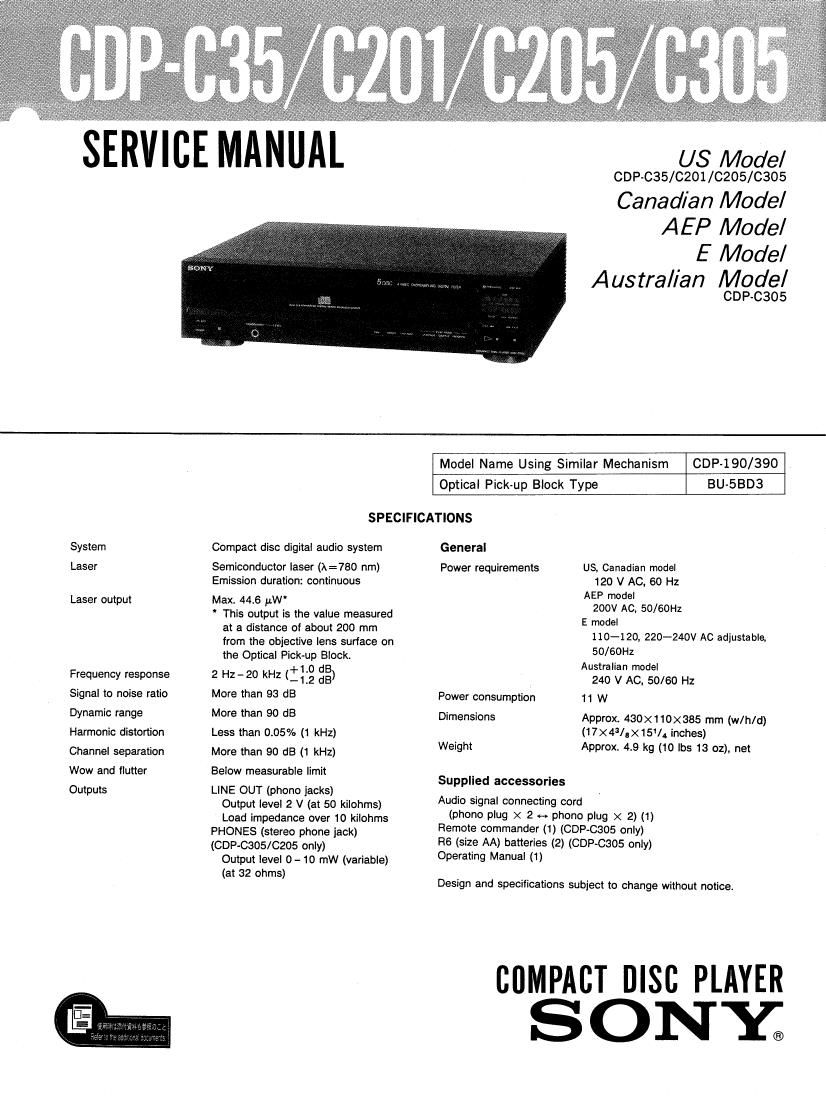

Sony CDP C201 Service Manual

Page 2

CDP-CS5/CZOl/C205/C305 i

Note on the Transit Key

The white transit key on the bottom exterior of the unit protects the optical system against shock during transportation.
Before operating the CD player, be sure to remove the key by following the instructions on the label, and store it in a safe
place.

When transporting the unit, replace the key in its original hole and lock it in place.

TABLE OF CONTENTS

Section file Page Section Lile Page

1. GENERAL 5. EXPLODED VIEWS

1-1. Location of Controls ................................ 5 5-1. Cabinet Section .................................. 21
5-2. Disk Table Section ................................ 22

2. DISASSEMBLY 5-3. Frame Section .................................... 23

2-1, Front Panel, Case and Bottom plate ................ 6 5-4. Optical Pick-up Block ............................ 24

2-2. Disk Table ........................................ 6

2-3. Optical Pick-up Block ............................ 6 5. ELECTRICAL PARTS LIST ...................... 25

3. ELECTRICAL ADJUSTMENT ...................... 7

4. DIAGRAMS

4-1. Circuit Boards Location ........................... 9
4-2. Semiconductor Lead Layout ........................ 9
4-3. Printed Wiring Boards ............................ 11
4-4. Schematic Diagram ................................ 15
SAFETY-RELATED COMPONENT WARNINGH ATTENTION AU COMPOSANT AYANT RAPPORT

COMPONENTS IDENTIFIED BY MARK A OR DOTTED A LA SECURITE!

LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.

LES COMPOSANTS IDENTIFIES PAR one MARQUE A
sun LES DIAGRAMMES SCHEMATIOUES ET LA LISTE
DES nieces SONT canroues POUR LA sécum'ré
DE FONCTIONNEMENT. NE REMPLACER ces COM-
POSANTS oue PAR DES PIECES sonv DONT LES
NUMEROS SONT DONNES DANS CE MANUEL ou
DANS LES SUPPLEMENTS PUBLIES PAR SONY.
