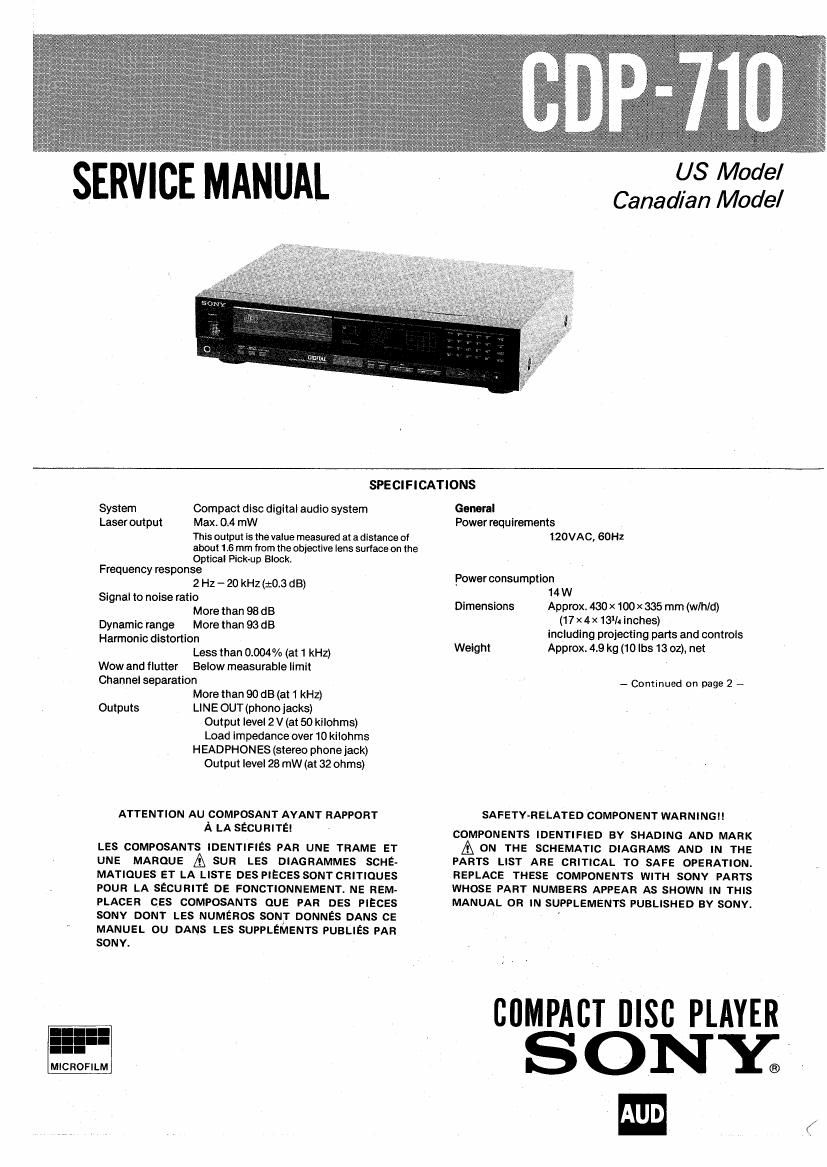

Sony CDP 710 Service Manual

Page 1

us Model
Canadian Model

. gleam '

SPECIFICATIONS
System Compact disc digital audio system General
Laser output Max. 0.4 mW Power requlrements

This output is the value measured at adlstance of
about 1.6 mm from the objective lens surface on the
Optical Pick-up Block.
Frequency response
2 Hz - 20 kHz(:0.3 dB)
Signal to noise ratio
More than 98 dB
Dynamic range More than 93 dB
Harmonic distortion
Less than 0.004% (at 1 kHz)
Wow and flutter Below measurable limit
Channel separation
More than 90 dB (at 1 kHz)
LINE 0UT(phonojacks)
Output level 2 V (at 50 kilohms)
Load impedance over 10 kilohms
H EADPHON ES (stereo phone jack)
Output level 28 mW (at 32 ohms)

Outputs

ATTENTION AU COMPOSANT AVANT RAPPORT
A LA SECURITEI

LES COMPOSANTS IDENTIFIES PAR UNE TRAME ET
UNE MAROUE A sun LEs DIAGRAMMEs SCHE-
MATIOUES ET LA LISTE oEs PIECES SONTCRITIOUES
POUR LA sEcunITE DE FONCTIONNEMENT. NE REM-
PLACER cEs COMPOSANTS ouE PAR oEs PIECES
SONY DONT LEs NUMERos soNT DONNES DANS CE
MANUEL ou DANS LEs SUPPLEMENTS PUBLIES PAR
SONV.

I.20VAC, 60H:

Power consumption
14W

Dimensions Approx. 430 x 100 x 335 mm (w/h/d)
(17 x 4 x 13]; inches)
including projecting parts and controls
Welght Approx. 4.9 kg (10 lbs 13 02), net

- Continued on page 2 -

SAFETY-RELATED COMPONENT WARNINGH

COMPONENTS IDENTIFIED BY SHADING AND MARK

A ON THE SCHEMATIC DIAGRAMS AND IN THE
PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

MICROFILM

cuMPAcI nIsc PLAYER
SONY. ,

Page 2

con-31 o '

REMOTE COMMANDER RM-DSSOA
Remote control system

infrared control - Program play for playing up to 20 selections in a desired
Power requirements order.

3 V DC with two batteries size AA (Rep;

0 Shuttle play for playing the selections in a random order.
Dimensions 67 x 20 x 175 mm (wlhld)

(23/4 X 13/ x 7 inches) ° Repeat function for a single selection, the whole disc,
Weight 145 g (5 oz) pregram play, or shuffle play. Or for a particular portion of a
including batteries SEIeCtion.

- Easy-tweed color display that shows the track number
being played, elapsed playing time, or remaining time, and
indicates the repeat play, shuttle play, auto space
functions.

0 Auto space function for creating a blank space of 3
seconds between each selection.

- Timer play for initiating disc play at a desired time (a
commercially available timer is required).

- index search function for quickly locating a desired part
(only with the remote commander).

Example: a movement in a symphony Index search can be used only for
discs having index numbers. Such discs have a @g@ mark.
