Sony CDP 313 Service Manual

Extracted text from Sony CDP 313 Service Manual (Ocr-read)

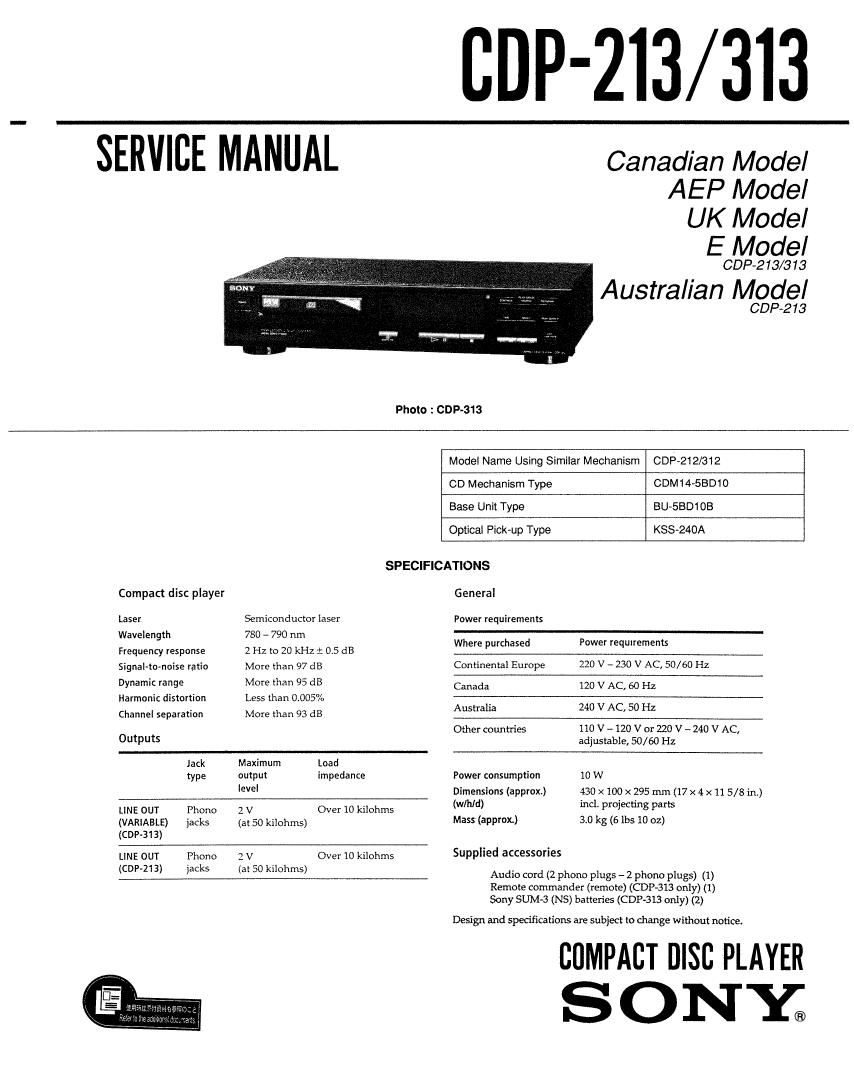

Page 1

'213/ 313

SERVICE MANUAL Canadian Model

AEP Model
UK Model
E Model

GDP-213A? 13

Australian Model

GDP-2 13

Photo : GDP-313

Model Name Using Similar Mechanism CDP-212l312
CD Mechanism Type CDM14-5BD1O
Base Unit Type BU-SBDioB
Optical Pick-up Type KSS-24DA
SPECIFICATIONS
Compact disc player Genera!
Laser Semiconductor laser Power requirements
Wavelength 780 H 790 nm Wh h d Power re ulrernems
r 352
Frequency response 2 Hz to 20 kHz 1 0.5 dB 9 e pun: q
Signal-to-noise ratio More than 97 dB Continental Europe 220 V - 230 V AC 50/60 Hz
Dynamic range More than 95 dB Canada 120 V AC, 60 Hz
Harmonic distortion Less than 0.005% 0 V C
Channel separation More than 93 dB Australia 24 A 50 HZ
Other countries 110 V - 120 V or 220 V - 240 V AC,
Outputs adjustabie, 50/60 Hz
lack Maximum Load
type output impedance Power consumption 10 W
IEVe' Dimensions (approx) 430 X 100 x 295 mm (17 x 4 x 11 5/8 in.)
LINE our Phone 2 v Over 10 kiiohms (""1) id 018sz Parts
(VARIABLE) jacks (at 50 kiiohms) Mass (approx) 3.0 kg (6 lbs 10 oz)
(cw-313)
LINE our Phone 2 v Over 10 kilohms SUPP'iEd accessories
(COP-213) jacks (at so kilohms)

Audio cord (2 phone plugs - 2 phono plugs) (1)
Remote commander (remote) (CDP-313 only) (1)
Sony SUM-3 (N5) batteries (CDP-313 only) (2)

Design and specifications are subject to change without notice.

CUMPACT msc PLAYER
S 0 NY;

Page 2

CAUTION

Use of controls or adjustments or performance of
procedures other than those specified herein may result in
hazardous radiation exposure.

The laser component in this product
is capable of emitting radiation
exceeding the limit for Class 1.

CLASS 1 LASER PRODUCT
LUOKAN 1 LASERLAITE

KLASS 1 LASERAPPARAT

This appliance is classified as a CLASS 1
LASER product. The CLASS 1 LASER
PRODUCT MARKING is located on the
rear exteriort

The following caution label is located
inside of the unit.

CW0 i mug: m'm" m
AWARSEL , awn. mwnmmgiwfiw, m,
m va m a, M
VARO mexmwmww w
VRNING , wee-immense W

Ammsfl ; vs wmngmw:

Notes on chip component replacement

' Never reuse a disconnected chip component

0 Notice that the minus side of a tantalum capacitor may be
damaged by heat

TABLE OF CONTENTS

§§91ign Iitle Rage
1. SERVICING NOTE ................................................. 3
2. GENERAL ............................................................... 4
3. DISASSEMBLY

3~1r Front Panel 5
3-2 Base Unit Block 5

ELECTRICAL BLOCK CHECKING ........................ 6

4
5. DIAGRAMS
51. IC Pin Functions
. ICIOl (cxozsiso)...
' |C301 (CXD2565AM)
~ I0601 (CXP82612»007Q)
5-2. Circuit Boards Location
543, Block Diagram ..........
5-4. SemiconduCtor Lead Layouts
5-5t Printed Wiring Boards .
5-6l Schematic Diagram .

6t EXPLODED VIEWS
6-1, Case Section ....
6-2. Back Panel Section .
643. CD Mechanism Section (CDM14-SBD10)
6-4. Base Unit Section (BU-SBD1OB) ...........

7r ELECTRICAL PARTS LIST.

MODEL IDENTIFICATION

- BACK PANEL -
44 A
GDP-213
Canadian Model : 969-75401:
AEP Model : 969-743-5El
(made in FRANCE)
AEP Model : 969-754-1El
(made in CHINA)
UK Model : 969-743-7EI
German Model : 969743-60
E Model : 969754-53
Australian Model : 969-754~4l:l
GDP-313
Canadian Model : 969-747-5D

AEP, East European Model : 969-743-2El
(made in FRANCE)

AEP Model : 969-747-6D
(made in CHINA)

UK Model : 969-743-4El
German Model : 971 -521 ~0D
E Model : 969-747»8I:I
E Model : 969-747-9El

(made in CHINA)
