Sony CDP 309 Service Manual

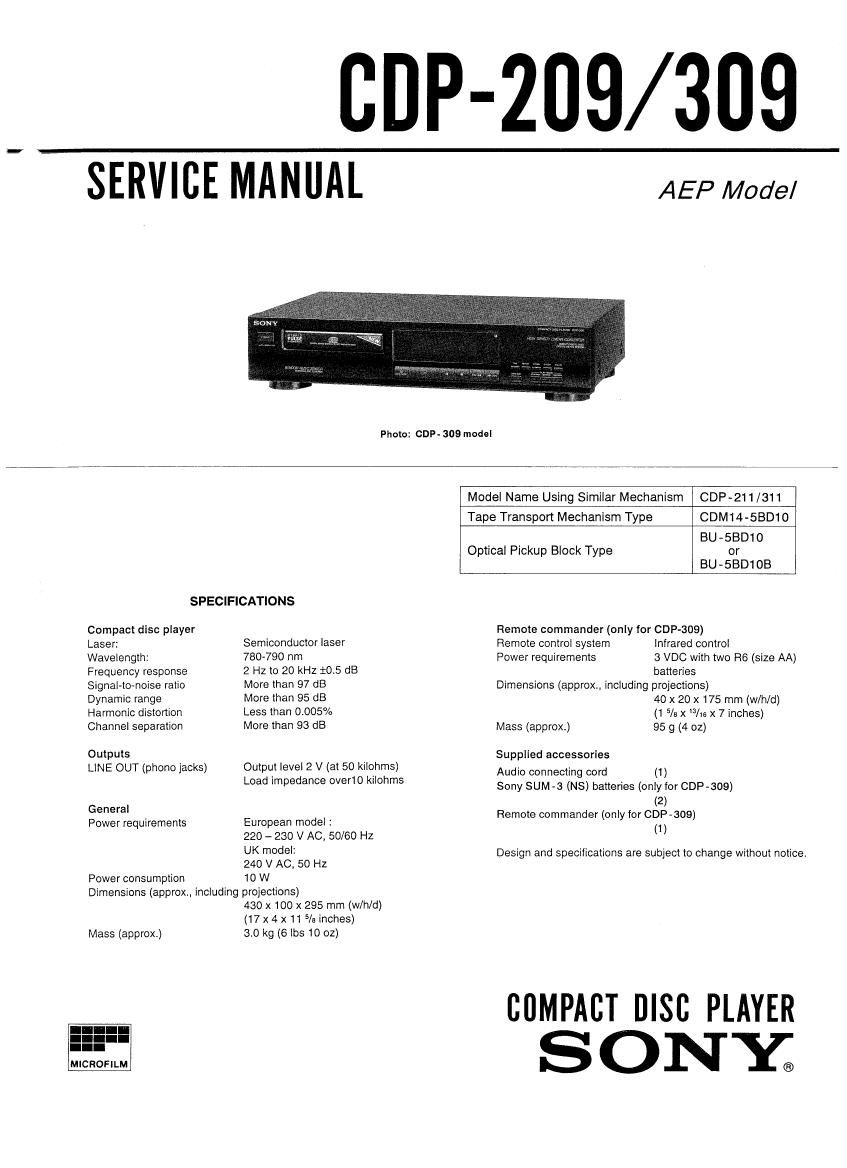

Page 1

CDP-ZDQ/ 309

SERVICE MANUAL AEP Model

Photo: GDP- 309 model

Model Name Using Similar Mechanism CDP-211/311
Tape Transport Mechanism Type CDM14-SBD10
BU -5BD1O
Optical Pickup Block Type or
BU -SBD1 OB
SPECIFICATIONS
Compact disc player Remote commander (only for GDP-309)
Laser: Semiconductor laser Remote control system infrared control
Wavelength: 780-790 nm Power requirements 3 VDC with two R6 (size AA)
Frequency response 2 Hz to 20 kHz 10.5 dB batteries
Signal-to-noise ratio More than 97 dB Dimensions (approx, including projections)
Dynamic range More than 95 dB 40 x 20 x 175 mm (w/h/d)
Harmonic distortion Less than 0.005% (t 5/5 x /16 x 7 inches)
Channel separation More than 93 dB Mass (approx,) 95 g (4 oz)
Outputs _ Supplied accessories
LINE OUT (phono jacks) Output lei/3| 2 V (at 52:13:11?) Audio connecting cord (1)
Load tmpe once over '0 ms Sony SUM -3 (NS) batteries (only for CDP~309)
(2)
General _ Remote commander (only for GDP-309)
Power requrrements European model : (I)
220 - 230 V AC. 50/60 HZ
UK deEIi Design and specifications are subject to change without notice,
240 V AC, 50 Hz
Power consumption to W

Dimensions (approx.. including projections)
430 x 100 x 295 mm (w/h/d)
(17 x 4 x 11 5/: inches)
Mass (approx) 3.0 kg (6 lbs 10 oz)

chPAcr DISC PLAYER
S ON Y;

Page 2

TABLE OF CONTENTS

$351121} m P_ag§
1, GENERAL .......................................... 3
2, DISASSEMBLY ..................................... 4
3. ELECTRICAL BLOCK CHECKING ................ 5
4. lo pm DESCRIPTION ..................... ~ ......... 7
5. DIAGRAMS

5.1 Block Diagram ................................... 11

5-2. Printed Wiring Boards .......................... 14

53, Schematic Diagram .............................. 17

5-4. Semiconductor Lead Layouts ~~~~~~~~~~~~~~~~~~~~ 23
6. EXPLODED VIEWS

6-1r Front Panel Section ---------------------------- 24

672. CD Mechanism Section (CDM14-5BD10) --------- 25

63. Optical Pick-up Block

7. ELECTRICAL PARTS LIST ~~~~~~~~~~~~~~~~~~~~ 27

This appliance is classified as a
CLASS 1 LASER product. The
CLASS 1 LASER PRODUCT
MARKING is located on the rear
exterior.

CLASS 1 LASER PRODUCT
LUOKANl LASERLAITE

KLASS I LASERAFPARAT

The following caution label is located inside oi the unit

CAUTION ; lelsrsLE use: RADIATION we owe»:
mm EXPOSURE to am
. ustLIG LASEHsmALmo vED mm min
ADVARSEL SlKKERNEDSAFERYDERE ER UDE AF FUNKYION
uNDGAuns EnELSE son STRANING

VAROl AVATTAEsu n suOJALuxIWs ourrEruEssA
0er ALTTHNA MSERSATEILVLLE
VAFlNlNG : usenswmuc ma new on AR owmo
cu sums» AR unxovwo
ADVARSEL : uswua LASERSTRALING NAN osxssr AFNES
wuss susvoueame Fofi swALEN

SAFETY-RELATED COMPONENT WARNINGII

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE
'WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

SERVICING NOTES

NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT

The laser diode in the optical pick-up block may suffer
electrostatic breakdown because of the potential dififeb
ence generated by the charged electrostatic load, etc. on
clothing and the human body

During repair, pay attention to electrostatic breakdown
and also use the procedure in the printed matter which is
included in the repair parts

The flexible board is easily damaged and should be
handled with care.

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be
focused on the disc reflective surface by the objective lens
in the optical pick-up block. Therefore, when checking the
laser diode emission, observe more than 30 cm away from

the objective lens.

LASER DIODE AND FOCUS SEARCH OPERATION

CHECK

1. Turn POWER switch on with no disc inserted and disc
table closed,

2. Confirm that the following operation is performed

while observing the objecting lens
E 6 © °

51ml

0 Confirm that laser beam is spread,
0 Up and down motion of the objective lens. (3 times)
