Sony CDP 215 Service Manual

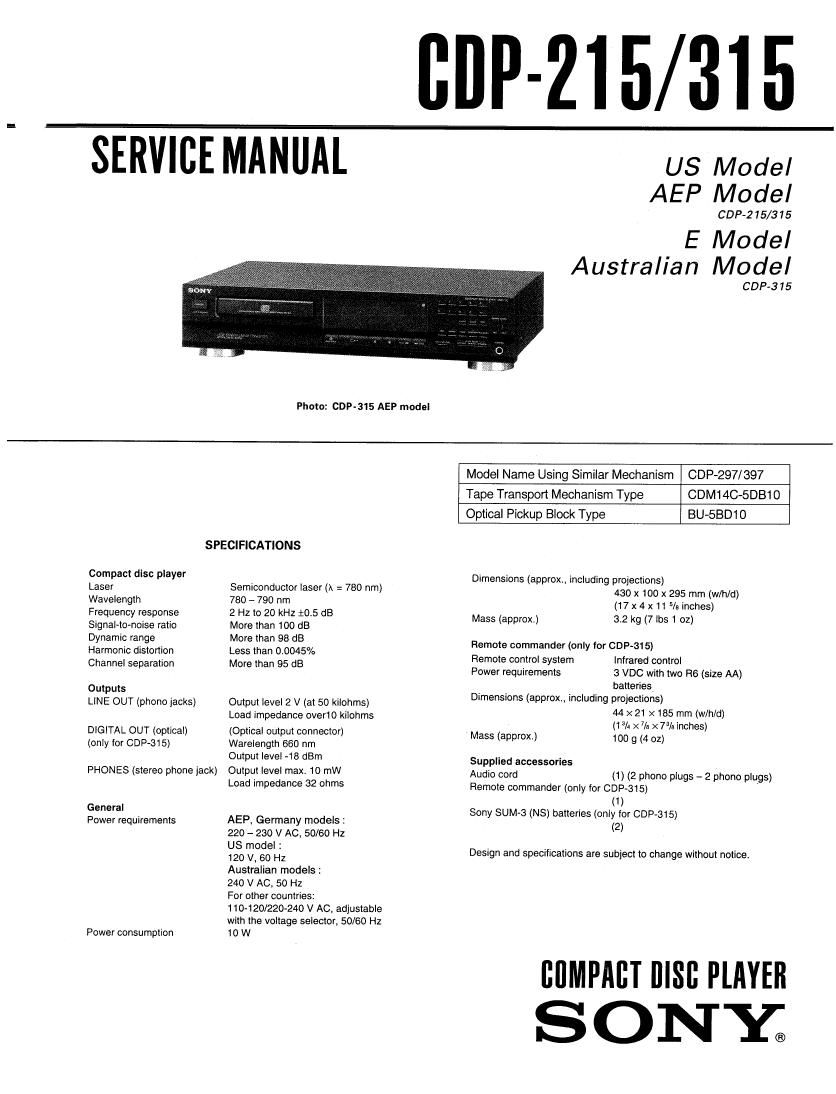

Page 1

[lllP-ZIE/315

SERVICE MANUAL us Model

AEP Model

CDP-215/315

E Model
Australian Model

GDP-315

Phata: GDP-315 AEP model

Model Name Using Similar Mechanism GDP-29W 397

Tape Transport Mechanism Type CDM14C-50810
Optical Pickup Block Type BU-58D1 0
SPECIFICATIONS
Compact (50 player Dimensions (approx.. including projections)
Laser Semiconductor laser (A = 780 nm) 430 x 100 x 295 mm (w/h/d)
Wavelength 780 - 790 nm (17 x 4 x 1, s,a inches)
Frequency response 2 Hz to 20 kHz :05 dB Mass (approx) 32 kg (7 lbs 1 oz)
Signal-to-noise ratio More than 100 dB
Dynamic range More than 98 15 Remote c mander l for GDP-315
Harmonic distortion Less than 0,0045% Remme 0:30] syslef" y Infrared Ioomml
Channel separatlon More than 95 dB Power requirements 3 VDC with two He (size AA)
batteries

Outputs . . . . . .
LINE OUT (phono jacks) Output level 2 v (at so kilohms) D'mem'm (app'°x" '"°'d'9 pmecmnsl

Load impedance overtO kilohms (IVS/X I73: Eggs/MI

X

DIGITAL OUT (optical) (Optical output connector) Mass (approx) 10f; 9 (1:02) a
(only for GDP-315) Warelength 660 nm

OUIPUI level-16 oBm Supplied accessories
PHONES (stereo phone jack) Output level max. 10 mW Audio cord (1) (2 phone plugs - 2 phone plugs)

Load Impedance 32 ohms Remote commander (only for GDP-315)

(1)

General Sony SUM-3 (NS) batteries (only for GDP-315)
Power requirements AEP. Germany models: (2)

220 - 230 V AC, 50/60 HZ

US model 2 . . . . . . .

120 V, 60 Hz Design and specifications are subject to change wnhout nollcev

Australian models:

240 V AC. 50 HZ

For other countries:

110-120/220-240 V AC, adjustable

with the voltage selector, 50/60 Hz
Power consumption 10 W

summer msc PLAYER
SONYa

Page 2

SAFETY CH ECK-OUT

After correcting the original service problem,
perform the following safety check before releasing
the set to the customer:

Check the antenna terminals, metal trim, metallized"
knobs, screws, and all other exposed metal parts for
AC leakage. Check leakage as described below.

LEAKAGE TEST

The AC leakage from any exposed metal part to
earth ground and from all exposed metal parts to any
exposed metal part having a return to chassis, must
not exceed 0.5 mA (500 microampers). Leakage
current can be measured by any one of three
methods.

1. A commercial leakage tester, such as the
Simpson 229 or RCA WT-540A. Follow the
manufacturers instructions to use these instru-
ments.

2. A batteryvoperated AC milliammeter. The Data
Precision 245 digital multimeter is suitable for
this job.

3, Measuring the voltage drop across a resistor by
means of a VOM or battery-operated AC volt«
meter. The limit" indication is 0.75 V, so
analog meters must have an accurate low-
voltage scale. The Simpson 250 and Sanwa
SH-63Trd are examples of a passive VOM that
is suitable. Nearly all battery operated digital
multimeters that have a 2 V AC range are
suitable. (See Fig. A)

To Exposed Metal
Parts on Set

0.15M [1 g 1.5m

'4' Earth Ground

/ AC
voltmeter
(0. 75 V)

Fig. A. Using an AC voltmeter to check AC leakage.

SA FETY-RELATED COMPONENT WARNING! !

COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.

TABLE OF CONTENTS

We M

2, DISASSEMBLY
3. ELECTRICAL BLOCK CHECKING~~~~~~~~~~---~---~-

4. DIAGRAMS

41. IC Pin Description

'lClOl CXDZSlSQ

'ICZOI CXP82316-037Q
4-2. Block Diagram """"
4«3. Semiconductor Lead Layouts
4-4. Printed Wiring Board'
4-5. Schematic Diagram

5. EXPLODED VIEWS
5-]. Cabinet Section

5-2. CD Mechanism Section (CDMHOSBDIO
5-3. Optical Pick-up Block (BU-SBDIO) '

6. ELECTRICAL PARTS LIST

MODEL IDENTIFICATION

GDP-215

Made in Chlna GDP-615

SONYO MODEL Mo./

COMPACT DISC PLAYER

WW

SERIAL uol
uxnsm cum

US Model: AC 120V SOHZ IOW
AEP. Easl European model : AC 220v230V ~ SO/SOHZ IOW
Australian Modal: AC 240V - {IO/MHZ
E Model: AC IlO-IZOV. 220-20V.
~ SOIBOHz IOW

GDP-215
Made In France CDH

SONYo MODEL NO W

COMPACT DISC PLAYER

WW

SERIAL No.
mu: IN FRANCE

AEP. Germany Model' AC 220v230V ~ SDIGOHZ IOW

'25
'26

27
