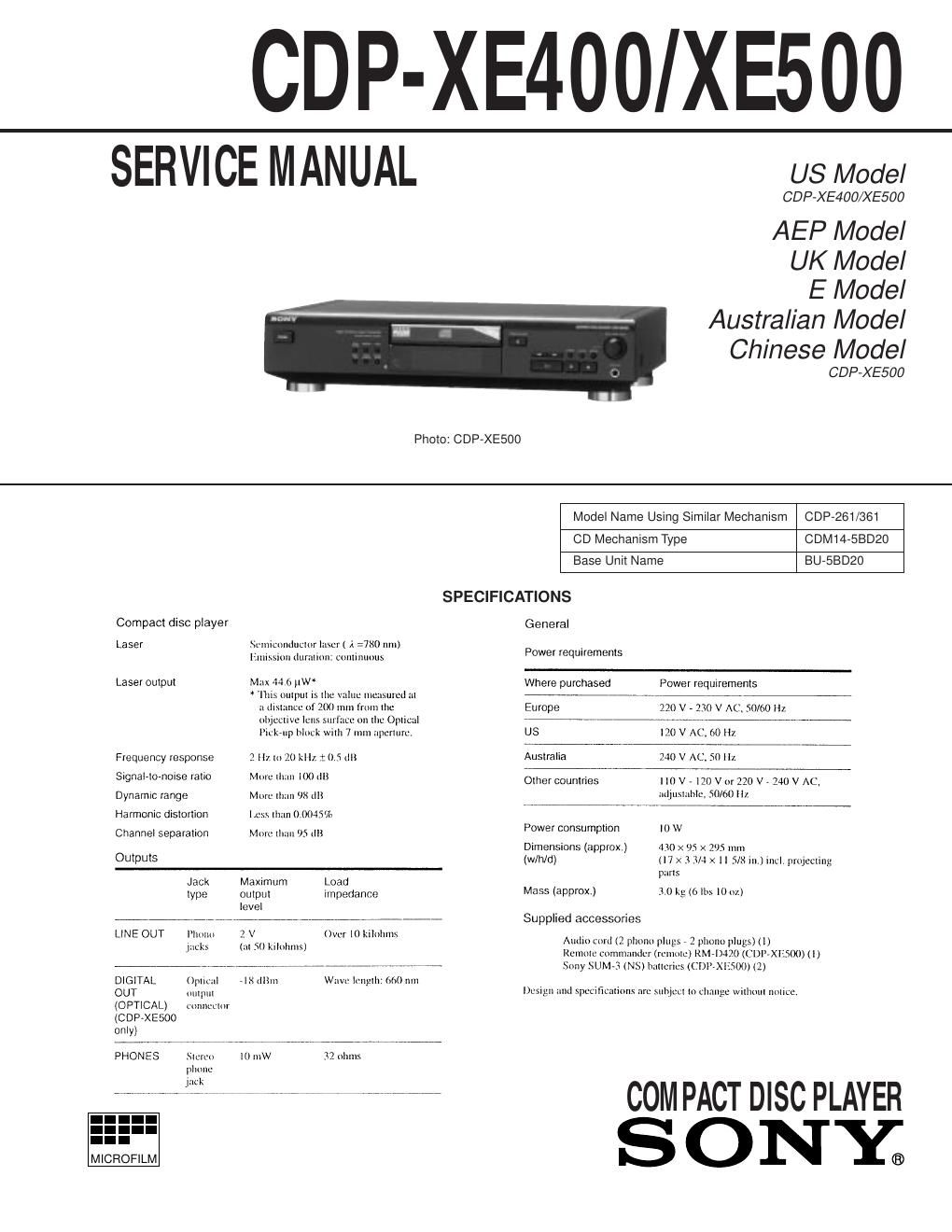

Sony cdp xe 400 service manual
This is the 27 pages manual for sony cdp xe 400 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony cdp xe 400 service manual (Ocr-read)
Page 1
Ð 2 Ð The laser component in this product is capable of emitting radiation exceeding the limit for Class 1. The following caution label is located inside of the unit. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. CAUTION Use of controls or adjustments or performance of proce- dures other than those specified herein may result in haz- ardous radiation exposure. Notes on Chip Component Replacement ·Never reuse a disconnected chip component. ·Notice that the minus side of a tantalum capacitor may be dam- aged by heat. MODEL IDENTIFICATION Ð Back Panel Ð CDP-XE400 US Model : 4-977-587-5¹ CDP-XE500 US Model : 4-977-587-1¹ E Model : 4-977-587-3¹ Australian Model : 4-977-587-4¹ Chinese Model : 4-977-587-9¹ AEP, German, East European Model : 4-978-388-0¹ UK Model : 4-978-388-1¹ To Exposed Metal Parts on Set 0.15µF1.5k W AC voltmeter (0.75V) Earth Ground Fig. A. Using an AC voltmeter to check AC leakage. SAFETY CHECK-OUT After correcting the original service problem, perform the following safety check before releasing the set to the customer: Check the antenna terminals, metal trim, ÒmetallizedÓ knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a re- turn to chassis, must not exceed 0.5 mA (500 microampers). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturersÕ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digi- tal multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The ÒlimitÓ indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A)
Page 2
Ð 3 Ð NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick-up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. LASER DIODE AND FOCUS SEARCH OPERATION CHECK 1. Make POWER switch on with no disc inserted and disc table closed. 2. Confirm that the following operation is performed while observing the objective lens. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. TABLE OF CONTENTS 1. GENERAL Identifying the Parts .................................................................. 4 Playing a CD .............................................................................. 5 2. DISASSEMBLY 2-1. Front Panel .............................................................................. 6 2-2. Base Unit Block ...................................................................... 6 3. ELECTRICAL BLOCK CHECKING ............................. 7 4. DIAGRAMS 4-1. IC Pin Functions ...................................................................... 9 4-2. Printed Wiring Board Ð BD Section Ð ................................... 13 4-3. Schematic Diagram Ð BD Section Ð ...................................... 15 4-4. Printed Wiring Boards Ð Main Section Ð .............................. 17 4-5. Schematic Diagram Ð Main Section Ð ................................... 21 5. EXPLODED VIEWS 5-1. Case Section .......................................................................... 28 5-2. Back Panel Section ................................................................ 29 5-3. CD Mechanism Section ......................................................... 30 5-4. Base Unit Section .................................................................. 31 6. ELECTRICAL PARTS LIST .......................................... 3 2
