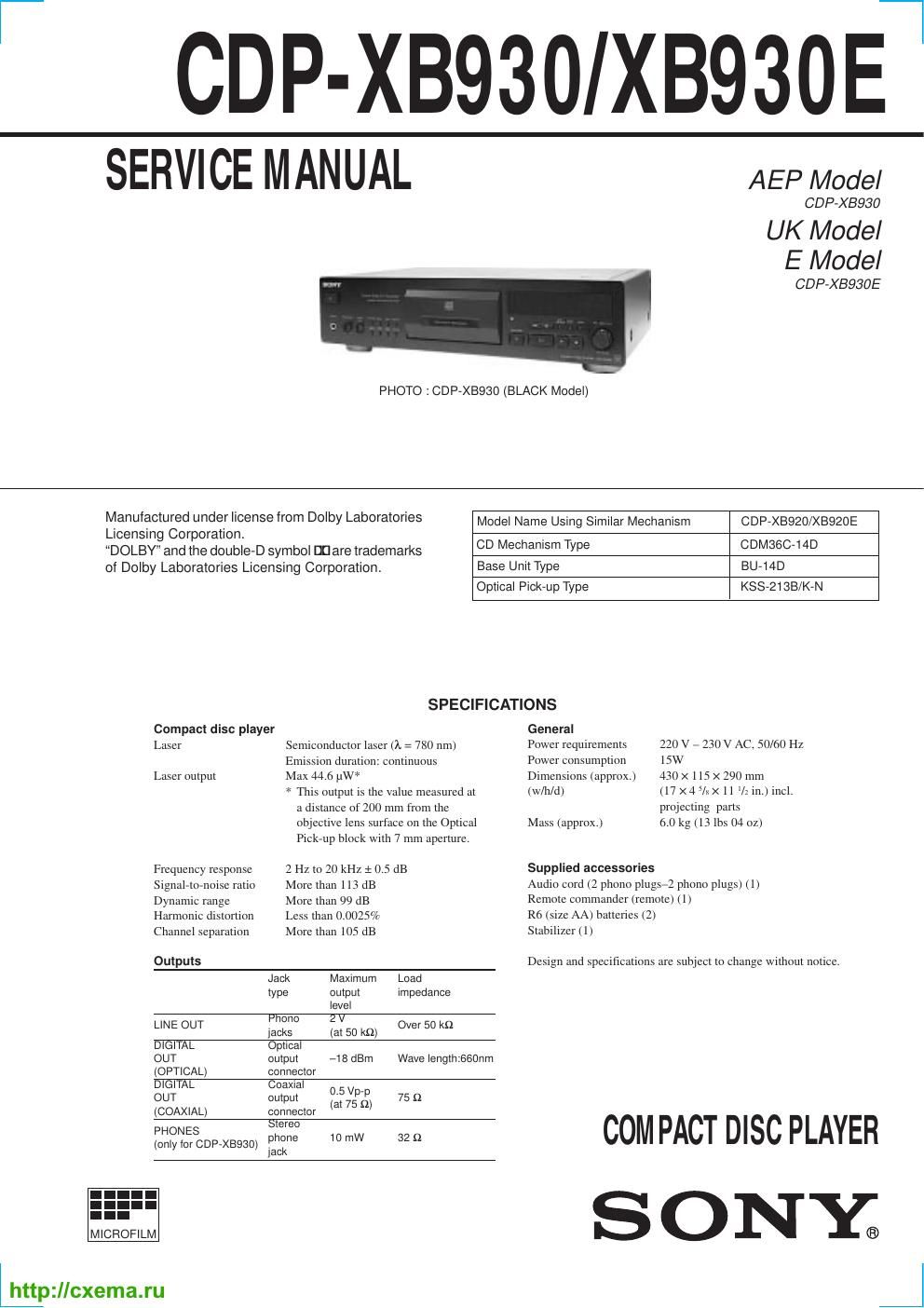

Sony cdp xb 930

Page 2

3 CD-TEXT TEST DISC This unit is able to display the test data (character information) written in the CD on its fluorescent indicator tube. The CD-TEXT TEST DISC (TGCS-313:4-989-366-01) is used for checking the display. To check, perform the following procedure. Checking Method: 1. Turn ON the power, set the disc on a tray, and chuck the disc. 2. Press the · button and play back the disc. 3. The following will be displayed on the fluorescent indicator tube. Display : 1KHZ/0 DB 4. Rotate ≠ AMS ± knob to switch the track. The text data of each track will be displayed. For details of the displayed contents for each track, refer to Table 1 : CD-TEXT TEST DISC Recorded Contents and Display. Restrictions in CD-TEXT Display In this unit, some special characters will not be displayed properly. These will be displayed as a space or a character resembling it. Table 1 : CD-TEXT TEST DISC Recorded Data Contents and Display (TRACKS No. 1 to 32:Normal Characters) TRACK No.Recorded contents Display 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 1kHz/0dB/L&R 20Hz/0dB/L&R 40Hz/0dB/L&R 100Hz/0dB/L&R 200Hz/0dB/L&R 500Hz/0dB/L&R 1kHz/0dB/L&R 5kHz/0dB/L&R 7kHz/0dB/L&R 10kHz/0dB/L&R 16kHz/0dB/L&R 18kHz/0dB/L&R 20kHz/0dB/L&R 1kHz/0dB/L&R 1kHz/-1dB/L&R 1kHz/-3dB/L&R 1kHz/-6dB/L&R 1kHz/-10dB/L&R 1kHz/-20dB/L&R 1kHz/-60dB/L&R 1kHz/-80dB/L&R 1kHz/-90dB/L&R Infinity Zero w/o emphasis//L&R Infinity Zero with emphasis//L&R 400Hz+7kHz(4:1)/0dB/L&R 400Hz+7kHz(4:1)/-10dB/L&R 19kHz+20kHz(1:1)/0dB/L&R 19kHz+20kHz(1:1)/-10dB/L&R 100Hz/0dB/L* 1kHz/0dB/L* 10kHz/0dB/L* 20kHz/0dB/L* 1 K H Z / 0 D B – – – – /L&R are not displayed 2 0 H Z / 0 D B – – – – /L&R are not displayed 4 0 H Z / 0 D B – – – – /L&R are not displayed 1 0 0 H Z / 0 D – – – – B/L&R are not displayed 2 0 0 H Z / 0 D – – – – B/L&R are not displayed 5 0 0 H Z / 0 D – – – – B/L&R are not displayed 1 K H Z / 0 D B – – – – /L&R are not displayed 5 K H Z / 0 D B – – – – /L&R are not displayed 7 K H Z / 0 D B – – – – /L&R are not displayed 1 0 K H Z / 0 D – – – – B/L&R are not displayed 1 6 K H Z / 0 D – – – – B/L&R are not displayed 1 8 K H Z / 0 D – – – – B/L&R are not displayed 2 0 K H Z / 0 D – – – – B/L&R are not displayed 1 K H Z / 0 D B – – – – /L&R are not displayed 1 K H Z / - 1 D – – – – B/L&R are not displayed 1 K H Z / - 3 D – – – – B/L&R are not displayed 1 K H Z / - 6 D – – – – B/L&R are not displayed 1 K H Z / - 1 0 – – – – dB/L&R are not displayed 1 K H Z / - 2 0 – – – – dB/L&R are not displayed 1 K H Z / - 6 0 – – – – dB/L&R are not displayed 1 K H Z / - 8 0 – – – – dB/L&R are not displayed 1 K H Z / - 9 0 – – – – dB/L&R are not displayed I N F I N I T Y – – – – Zero w/o emphasis//L&R are not displayed I N F I N I T Y – – – – Zero with emphasis//L&R are not displayed 4 0 0 H Z+ 7 K – – – – Hz(4:1)/0dB/L&R are not displayed 4 0 0 HZ + 7 K – – – – Hz(4:1)/-10dB/L&R are not displayed 1 9 K H Z+ 2 0 – – – – Hz(1:1)/0dB/L&R are not displayed 1 9 K H Z+ 2 0 – – – – Hz(1:1)/-10dB/L&R are not displayed 1 0 0 H Z / 0 D – – – – B/L are not displayed 1 K H Z / 0 D B – – – – /L are not displayed 1 0 K H Z / 0 D – – – – B/L are not displayed 2 0 K H Z / 0 D – – – – B/L are not displayed * Other channel is infinity zero.http://cxema.ru
