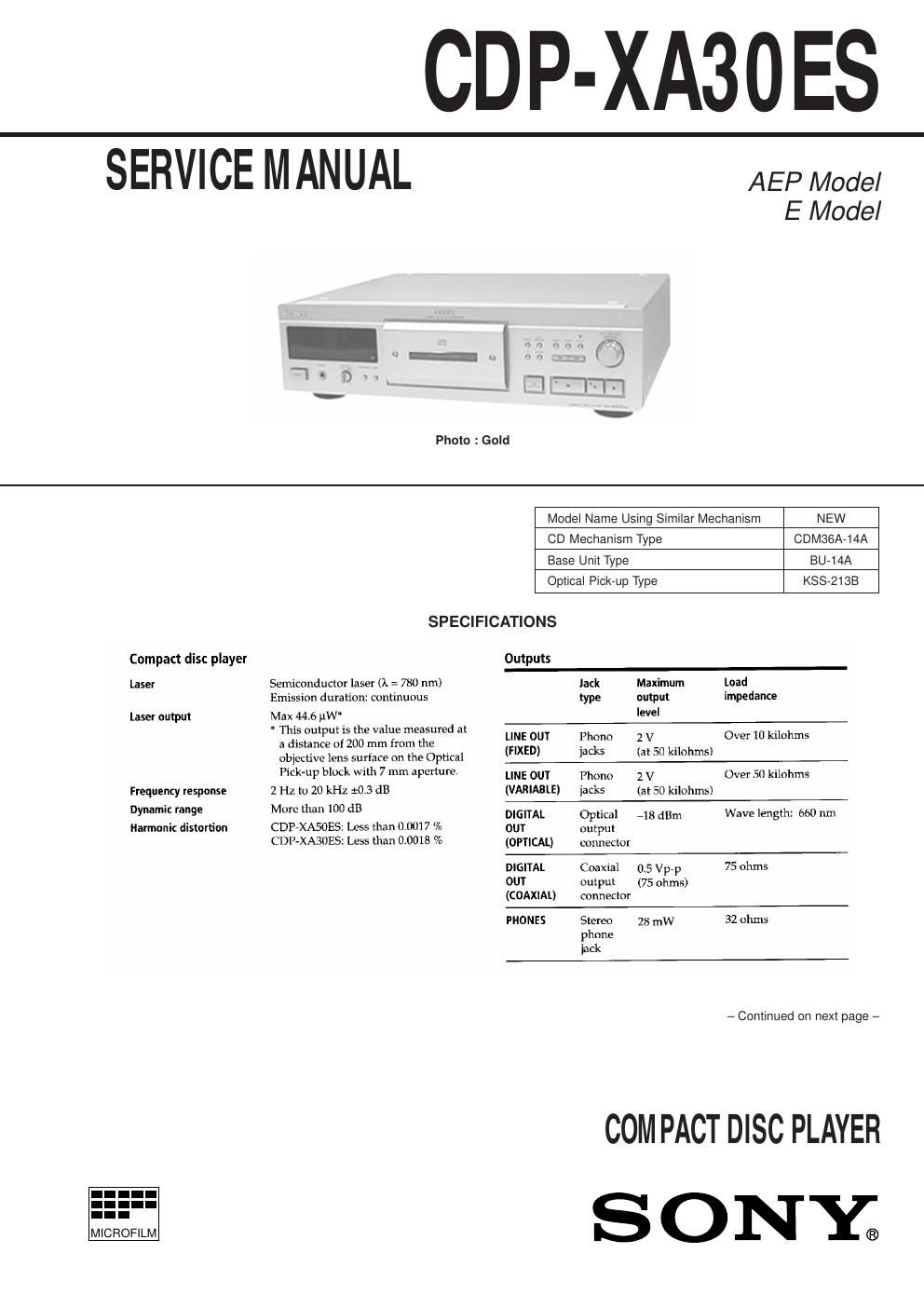

Sony cdp xa 30 es service manual

Page 2

Ð 3 Ð SECTION 1 SERVICING NOTES NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electro- static break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick-up block. Therefore, when checking the laser diode emis- sion, observe from more than 30 cm away from the objective lens. Notes on chip component replacement ·Never reuse a disconnected chip component. ·Notice that the minus side of a tantalum capacitor may be dam- aged by heat. Flexible Circuit Board Repairing ·Keep the temperature of the soldering iron around 270 ûC dur- ing repairing. ·Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). ·Be careful not to apply force on the conductor when soldering or unsoldering. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. The following caution label is located inside the unit. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. 1-2.PREPARATION FOR ADJUSTMENT AND MEASUREMENT Perform connecting the IC361 pin 2 of BD board to the line of +5V because this unit does not work without the stabilizer struc- turally. Connecting Location: [BD BOARD] (SIDE B) 1-1. H OW TO OPEN THE DISC TRAY WHEN POWER SWITCH TURNS OFF 1Insert a tapering driver into the aperture of the unit bottom, and move the limiter (LEVER) to direction of the arrow A. 2Pull the tray to direction fo the arrow B. *To close the disc tray, move the driver in the reverse direction (to IN direction). tray tapering driber Limiter (LEVER) A B IC361 1 2 +5V Q301 Q302
