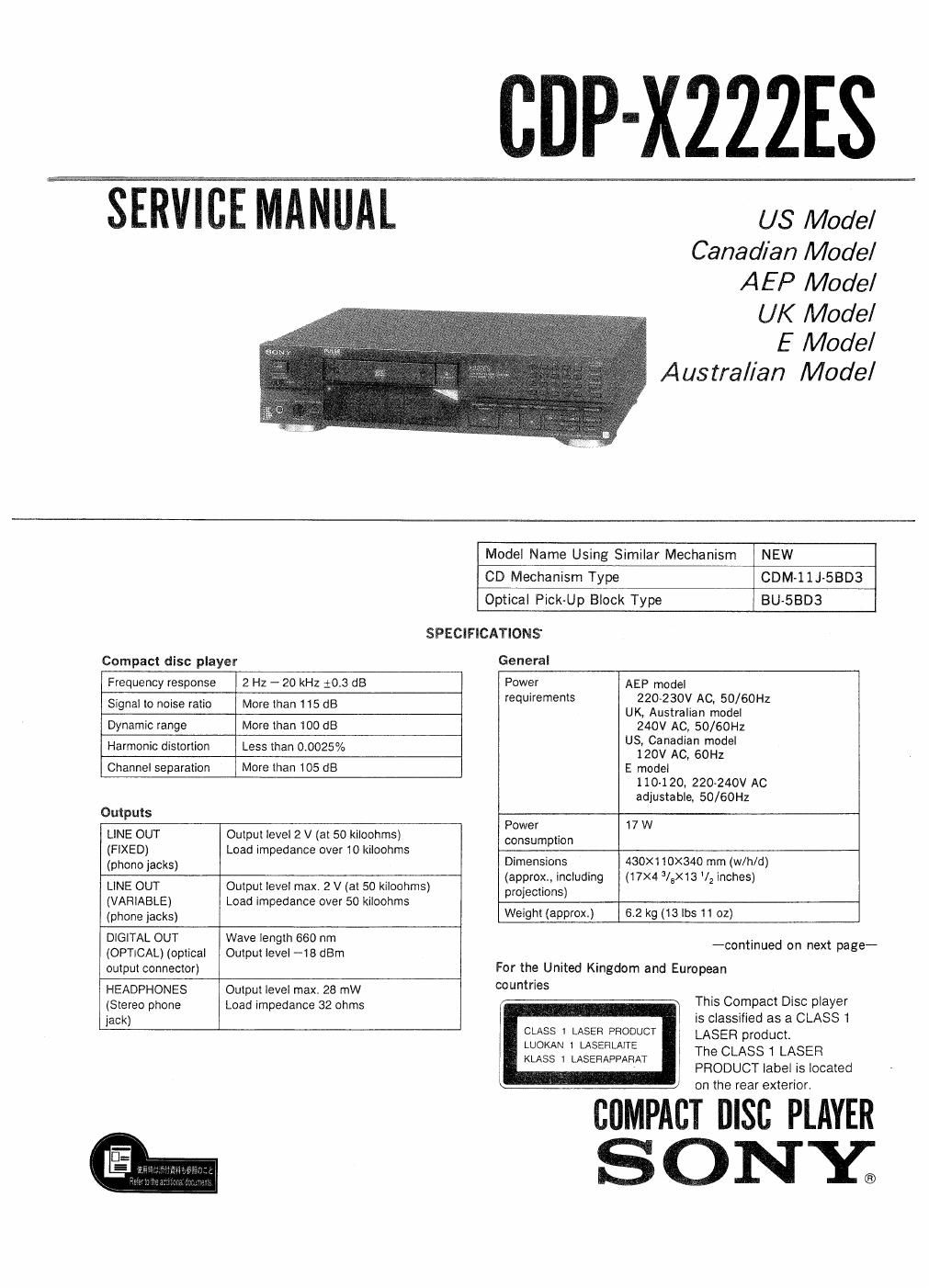

Page 1

CDP-XZZZES

SERVICE MANUAL

US Model
Canadian Model
AEP Model

UK Model
E Model
Austral/an Model

Model Name Using Similar Mechanism NEW
CD Mechanism Type CDM-11J-53D3
Optical Pick-Up Block Type BU-SBD3
SPECIFICATIONS
Compact disc player General
Frequency response 2 Hz - 20 kHz :03 dB Power AEP model

Signal to noise ratio

More than 115 dB

Dynamic range

More than 100 dB

Harmonic distortion

Less than 0.0025%

Channel separation

More than 105 dB

(OPTICAL) (optical
output connector)

Outputs
LINE OUT Output level 2 V (at 50 kiloohms)
(FIXED) Load impedance over 10 kiloohms
(phono jacks)
LINE OUT Output level max. 2 V (at 50 kiloohms)
(VARIABLE) Load impedance over 50 kiloohms
(phone jacks)
DIGITAL OUT Wave length 660 nm

Output level -1 B dBrn

HEADPHONES
(Stereo phone
jack)

Output level max. 28 mW
Load impedance 32 ohms

requirements

220-230V AC, 50/60Hz
UK, Australian model
240V AC, 50/60Hz
US, Canadian model
120V AC, 60H:
E model
110-120, 220-240V AC
adjustable, 50/60Hz

Power 17 W

consumption

Dimensions 430x110x340 mm (w/hld)
(approx, including (17x4 3/BX13 /2 inches)
projections)

Weight (approx)

6.2kg(13lbs 11 oz)

-continued on next page-

For the United Kingdom and European

countries

CLASS 1 LASER PRODUCT

LUOKAN I LASERLAITE

This Compact Disc player
is classified as a CLASS 1
LASER product.

The CLASS 1 LASER

KLASS 1 LASEFIAPPARAT

PRODUCT label is located
on the rear exterior.

cuMPAcr Disc PLAYER
S ONYg

Page 2

CDP-X222ES

Remote commander RM-0991

Remote control
system

Infrared control

Power
requirements

3 V DC with two batteries size AA
(IEC designation Fle)

Dimensions 62X18X175 mm (w/h/d)
(2 IZXZ3/32X7 inches}
Weight 130 g (4.6 oz)

Including batteries

Supplied accessories

Connecting cord

1
(2 phone plugs ~ 2 phone plugs)

Remote
commander

1

R6 (size AA)
batteries

Design and specifications subject to change without notice.

MODEL IDENTIFICATION
-Model Number Label-

SONYQ MODEL No. CDPX222ES

COMPACT DISC PLAYER

WWW

US, Canadian Mode|:AC:
AEP Mode|:AC:

UK. Australian Model: AC:
E. ModeleC:

1 20V 60H: 17W
220-230V~50Hz
240V~ 50/60Hz

110-120/220-240V~50/60Hz 17W

TABLE OF CONTENTS

m we
1. GENERAL

Location of Como] ................................................ 5
2. ELECTRICAL BLOCK CHECKING ~~~~~~~~~~~~~~~~~~~~~~~~~~~ 6
3. DIAGRAMS

3-1, circuit Boards Location ---------
3-2. Semiconductor Lead Layouts -
3-3. Printed Wiring Boards ------------------------

34' Shematic Diagram ................................................

4. EXPLODED VIEWS
4-1. Cabinet ~~~~
4-2, Front Panel
4-3. Chassis -----
4-4. CD Mechanism Block (CDMllJ-SBDS) ~
4-5. Optical Pick-up Block (BU-5BD3)

5. ELECTRICAL PARTS LIST ................................. 25

SAFETY-RELATED COMPONENT WARNINGI!

COMPONENTS IDENTIFIED BV MARK & OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB~
LISHED BY SONY.

ATTENTION AU COMPOSANT AVANT RAPPORT
A LA SECURITE!

LES COMPOSANTS IDENTIFIES PAR UNE MAROUE Q
SUR LES DIAGRAMMES scHEMATIoUES ET LA LISTE
oEs PIECES SONT CRITIQUES POUR LA SECURITE
oE FONCTIONNEMENT, NE REMPLACER CES coM-
POSANTS QUE PAR DES PIECES SONY DONT LES
NUMEROS SONT DONNES DANS CE MANUEL ou
DANS LEs SUPPLEMENTS PUBLIES PAR SONY.
