sony cdp s45

Extracted text from sony cdp s45 (Ocr-read)

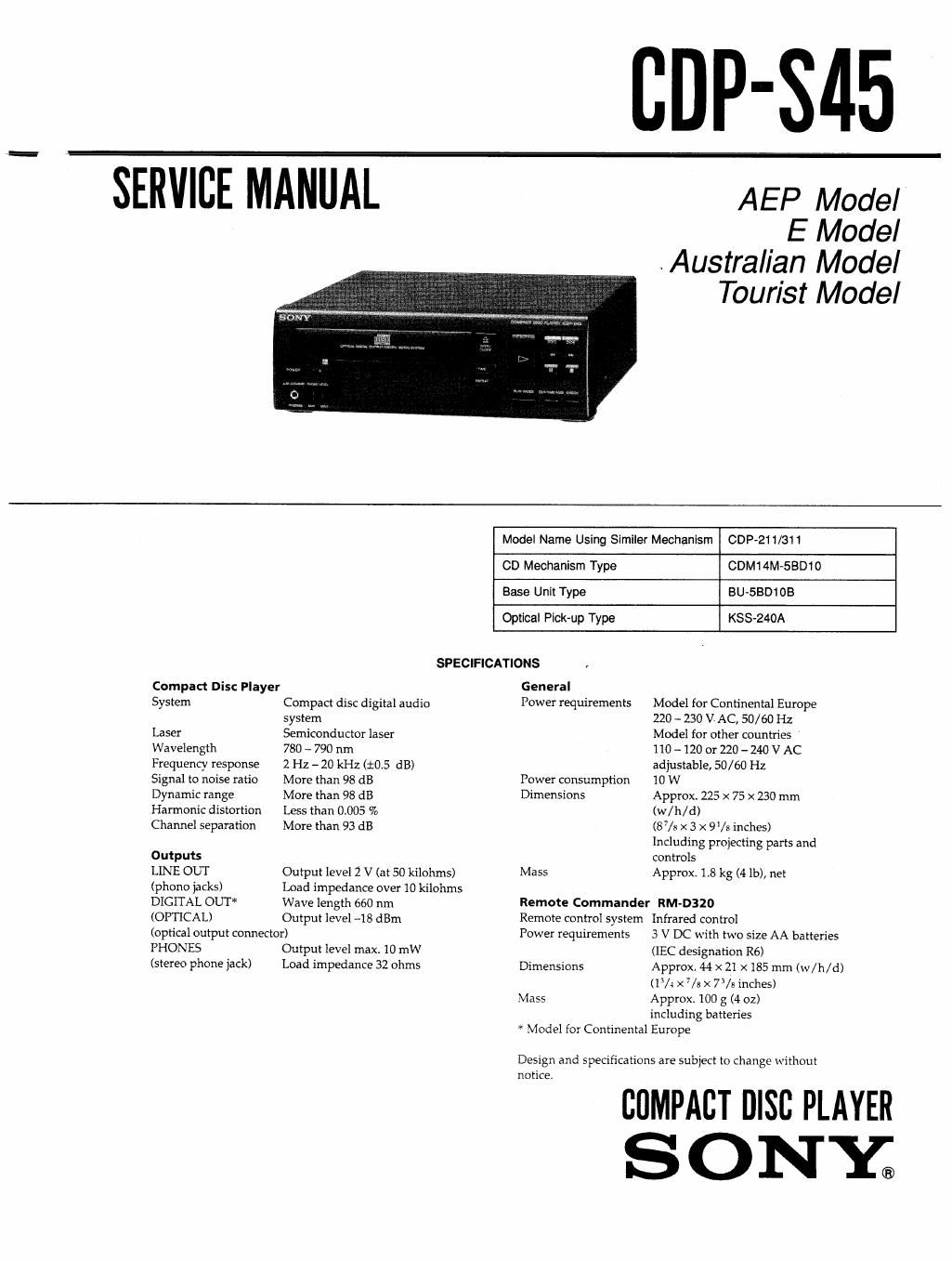

Page 1

SEIIVICE MA'iIUAL

EDP-S45

J _

AEP Model

E Model
.Australian Model
Tourist Model

Compact Disc Player

System

Laser

Wavelength
Frequency response
Signal to noise ratio
Dynamic range
Harmonic distortion
Channel separation

Outputs

LINE OUT
(phono jacks)
DIGITAL OUT"
(OPTICAL)

Model Name Using Similer Mechanism CDP-211/311
CD Mechanism Type CDM14M~58D10
Base Unit Type BU-SBDioB
Optical Pick-up Type KSS-240A
SPECIFICATIONS .
General

Compact disc digital audio
system

Semiconductor laser

780 - 790 nm

2 Hz - 20 kHz (1:05 dB)
More than 98 dB

More than 98 dB

Less than 0005 %

More than 93 dB

Output level 2 V (at 50 kllohms)
Load impedance over 10 kilohms
Wave length 660 nm

Output level -lS dBm

(optical output connector)

PHONES
(stereo phone jack)

Output level max, 10 mW
Load impedance 32 ohms

Power requirements Model for Continental Europe
220 - 230 VAC, 50/60 Hz
Model for other countries
110-1200r220-240V AC
adjustable, 50/60 Hz

Power consumption 10 W

Dimensions Approx 225 x 75 X 230 mm
(w/h /d)
(87/5 x 3 x 9/s inches)
Including projecting parts and
controls

Mass Approx. 18 kg (4 lb), net

Remote Commander RM-D320
Remote control system Infrared control
Power requirements 3 V DC with two size AA batteries

(IEC designation R6)

Dimensions Approx. 44 x 21 x185 mm (w/h/d)
(IVA X 7/:a x 73/: inches)

Mass Approx 100 g (4 02)
including batteries

X Model for Continental Europe

Design and specifications are subject to change without

summer msc PLAYER
S ONY;

Page 2

Laser component In this product is capable of
omitting radiation exceeding the limit for Class II

CLASS 1 LASER PRODUCT
LUOKAN 1 LASERLAITE

KLASS I LASERAFPARAT

This appliance is classified as a CLASS} LASER product.
The CLASS I LASER PRODUCT MARKING is located
on the rear exterior.

The following caution label is located inside the unit.

CAUTION ; INVISIBLE LASER RADIATION WHEN OPEN.
AVOID EXPOSURE TO BEAM.
- usvnuo usensmAuNG VED AENING NAR
ADVAHSEL' SIKKERHEDSAFBRVDERE ER no: AF FUNKTION.
uNoGA UDS ETTELSE FOR STRALING.
vARog : AVATTAESSA JA SUOJALUKITUS OHITETTAESSA
DLET ALTIIINA LASERSATEILVLLE.
- LASERSTRALING MAR DENNA DEL An OPPNAD
VAHNING ' ocn svinasn an URXOPPLAD.
I USYNLIG lASERSTRALING NAN DEKSEL APNES
ADVERSE UNNGA EKSFDNERING FOR STRALEN,

For Coustomers in Australia
The following caution label is located inside the unit

DANGER DANGER T
INVISIBLE LASER RADIATION DE LESER
RADIATION WHEN OPEN INVISIBLE LORS DOUVERTUFIE
AND INTEFILOCK AVEC L'ENCLENCHEMENT DE
DEFEATED. AVOID SECURITE ANNULE. EVITEFI
DIRECT EXPOSURE TO L'EXPOSITION DIRECTE AU
BEAM. RAYON, WI
MODEL IDENTIFICATION

- Specification Label -

SONY MODEL NO. cop-s45
-
COMPACT DISC PLAYER

AEP.G model : ACZ20--230V~50/60Hz, 10W
AUS model : ACZ4OV~50l60Hz

E, EA, JE model :AC : 110 -120, 220 - 240V~50l60Hz 10W

- EA : Saudi Arabia model
AUS: Australian model
JE : Tourist model
G : German model

Notes on chip component replacement
. Never reuse a disconnected chip component.

- Notice that the minus side of a tantalum capacitor may be

damaged by heat.

TABLE OF CONTENTS

mm m Em
It SERVICING NOTE ................................................. 3
2. GENERAL ............................................................... 4
3. ELECTRICAL BLOCK CHECKING ........................ 5
4 DIAGRAMS

4-1. Block Diagram .........
4-2. Printed Wiring Boards
445. Schematlc Diagram .
4-4. Semiconductor Lead Layouts
4-5. IC Pin Functions
- lC101 (CXD25150) .
- l0301 (CXD2565AM)
- 10201 (CXP82316~037Q)

5. EXPLODED VIEWS
5-1. Cabinet Section
5-2. CD Mechanism Section (CDM14M-SBD10
5-3I Optical Pick-up Block Section (BU-580108)

6. ELECTRICAL PARTS LIST ................................... 24

SAFETY-RELATED COMPONENT WARNING I!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED

LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE

OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
