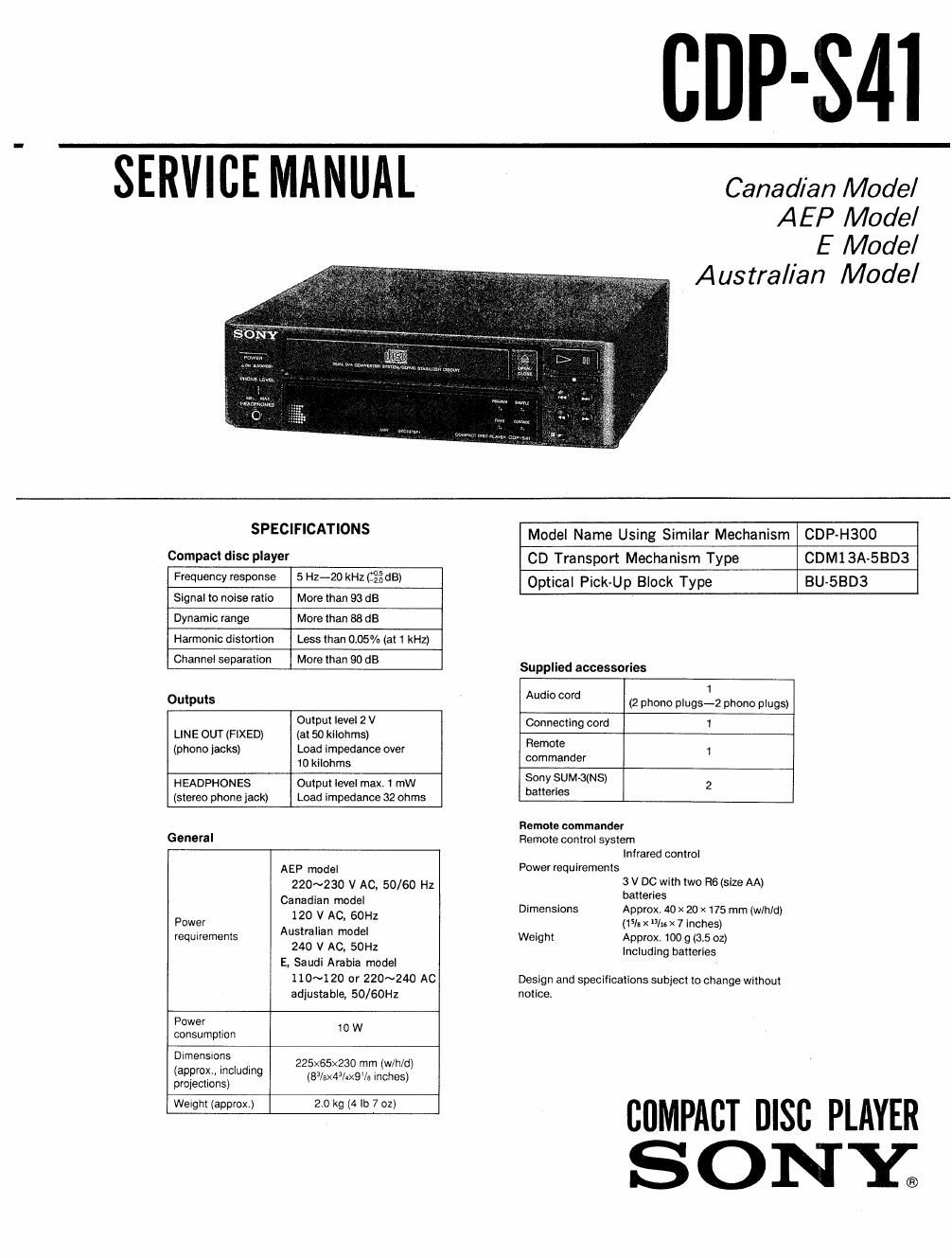

GDP-$41

For the European countries

CLASS 1 LASER PRODUCT
LUOKAN 1 LASERLAITE

KLASS 1 LASERAPPARAT

This Compact Disc player is classified as a
CLASS 1 LASER product.

The CLASS 1 LASER PRODUCT label is located
on the rear exterior.

NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT

The laser diode in the optical pick-up block may suffer
electrostatic breakdown because of the potential di-
ference generated by the charged electrostatic load,
etc. on clothing and the human body.

During repair, pay attention to electrostatic break»
down and also use the procedure in the printed matter
which is included in the repair parts.

The flexible board is easily damaged and should be
handled with care.

NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to
be focused on the disc reflective surface by the objec-
tive lens in the optical pick-up block. Therefore, when
checking the laser diode emission, observe from more
than 30cm away from the objective lens.

SAFETY-RELATED COMPONENT WARNING! !

COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.

ATTENTION AU COMPQSANT AYANT RAPPORT
A LA secum'ré!

LES COMPOSANTS IDENTIFIES PAR UNE MAROUE A
SUR LES DIAGRAMMES SCHEMATIOUES ET LA LISTE
DES nieces SONT CRITIQUES POUR LA sécumré
DE FONCTIONNEMENT. NE REMPLACER cas com-
POSANTS our: PAR DES PIECES SONY DONT LES
NUMEROS SONT DONNES DANS CE MANUEL ou
DANS LES SUPPLEMENTS PUBLIES PAR souv.

Adjusting Operat '9 Voltage

For the customers of the model equipped
with the voltage selector

Check that the voltage selector is set to the
local power line voltage. If not, set the selector
to the correct position before connecting AC
power cord to a wall outlet.

110120 'V 220-240 V

MODEL IDENTIFICATION
-Model Number Label-

SONYL MODEL No. cons
-

COMPACT DISC PLAYER

WWW

Candian Model : AC: 120V 60Hz 10W

AEP Model : AC: 220-230V~50Hz

E Saudi Arabia Model: AC: 110*120/220-240V'v50/60Hz 10W
Austrarian Model : AC: 240V~50Hz 10W
