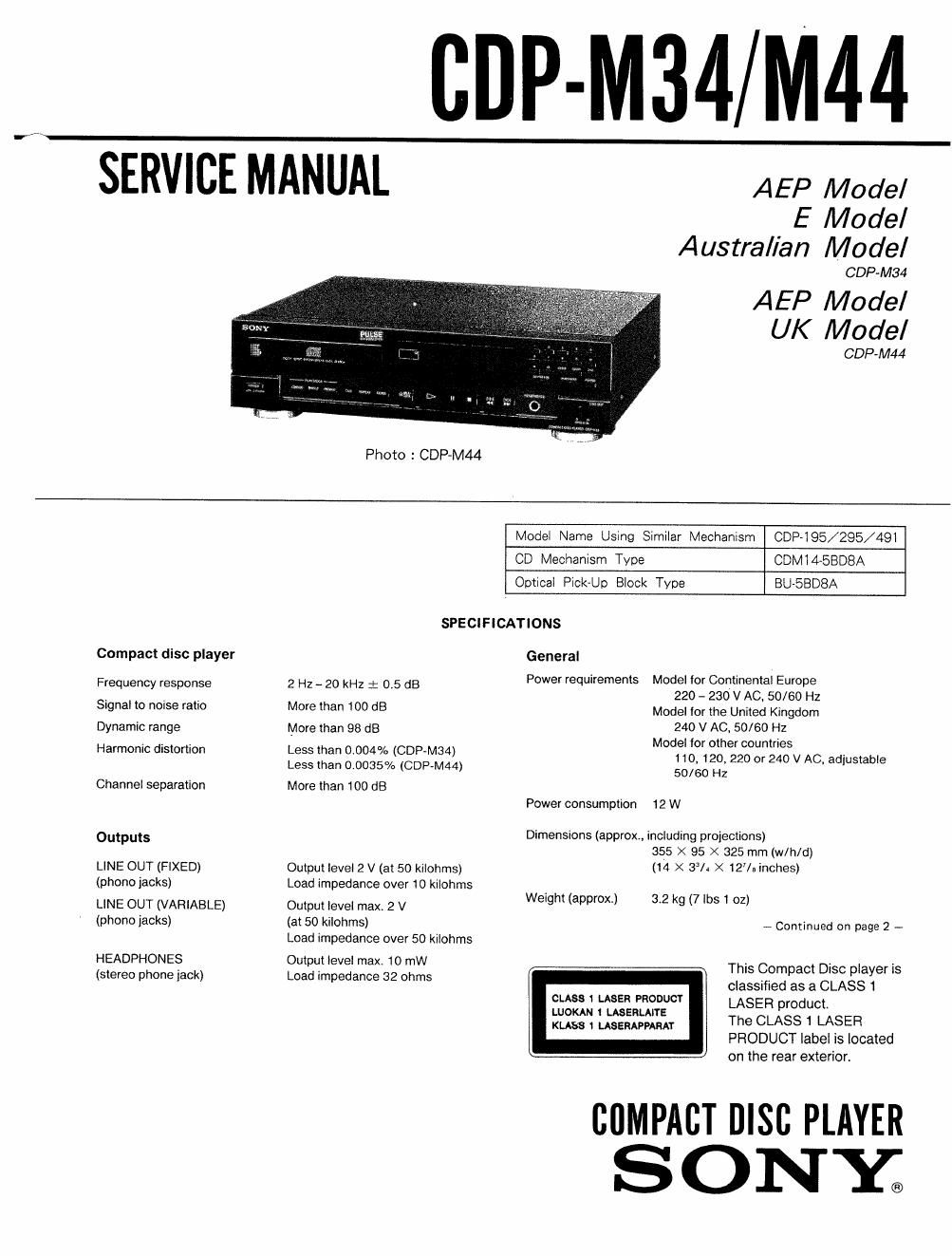

CDP-M34/M44

SERVICE MANUAL AEP Model

E Model
Australian Model

CDP-M34

AEP Model
UK Model

CDP-M44

Photo : CDP-M44

Model Name Using Similar Mechanism CDP-IQ5/295/491
CD Mechanism Type CDMIA-SBDBA
Optical Pick-Up Block Type BU-SBDBA

SPECIFICATIONS

Compact disc player General
Power requirements Model for Continental Europe

Fre uenc res onse 2 Hz - 20 kH : 05 dB

q y p Z 220-230VAC, 50/60 Hz
Signal to noise ratio More than 100 dB Model for the United Kingdom
Dynamic range More than 98 dB 240 V AC, 50/60 HZ

Model for other countries
Harmonic distortion Less than 0.004% (GDP-M34) 110 120 220 or 240 V AC adjustable
Less than 0.0035% (CDP-M44) 50/50 H;

Channel separation More than 100 dB

Power consumption 12 W

Outputs Dimensions (approx, including projections)
355 X 95 X 325 mm (wlh/d)
LINE OUT (FIXED) Output level 2 v (at 50 kilohms) (14 >< 3% X 12% inches)
(phone jacks) Load impedance over 10 kilohms
W ' , 3.

LINE our (VARIABLE) Output level max 2 v 99 (W I 2 k9 (7 ms 1 I
(phone jacks) (at 50 kilohms) M Continued on page 2 -

Load impedance over 50 kilohms
HEADPHONES Output level max. 10 mW This Compact Disc player is
(stereo phone tack) Load impedance 32 ohms

classified as a CLASS 1
cuss 1 LASER PRODUCT LASER product
LUOKAN 1 LASERLMTE .

Kass , 85mm, The CLASS 1 LASER
PRODUCT label is located
on the rear exterior.

COMPACT nIsc PLAYER
SONY;
