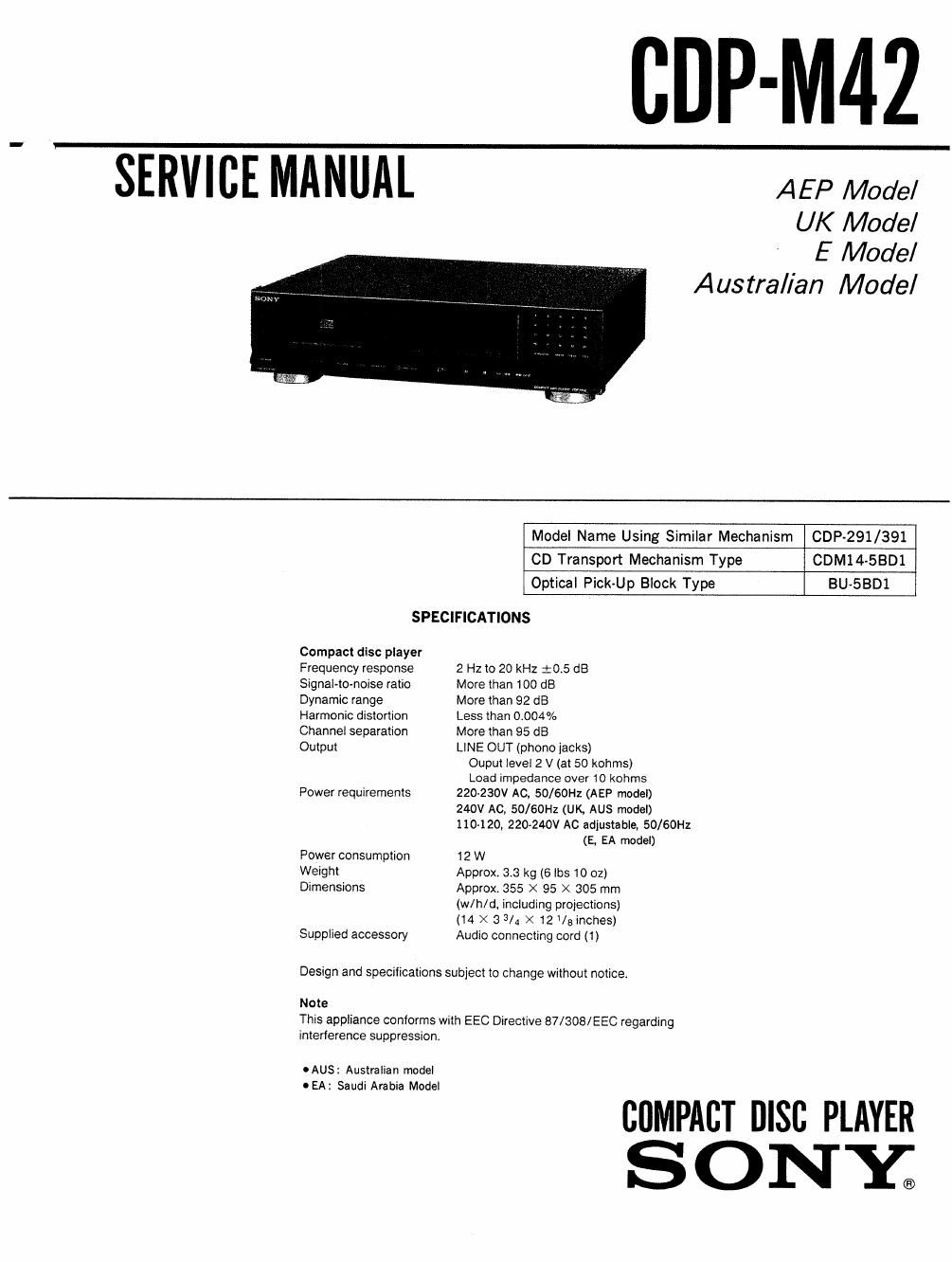

Page 1
CDP-M42
SERVICE MANUAL AEP Model
UK Model
E Model
Austral/an Model
Model Name Using Similar Mechanism COP-291/391
CD Transport Mechanism Type CDM14-SBDl
Optical Pick-Up Block Type BU-SBDl
SPECIFICATIONS
Compact disc player
Frequency response 2 Hz to 20 kHz :05 d8
SignaLto-noise ratio More than 100 dB
Dynamic range More than 92 dB
Harmonic distortion Less than 0.004 %
Channel separation More than 95 dB
Output LINE OUT (phone jacks)
Ouput level 2 V (at 50 kohms)
Load impedance over 10 kohms
Power requirements 220230V AC, 50/60Hz (AEP model)
240V AC, 50/60Hz (UK1 AUS model)
110-120, 220-240V AC adjustable, 50/60HZ
(E, EA model)
Power consumption 12 W
Weight Approx 3.3 kg (6 lbs 10 02)
Dimensions Approx 355 X 95 X 305 mm
(w/h/d, including projections)
(14 X 33/4 ><12V3inchesl
Supplied accessory Audio connecting cord (1)
Design and specifications subject to change without notice
Note
This appliance coniorms with EEC Directive 87/308/ EEC regarding
interference suppresston.
0AUS: Australian model
DEA: Saudi Arabia Model
COMPACT DISC PLAYER
S ONY;
Page 2
CDP-M42
1t Laser Diode Properties MODEL IDENTIFICATION
OMaterial: GaAIAs -Specification Labels-
oWavelength: 780nm
oEmission Duration: continuous
S ONYo MODEL N04 CDP-M42
For the United COMPACT DISC PLAYER
Kingdom and European countries /
This Compact Disc player is
classified as a CLASS 1
CLASS I LASER PRODUCT
LUOKAN LASERLAIIE LASER product. The CLASS SERIAL No.
KLASSI gamma 1 LASER PRODUCT label is
located on the rear exteriorr
A
I
MADE IN JAPAN
MADE IN FRANCE
AEP model: AC: 220-230V~50/60H2
NOTES ON HANDLING THE OPTICAL PICK-
UP BLOCK 0 BASE UNlT UK Aus model: AC: 240V~50/60Hz
E, EA model: Ac: 110-120, 220-24ov~
The laser diode in the optical pick-up block may 50/60Hz 12W
suffer electrostatic breakdown because of the poten-
tial difference generated by the charged electrostatic
load, etc. on clothing and the human body
During repair, pay attention to electrostatic break-
down and also use the procedure in the printed
matter which is included in the repair parts
The flexible board is easily damaged and should be
handled with care.
AUS: Australian model
EA: Saudi Arabia Model
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so
as to be focused on the disc reflective surface by the
objective lens in the optical pick-up block. There-
fore, when checking the laser diode emission, observe
more than 25 cm away from the objective lens.
SAFETY-RELATED COMPONENT WARNINGII
COMPONENTS IDENTIFIED BV MARK & OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
