Sony cdp m 11 c service manual
This is the 34 pages manual for sony cdp m 11 c service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony cdp m 11 c service manual (Ocr-read)

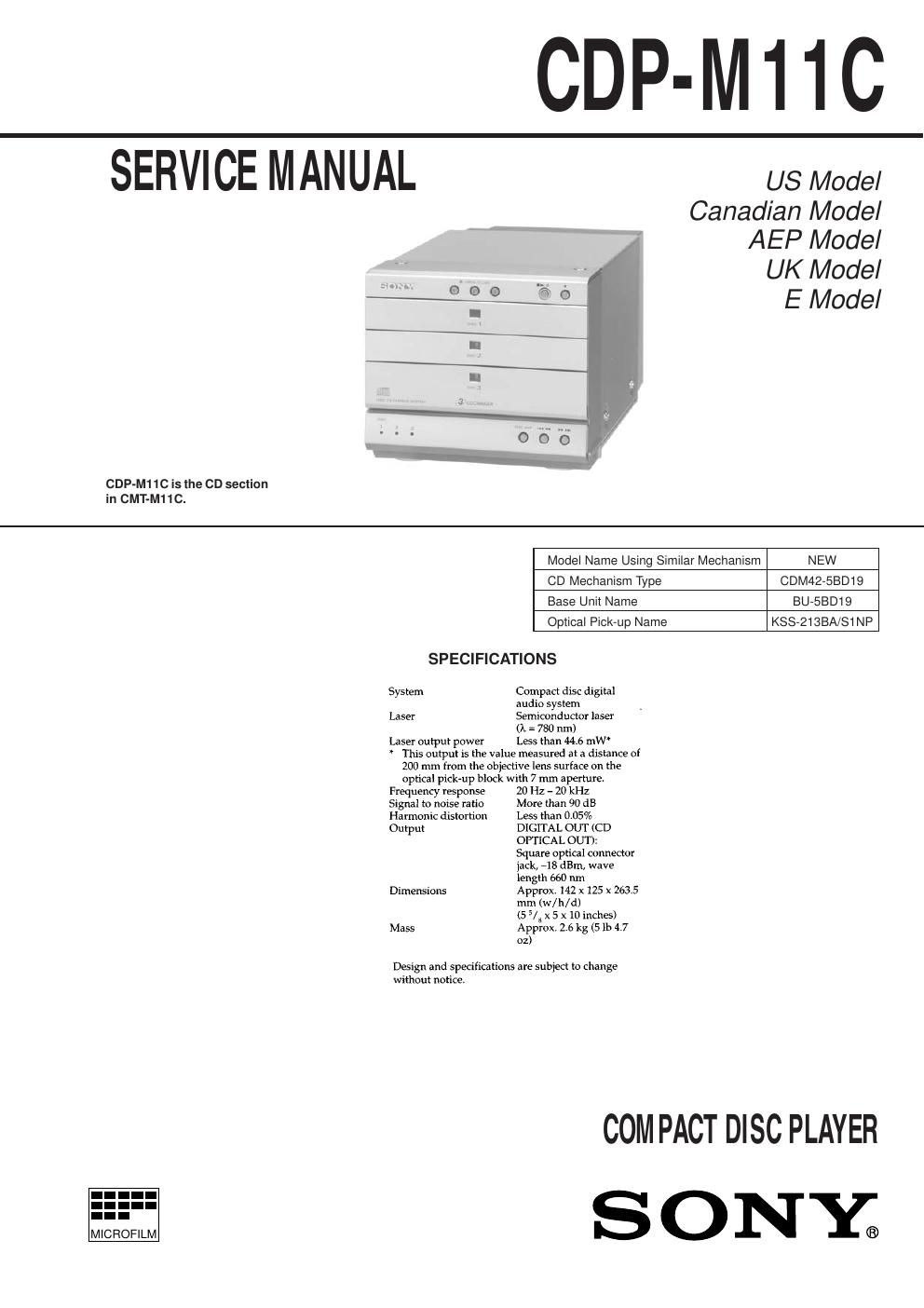

Page 1
Ð 2 Ð TABLE OF CONTENTS 1. SERVICING NOTES 1-1. Mechanism Motor Direct Drive Mode ............................ 3 1-2. Aging Mode ..................................................................... 3 2. GENERAL ................................................................... 4 3. DISASSEMBLY .......................................................... 8 4. TEST MODE .............................................................. 12 5. ELECTRICAL ADJUSTMENTS ......................... 12 6. DIAGRAMS 6-1. Printed Wiring Board Ð BD Section Ð ............................. 15 6-2. Schematic Diagram Ð BD Section Ð ................................ 17 6-3. Schematic Diagram Ð MAIN/PANEL/MOTOR Section Ð .............................. 21 6-4. Printed Wiring Boards Ð MAIN/PANEL/MOTOR Section Ð .............................. 25 6-5. IC Pin Function Description ............................................ 32 7. EXPLODED VIEWS ................................................ 34 8. ELECTRICAL PARTS LIST ................................ 39 NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electro- static break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick-up block. Therefore, when checking the laser diode emis- sion, observe from more than 30 cm away from the objective lens. Notes on chip component replacement ·Never reuse a disconnected chip component. ·Notice that the minus side of a tantalum capacitor may be dam- aged by heat. Flexible Circuit Board Repairing ·Keep the temperature of the soldering iron around 270 ûC dur- ing repairing. ·Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). ·Be careful not to apply force on the conductor when soldering or unsoldering. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. The following caution label is located inside the unit. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. ATTENTION AU COMPOSANT AYANT RAPPORT Ë LA SƒCURITƒ! LES COMPOSANTS IDENTIFIƒS PAR UNE MARQUE ! SUR LES DIAGRAMMES SCHƒMATIQUES ET LA LISTE DES PIéCES SONT CRITIQUES POUR LA SƒCURITƒ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS QUE PAR DES PIéCES SONY DONT LES NUMƒROS SONT DONNƒS DANS CE MANUEL OU DANS LES SUPPLƒMENTS PUBLIƒS PAR SONY.SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
Page 2
Ð 3 Ð 1-1. MECHANISM MOTOR DIRECT DRIVE MODE ¥ Functional Overview A mechanism has three motors (M400, M401 and M402), and if a motor does not run, each motor can be driven during the time that the button is pressed. ¥ Setting Method While pressing DISC SKIP button and 6 OPEN/CLOSE 3 button, insert the AC plug cord into the AC outlet. (Disc LEDs are all blinking in green and orange.) ¥Button Input and Operation in Mechanism Motor Direct Drive Mode Table 1-1. SECTION 1 SERVICING NOTES BUTTON OPERATION MOTOR ) +Carrier UP = 0Carrier DOWNM400 ^Tray IN pTray OUTM402 6 OPEN/ CLOSE 1Gear 6 OPEN/M401 CLOSE 2Chucking ¥ Releasing Method Turn off the power switch, and this mode is reset. 1-2. AGING MODE For the AGING MODE, refer to the CMT-M11C service manual (Parts No.: 9-960-794-11).
