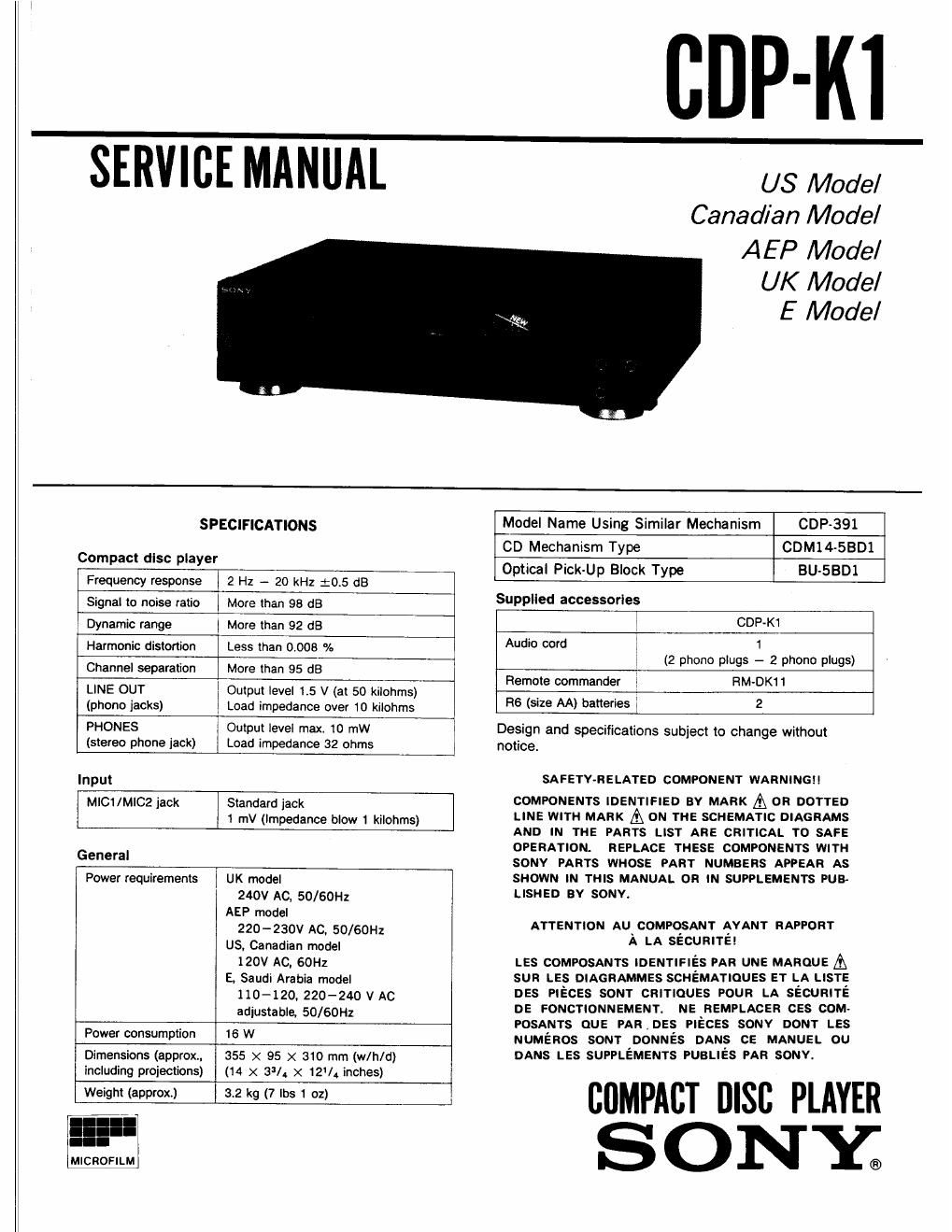

GDP-KI

US Model
Canadian Model
AEP Model

UK Model
E Model

SERVICE MANUAL

SPECIFICATIONS Model Name Using Similar Mechanism GDP-391
C d' l CD Mechanism Type CDM14-SBD1
om ac Isc 3 er . -
p p y Optical Pick-Up Block Type BU~SBD1
Frequency response 2 Hz - 20 kHz :05 dB
Signal to noise ratio More than 98 dB Supplied accessories
Dynamic range More than 92 as l CDP-K1
Harmonic distortion Less than 0,006 I. Audio cord I 2 h l 1 2 h l
l o s - one u 5
Channel separation More than 95 dB 1 ( p on p 9 p p g )
Remote commander l HM~DK11
LINE OUT Output level 1.5 V (at 50 kilohrns) _ , L
(phono jacks) Load impedance over 10 kilohms R5 (5'26 AA) batteries l 2
PHONES Output level max 10 mW Design and specifications subject to change without

(stereo phone jack)

Load impedance 32 ohms

Input
MlC1/MICZ jack Standard jack
1 mV (Impedance blow 1 kllohms)
General

Power requirements

UK model
240V AC, 50/60Hz
AEP model
220-230V AC. 50/60Hz
US, Canadian model
120V AC, 60H:
E, Saudi Arabia model
110-120. 220-240 V AC
adjustable, 50/60Hz

Power consumption

16W

Dimensions (approx,
including projections)

355 X 95 X 310 mm (w/hld)
(14 X 33/; X 12/. inches)

Weight (approx)

3.2 kg (7 lbs 1 oz)

notice.

SAFETY-RELATED COMPONENT WARNINGII

COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TD SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB«
LISHED 8! SONY.

ATTENTION Au COMPQSANT AYANT RAPPORT
A LA SECURITE!

LES COMPOSANTS IDENTIFIES PAR UNE MAROUE A
sun LES DIAGRAMMES scHéMATIouEs ET LA LISTE
DES PIECES som CRITIQUES POUR LA SECURITE
DE FONCTIONNEMENT. NE REMPLACER ces COM-
POSANTS oue PAR,DES PIECES so~v DONT LES
NUMEROS so~T DONNES DANS CE MANUEL ou
oANs LES SUPPLEMENTS Pusués PAR souv.

comm msc PLAYER
S 0 NY;

iii
in!"

(MICROFILM

Page 2

CDP-K 1

TABLE OF CONTENTS

gem Title egg
1. GENERAL
- Location of Controls ............................. 5
2. ELECTRICAL BLOCK CHECKING .................. 6
3. DIAGRAMS
3-1. Circut Boards Location ............................ 8
3-2. Semiconductor Lead Layous ...................... 9
3-3. Printed Wiring Boards ........................... 10
3-4. Schematic Diagram-Main Section- .............. 13
3-5. Schematic DiagramfiMD Section- ................ 17
l
4. EXPLODED VIEWS
4-1. Cabinet Section .............................. 21
4-2. Front Panel Section ...............
4-3. MD Block (CDM14-5BD1) Section ............ 23
4-4. Optical Pick-Up Block (BU-SBDI) Assembly ..24
5. ELECTRICAL PARTS LIST ...................... 25

For the united Kingdom and European
countries

classified as a CLASS 1
LASER product.
The CLASS 1 LASER

CLASS 1 LASER PRODUCT
LUOKAN I LASERLAITE

KLASS 1 LABERAPPARAT

on the rear exterior.

NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT

The laser diode in the optical pick-up block may suffer
electrostatic breakdown because of the potential di-
ference generated by the charged electrostatic load,
etc. on clothing and the human body.

During repair, pay attention to electrostatic break-
down and also use the procedure in the printed matter
which is included in the repair parts.

The flexible board is easily damaged and should be
handled with care.

NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to
be focused on the disc reflective surface by the objec-
tive lens in the optical pick-up block. Therefore, when
checking the laser diode emission. observe from more
than 30cm away from the objective lens.

MODEL IDENTIFICATION
-Specification Label-

SON

COMPACT DISC PLAYER

V//////////////////////////

MODEL NO. GDP-K1

US, Canadian model:
AC: 120V 60Hz 16W
AEP model: AC: 220-230V~50/60Hz
UK model: 240V~50l60H1
E. Saudi Arabia model:
AC: 110-120, 220-240~50/60HZ 16W

This Compact Disc player is

PRODUCT label is located
