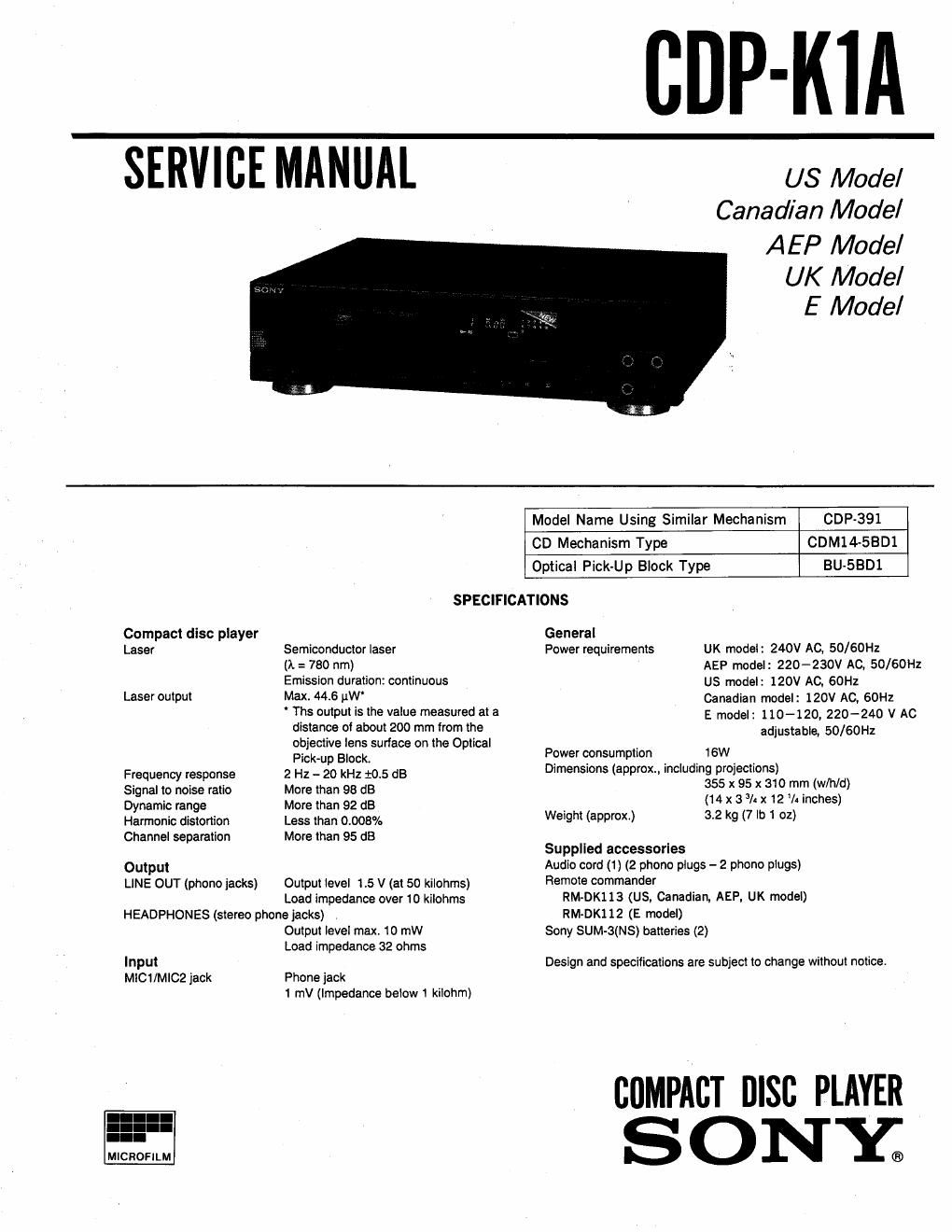

SERVICE MANUAL

GDP-KIA

US Model
Canadian Model
AEP Model

UK Model
E Model

Model Name Using Similar Mechanism GDP-391
CD Mechanism Type CDM14-SBDI
Optical Pick-Up Block Type BU-5BDl
SPECIFICATIONS
Compact disc player General
Laser Semiconductor laser Power requirements UK model: 240V AC, 50/60Hz
(A: 780 nm) AEP model: 220-230V AC, 50/60Hz
Emission duration: continuous US model: 120V AC, 60Hz
Laser output MaX- 446 lIW' Canadian model: 120v Ac, 60H:

Ths output is the value measured at a

distance at about 200 mm from the
objective lens surface on the Optical

Pick-up Block.
Frequency response 2 Hz - 20 kHz :05 dB
Signal to noise ratio More than 98 dB
Dynamic range More than 92 dB
Harmonic distortion Less than 0.008%
Channel separation More than 95 dB
Output
LlNE OUT (phonoiacks) Output level 1.5 V (at 50 kilohms)

Load impedance over to kilohms
HEADPHONES (stereo phone jacks)

Output level max 10 mW

Load impedance 32 ohms
Input
MlC1/MICZ jack Phone jack
1 mV (impedance below 1 kilohm)

MICROFILM

E model: 110-120. 220-240 V AC
adjustable. 50/60Hz

Power consumption 16W
Dimensions (approx., including projections)
355 x 95 x 310 mm (w/hld)
(14 x 3 l: x 12 la inches)
Weight (approx) 3.2 kg (7 lb 1 oz)
Supplied accessories
Audio cord (1) (2 phono plugs - 2 phone plugs)
Remote commander
RM-DKllS (US, Canadian. AEP, UK model)
RM-DK112 (E model)
Sony SUM-SINS) batteries (2)

Design and specifications are subject to change without notice

COMPACT Disc PLAYER

SONXC

Page 2

COP-KIA

TABLE OF CONTENTS
Section Title My
1. GENERAL
- Identifying the Parts ............................. 4

~ 2. ELECTRICAL BLOCK CHECKING .................. 5

3. DIAGRAMS

3~l. Block Diagram ................................... 7

3-2. Circut Boards Location .......................... 10

3-3. Semiconductor Lead Layous ...................... 11

3-44 Printed Wiring Boards ............................ 12

3-5. Schematic Diagram-Main Section- .............. 15

3-6. Schematic Diagram-MD Section- ................ 19

3-7. Pin Description .................................. 23

4. EXPLODED VIEWS

4-1. Cabinet Section .............................. 24

4-2. Front Panel Section .......................... 25

4-3. MD Block (CDM14~5BD1) Section ............ 26

4-4. Optical Pick-Up Block (BU-fiBDl) Assembly ..27

5.

ELECTRICAL PARTS LIST ...................... 28

For the United Kingdom and European countries

This compact Disc player
is classified as a CLASS 1
LASER product.

The CLASS 1 LASER
PRODUCT label is located
on the rear exterior

CLASS 1 LASER PRODUCT

LUOKAN 1 LASERLAITE
KLASS I LASERAPPARAT

SAFETY-RELATED COMPONENT WARNINGII

COMPONENTS IDENTIFIED BY MARK A 0R DOTTED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LISTIARE CRITICAL T0 SAFE OPERATION.

REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS

' MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT

The laser diode in the optical pick-up block may suffer
electrostatic breakdown because of the potential differ»
ence generated by the charged electrostatic load, etc. on
clothing and the human body.

During repair, pay attention to electrostatic breakdown
and also use the procedure in the printed matter which is
included in the repair parts.

The flexible board is easily damaged and should be
handled with care.

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be
focused on the disc reflective surface by the objective lens
in the optical pick-up block. Therefore, when checking the
laser diode emission, observe more than 30cm away from
the objective lens.

MODEL IDENTIFICATION
- Specification Label -

SONY;

MODEL NO. CDP-KlA

WWW

SERIAL NO.
MADE IN JAPAN

l

AC: 120V 60Hz 16W

Ac : 220 - 230v ~ 50/60Hz
AC : 240v ~ 50/6on

AC : 120/220/24ov ~ 50/60Hz

US, Canadian Model :
AEP Model :

UK Model :

E Model :

ATTENTION AU COMPOSANT AYANT
RAPPORT A LA SECURITE!

LES COMPOSANTS mEu'rmEs PAR UNE MAROUE A
sun as DIAGRAMMES SCHEMATIQUES ET LA on; DES
PIECES sour CRITIQUES noun LA sEcunrrE DE
FUNCTIONNEMENT. NE REMPLACER CES COMPOSANTS
QUE PAR DES PIECES souv DONT LEs uqunqs sour
oounés DAns CE MANUEL ou DANS LES SUPPLEMENTS
PUBLIES PAR sonv.

_2._
