Sony cdp h 6700 service manual

This is the 22 pages manual for sony cdp h 6700 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 22
sony cdp h 6700 service manual

Extracted text from sony cdp h 6700 service manual (Ocr-read)

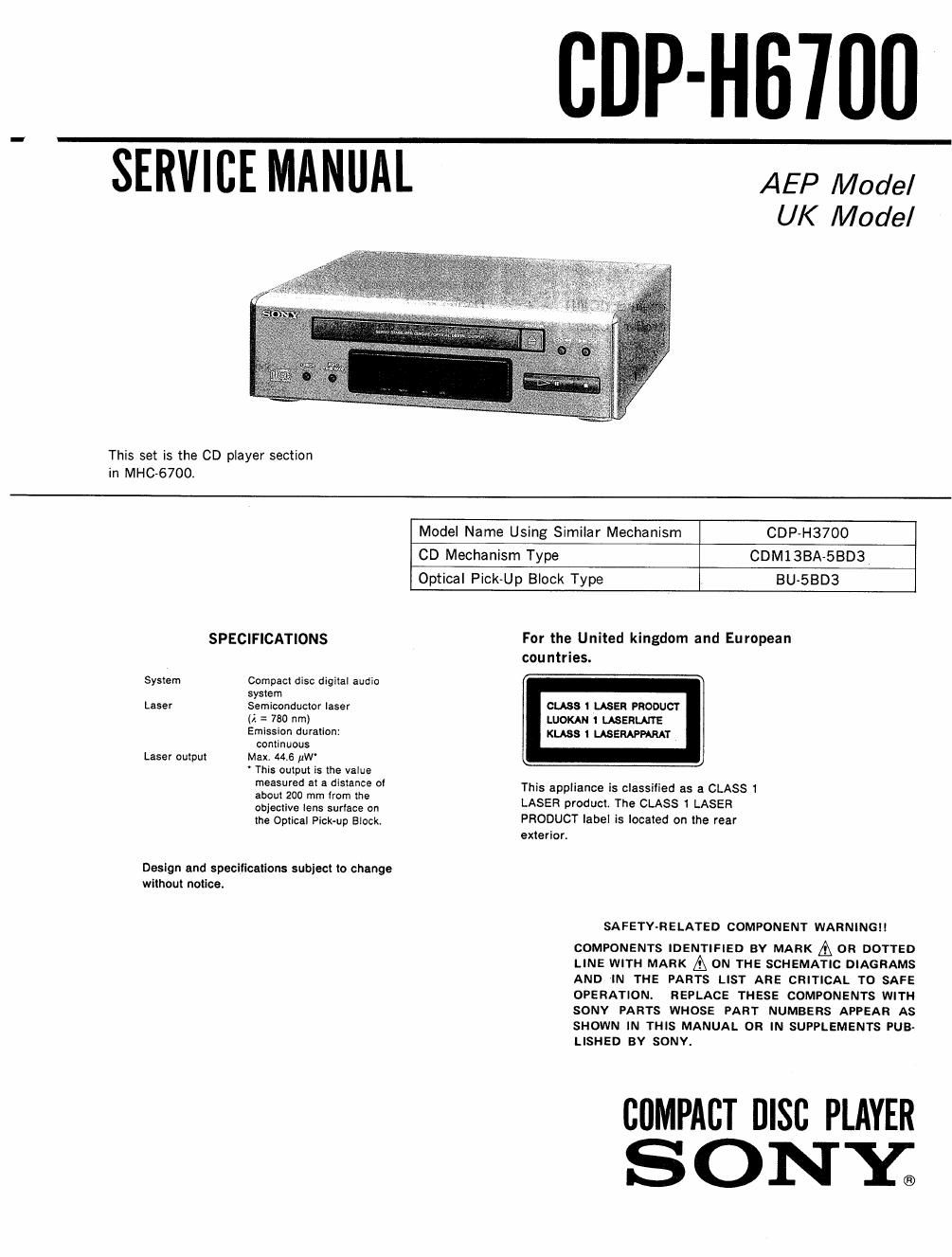

Page 1

EDP-H5700

SERVICE'WIANUAL' AEPMode,

UK Model

This set is the CD player section

in MHC-6700i
Model Name Using Similar Mechanism CDP-H3700
CD Mechanism Type CDM13BA-SBD3
Optical Pick-Up Block Type BU-SBD3
SPECIFICATIONS For the United kingdom and European
cou ntries.
System Compact disc digital andio
system
Laser Semiconductor laser CLASS 1 LASER PRODUCT
(i. = 780 nm) LUOKAN I LASERLAITE
Emission duration: KLAss 1 LASERAPPAHAT
continuous
Laser output Max. 44.6 uw
This output is the value
gags: 3:53:35: °' This appliance is classified as 3 CLASS 1
objective lens smace on LASER product, The CLASS 1 LASER
the Optical Pick-up Block. PRODUCT label Is located on the rear

exterior.

Design and specifications subjocl to change
without notice.

SAFETYARELATED COMPONENT WARNING

COMPONENTS IDENTIFIED BY MARK & OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL T0 SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.

COMPACT DISC PLAYER
