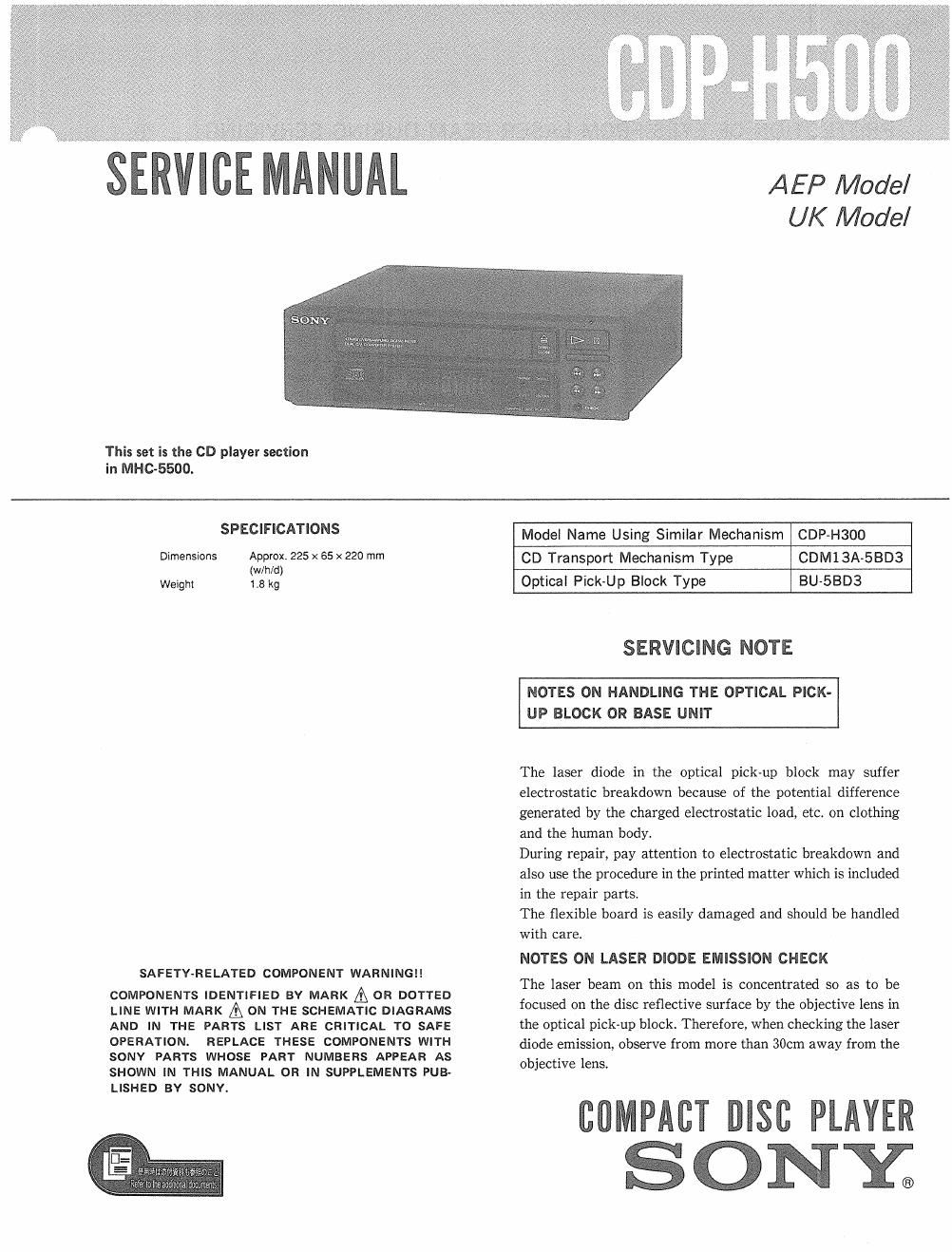

Page 1

SERVICE MANUAL

AE P Mode/
UK Model

This set is the CD player section

in MHC-5500.
SPECIFICATIONS Model Name Using Similar Mechanism CDP-H300
Dimensmns AP/gg-225X65X220 "m CD Transport Mechanism Type CDM13A-SBD3
/
Weight (Iva kg Optical Pick-Up Block Type BU-SBD3

SAFETY-RELATED COMPONENT WARNINGII

COMPONENTS IDENTIFIED BY MARK A 0R DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.

SERVICING NOTE

NOTES ON HANDLING THE OPTICAL PICK-

UP BLOCK OR BASE UNIT

The laser diode in the optical pick-up block may suffer
electrostatic breakdown because of the potential difference
generated by the charged electrostatic load, etc. on clothing
and the human body

During repair, pay attention to electrostatic breakdown and
also use the procedure in the printed matter which is included
in the repair parts.

The flexible board is easily damaged and should be handled
with care.

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be
focused on the disc reflective surface by the objective lens in
the optical pick-up block. Therefore, when checking the laser
diode emission, observe from more than 30cm away from the
objective lens.

summer msc PLAYER
SONY;

Page 2

CDP-H500

PROTECTION OF EYES FROM LASER BEAM DURING SERVICING

This set employs a laser. Therefore, be sure to follow 1. Laser Diode Properties
carefully the instructions below when servicing. Material: Ga Al As

C

o Wavelength: 780 mm

0 Emission Duration: continuous
CAUTION o Laser Output Power: less than 44.6 uW*

* . . .
Use of controls or adjustments or performance Thls output 15 the val; "leagumd m a mm or
. . 200 mm from the objective lens surface on the

of procedures other than those specmed herein Optical Pick-up Block.
may result in hazardous radiation exposure.

2. During service, do not take the Optical Pick-up Block
apart, and do not adjust the APC circuit. If there is a
breakdown in the APC circuit (including laser diode),
replace the entire Optical Pick-up Block (including
APC board).

BESKYTTELSE AF OJNE MOD LASERSTRALING UNDER SERVICE

I deue apparai anvendes laserlys. Derfor skal 1' Laser»didoe data

nedenstéende instruktioner noje folges under service 0 Materiale: GaAlAs

O Belgelaengde: 780 nm
Folg iovrigl instruklionerne i servicemanualen. O Udstraling: Kontinuerlig
O Laseroutput: Max. 0,4 mW*
* Mélt i 1,6 mm afstand Ira overfladen af objektiv-
ADVARSEL linsen pa den opiiske pick-up enhed.
Under service ma ainena ikke komme naar objektiv-linsen . Klassifikation: Klasse lllb.

pa den optiske pick-up enhed. l tiliaalde at at dot er
nadvondigt at kontrollere udsendalsen at Iaserlys, skal
det ske i en alstand at more end 25 cm fra den optiske
pick-up.

2, Adskil aldrig den opiiske pick-up enhed under
service, 03 juster ikke APC kredslebet(Automatic
Power Control). Hvis APC kredslebet (incl. laser-
dioden) bryder ned, skal hele den optiske pick-up
enhed (incl APC prinikortet) udskiftes.

LASER ADVARSEL MAERKNING

Folgende maerkning findes indvendig i apparatet:
l. Advarsel Markning

CAUTION , mwsiois uses RADIAVION wnu open
um wrumcxs unmzn om ExvosuRE no nun

ADVARSEL usvmm tAsensiniimG VED Aumn
NA» smxaixsos-rsavozn: En UUE u ru~xno~ wast
unsumsz row SVIALING

VAROITUS: Laite sisaltaa, laserdiodin,joka léhettaa
(nakyméténtfi) silmille vaarallista lasersateilyé.
