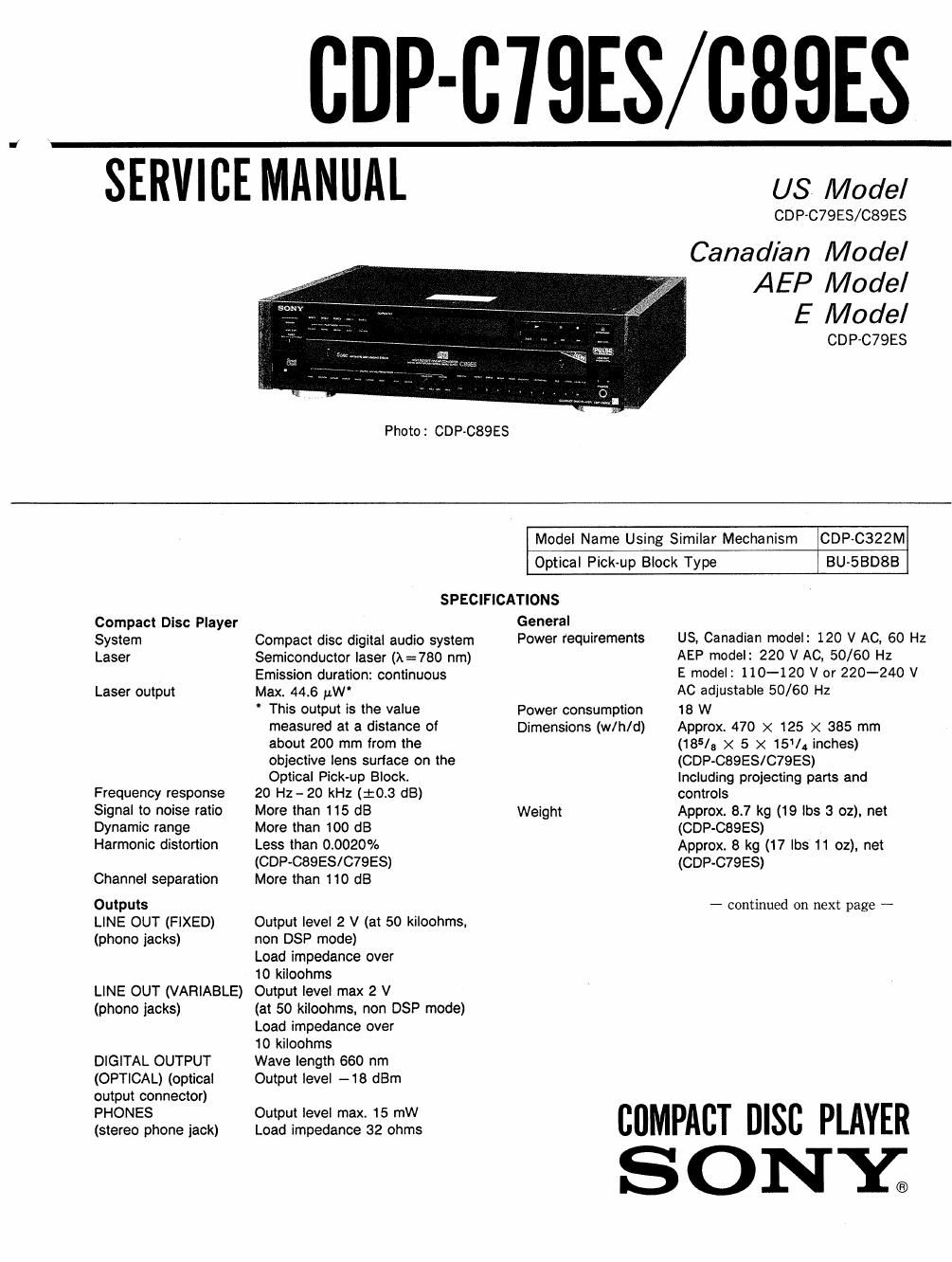

Sony cdp c 89 es service manual

Page 2

CDP-C79ES/C89ES

Remote Commander RM-D715 (cop-c7955 supplied)
RM-DBIS (cop-cases supplied)
Remote control system Infrared control
Power requirements 3 V DC with two size AA batteries
(IEC designation R6)

Dimensions 62 x 20 x 175 mm (w/h/d)
(2V2 X 13/13 X 7 inches)
Weight 130 g (4.6 oz) including batteries

Supplied Accessories
Connecting cord

(2 phono plugs H 2 phono plugs) (1)
Serial chain cable (1) (CDP-CBQES only)
CONTROL S cable (1) (CDP-CSQES only)
Remote commander (1)
Sony SUM-3(NS)
Screws (1 set)

Design and specifications are subject to change without
notice.

For the European Countries.

* This Compact Disc player is
classified as a CLASS 1
LASER product.

The CLASS 1 LASER
PRODUCT label is located
on the rear exterior.

CLASS I LASER PRODUCT

LUOKAN l LASERLAITE
KLASS 1 LASERAPPARAT

NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT

The laser diode in the optical pick~up block may suffer
electrostatic breakdown because of the potential di-
ference generated by the charged electrostatic load,
etc. on clothing and the human body.

During repair, pay attention to electrostatic break-
down and also use the procedure in the printed matter
which is included in the repair parts.

The flexible board is easily damaged and should be
handled with care.

NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to
be focused on the disc reflective surface by the objec
tive lens in the optical pick-up block. Therefore, when
checking the laser diode emission, observe from more
than 30cm away from the objective lens.

Note on the Transit Key

The transit key and the red lock screw (CDP-CBQES only)
on the bottom exterior of the unit protects the optical
system against shock during transportation. Before
operating the CD player. be sure to remove the key and
red lock screw (CDP-CBQES only) by following the
instructions on the label, and store it in a safe place.

When transporting the unit, replace the key and red lock

screw (CDP-C89ES only) in its original hole and lock it in

place.

Re-install the red lock screw

1. Open the disc compartment by pressing the =
OPEN/CLOSE button.

2. Press the DISC SKIP button until disc tray 1 is at the
front.

3. Close the disc compenment by pressing the =
OPEN/CLOSE button.

4. Wait for the Q (DISC 1) indicator to blink before turning
the power off. Reinstall the transporting lock screw.

Red lock screw
(CDP-CSQES only)

MODEL IDENTIFICATION
- Specification Label -

CDP-C79ES
CDP-(SQES

SONY. mom Not Will/[IA
COMPACT DISC PLAYER

WW

US, Canadian model: AC: 120V 60Hz
AEP model: AC: 220-230V~50/60Hz
E model: AC: 110-120. 220-240V~50/60Hz 18W
